88
> Change from previous revision
IN OUT
LT
RT
HR-5111

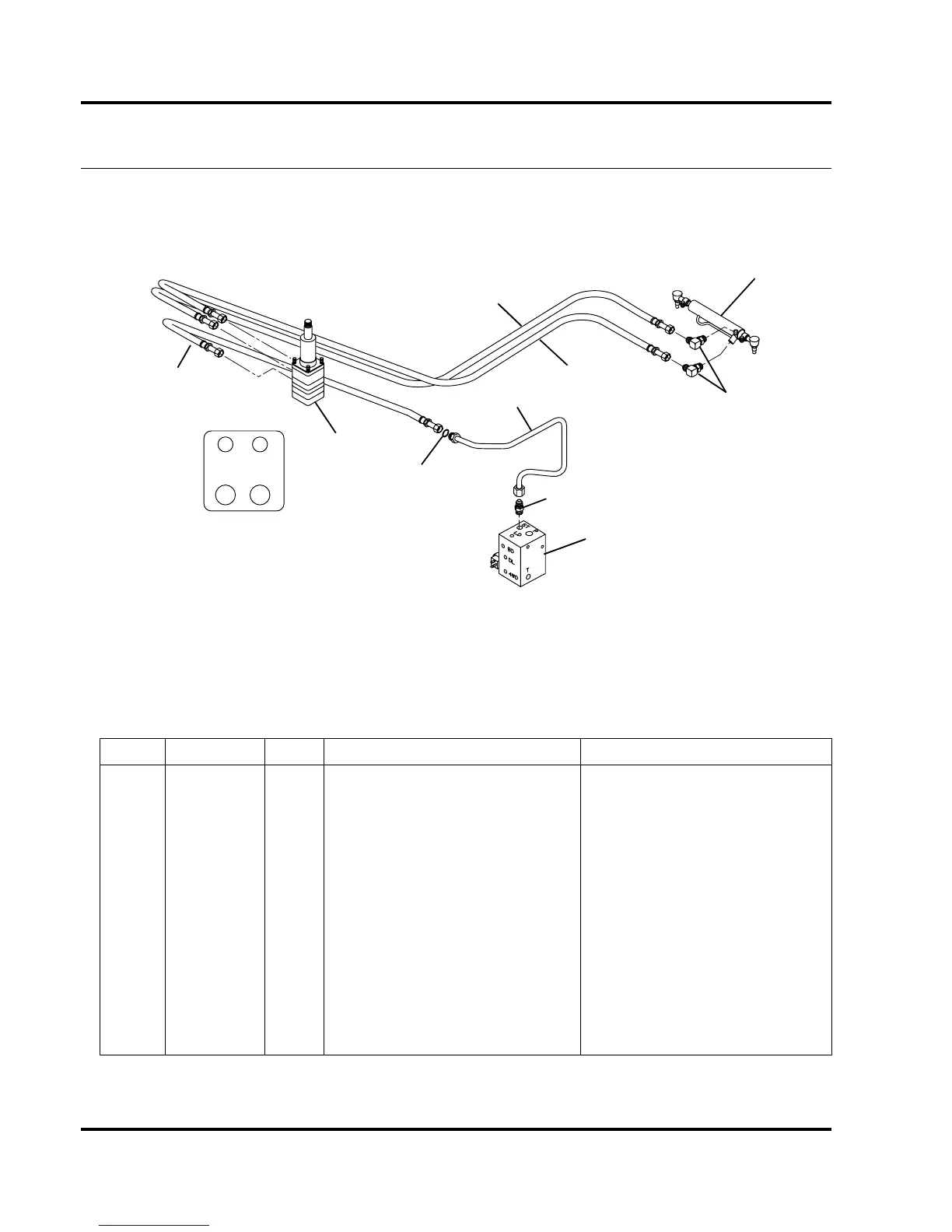

32.1 Steering Hydraulics
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
339984 1 Adapter, Straight
2 123223 1 Tube, Control Valve to Tube
3 339910 1 O-Ring
4 2692222-05 1 Hose, Tube to Steering Valve Steering Valve Port IN
5 340061 2 Adapter, 90°
132454 1 Steering Cylinder Hose Assembly
6 132452 1 Hose, Steering Valve to Cylinder Steering Valve Port LT, Base Port
7 132452 1 Hose, Steering Cylinder to Valve Steering Valve Port RT, Rod Port
1
2
3
4
5
6
7
Steering
Cylinder
Steering
Valve
Control
Valve
