117
> Change from previous revision
L1
L2
R1
R2
4WD
A
B
C
AD
BD
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
556897 1 Spool Valve
5003581 1 • Seal Kit
2 558038 1 Check Valve
5003581 1 • Seal Kit
3 556847 1 Solenoid Valve, 4WD Reverse
5003578 1 • Seal Kit, Solenoid Valve
4 556849 1 Coil
REFERENCE K16, See 67.1
5 2811253 1 Nut, Coil

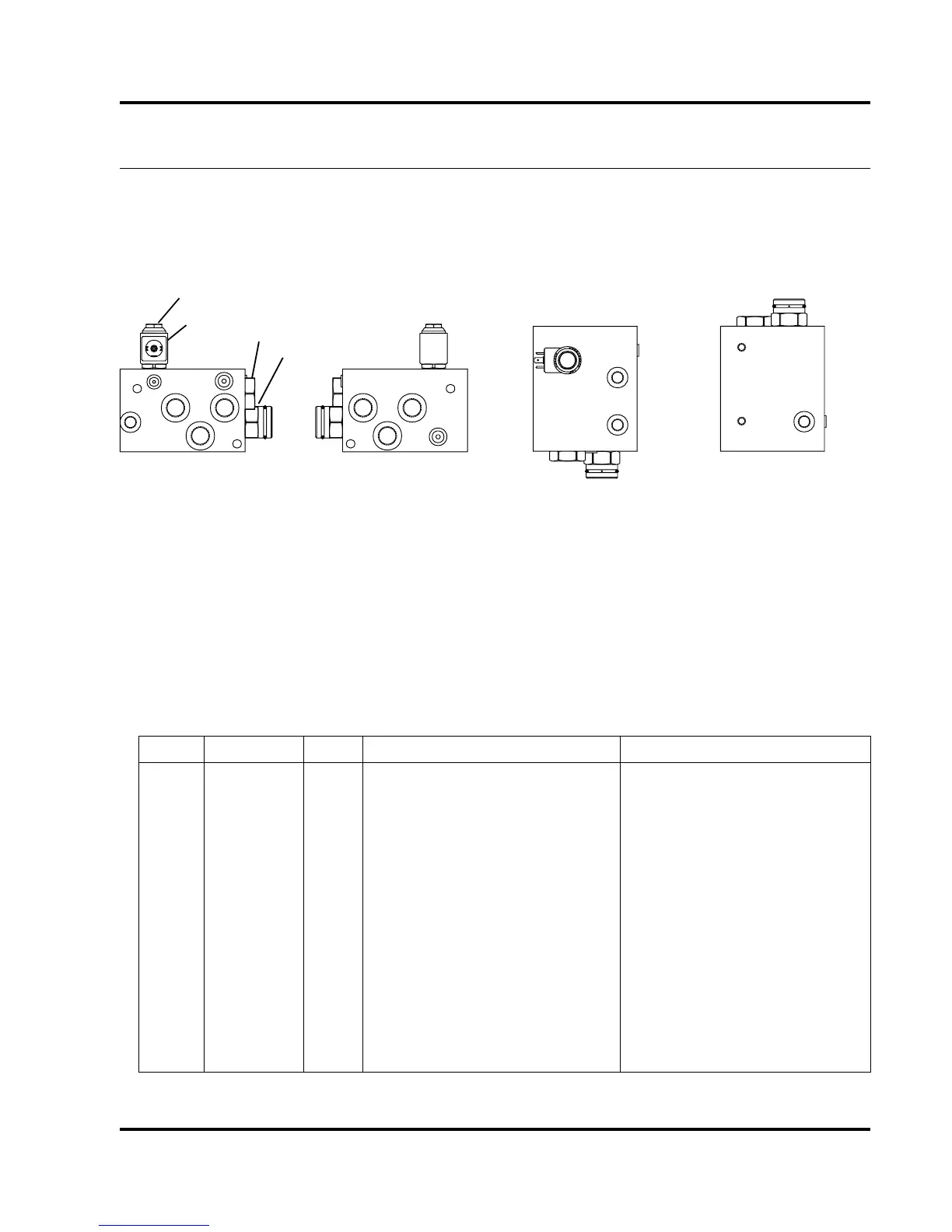

53.1 4WD Valve
Part Number 1003025
Serial No. 69116-5901 and Up
Viewed From LeftViewed From Right Viewed From Top Viewed FromBottom
1
2
3, 5
4
