Jacobsen HR 5111 Parts And Maintenance Manual

115
> Change from previous revision
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
5002620 1 Spring Kit
2 400186 1 Screw, 5/16-18 x 7/8” Hex Head
3 446136 1 Lockwasher, 5/16 Heavy
4 443106 1 Nut, 5/16-18 Hex
5 554718 4 Nut, Push
6 554717 2 Shaft, Pivot
7 554715 1 Knob, Spring Tension
8 554714 2 Bumper, Rear Downstop
9 554720 4 Bearing, Sleeve
10 554719 2 Spring, Extension
11 444762 1 Locknut, 3/8-16 Center
12 554716 1 Hanger, Spring
13 452010 1 Flat Washer, 7/16
N/S 1 Mounting Hardware Pack Not Shown, See 4.1

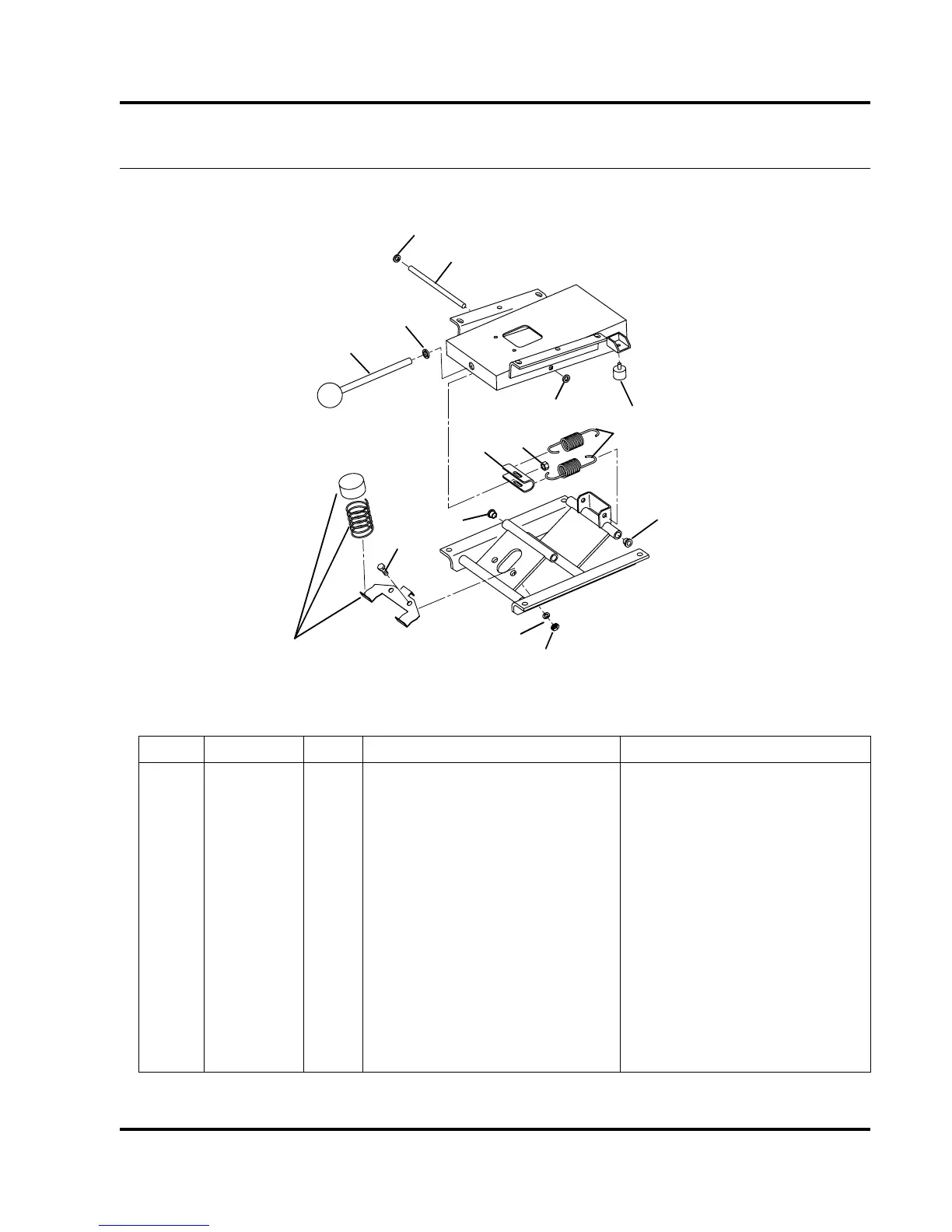

51.1 Seat Suspension
Part Number 66170
Serial No. 69116-5901 and Up
1
2
3
4
5
6
7
8
9
10
11
12
13
5
9
