HR-5111

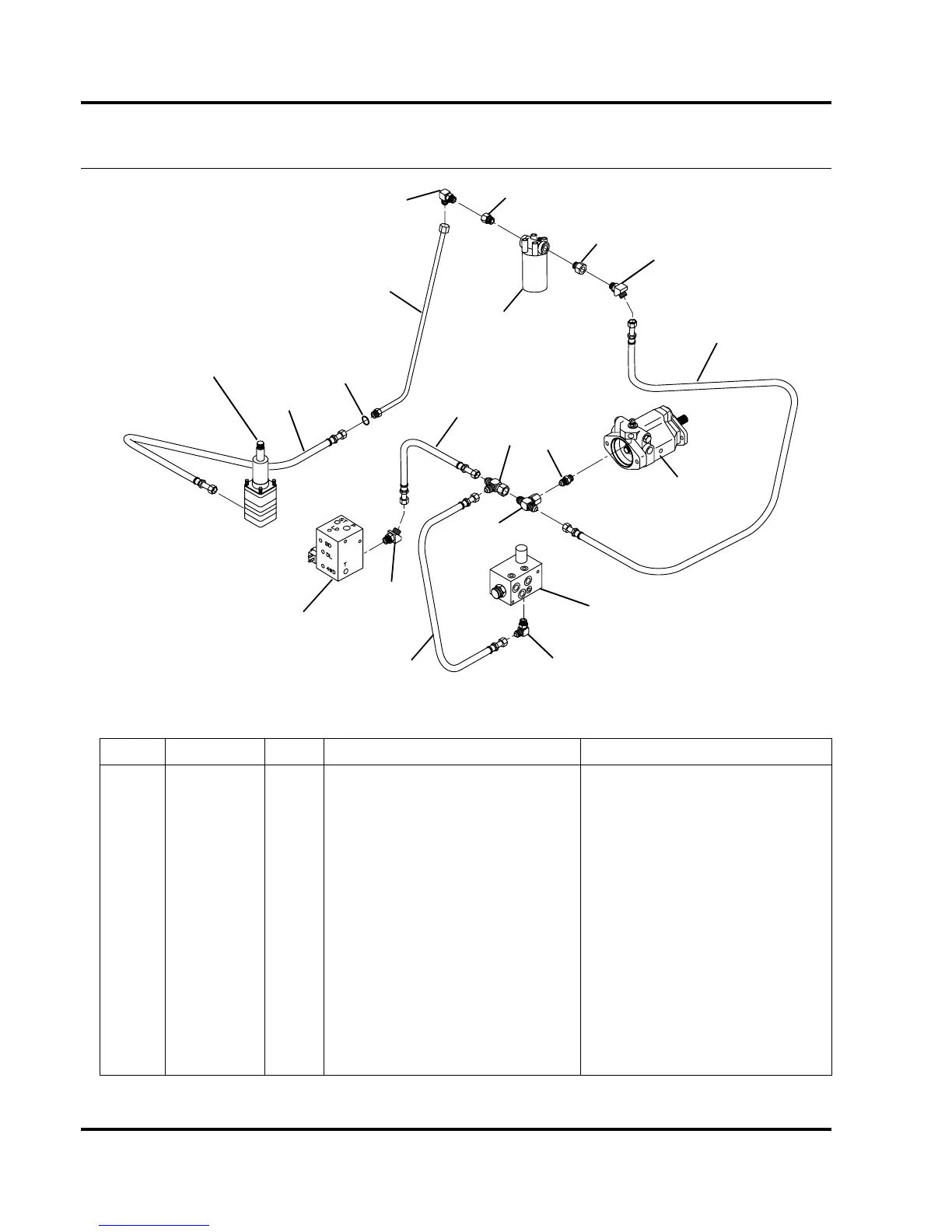

36.1 Charge Hydraulics
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
132540 1 Hose, Control Valve to Tee Control Valve Port F
2 340029 2 Adapter, 45°
3 340120 1 Adapter, Tee
4 132864 1 Hose, 4WD Valve to Tee 4WD Valve Port C
5 340061 1 Adapter, 90°
6 340144 1 Adapter, Tee
7 132486 1 Hose, Tee to Charge Filter
8 339984 1 Adapter, Straight
9 366430 2 Reducer
10 340066 1 Adapter, 90°
11 132535 1 Tube, Charge Filter
12 339910 1 O-Ring
13 132453 1 Hose, Steering Valve to Filter Tube Steering Valve Port OUT
1
2
3
4
5
6
7
8
9
10
11
12
13
Charge
Filter
Traction
Pump
4WD Valve
Control
Valve
Steering
Valve
2
9
To Next Page
