123
> Change from previous revision
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
554579 2 Spacer, Brake
2 503296 1 Stud Plate with Lining
3 503295 1 Rib Plate with Lining
4 549441 1 V-Plate
5 502517 1 Cam Lever, Brake
6 590259 2 Locknut, 3/8-24 Center
7 546131 2 Spring, Brake Return
8 590260 2 Screw, 3/8-24 x 2-1/4” Hex Head

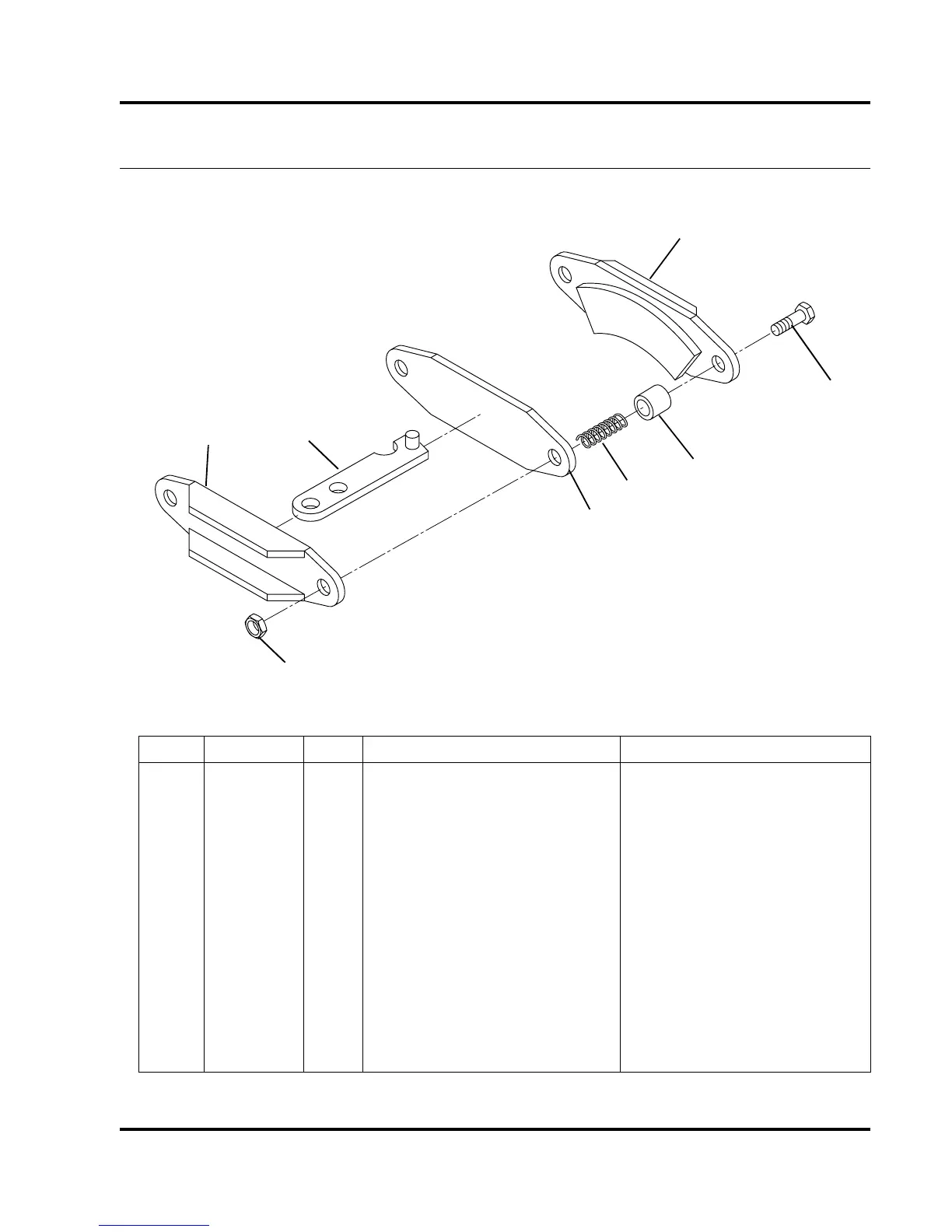

57.1 Parking Brake
503308
Serial No. 69116-5901 and Up
1
2
3
4
5
6
7
8
