HR-5111

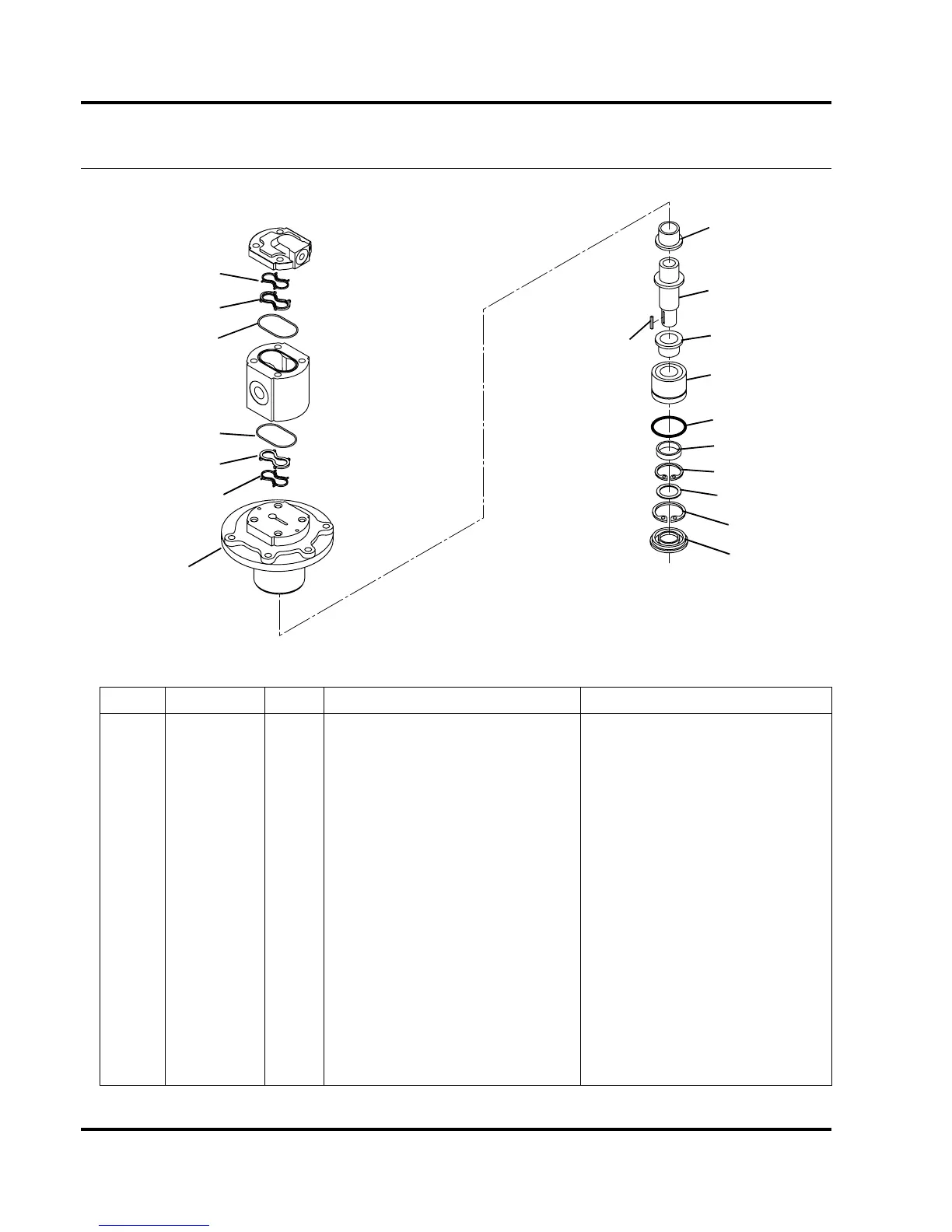

59.1 Deck Motor
Part Numbers 2721180 and 2721181
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
557515 1 Spindle
● 2N/S1O-RIng
● 3 N/S 2 Back Up Seal
● 4 N/S 2 Bushing Seal
5 557518 1 Shaft, Spindle
● 6 557520 1 Snap RIng, Large
● 7 557521 1 Snap RIng, Small
● 8 557376 1 Guard, Motor Shaft
9 557523 1 Key, Shaft
● 10 557517 1 Washer, Support
5002714 1 O-RIng Seal Kit
● 11 5002716 1 • O-RIng
● 12 5002715 1 • Seal
557522 1 Bearing, Spindle
● 13 5002718 1 • Bearing
● 14 5002717 2 • Flanged Bushing
● 557519 1 Seal Kit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
14
