122
> Change from previous revision
HR-5111

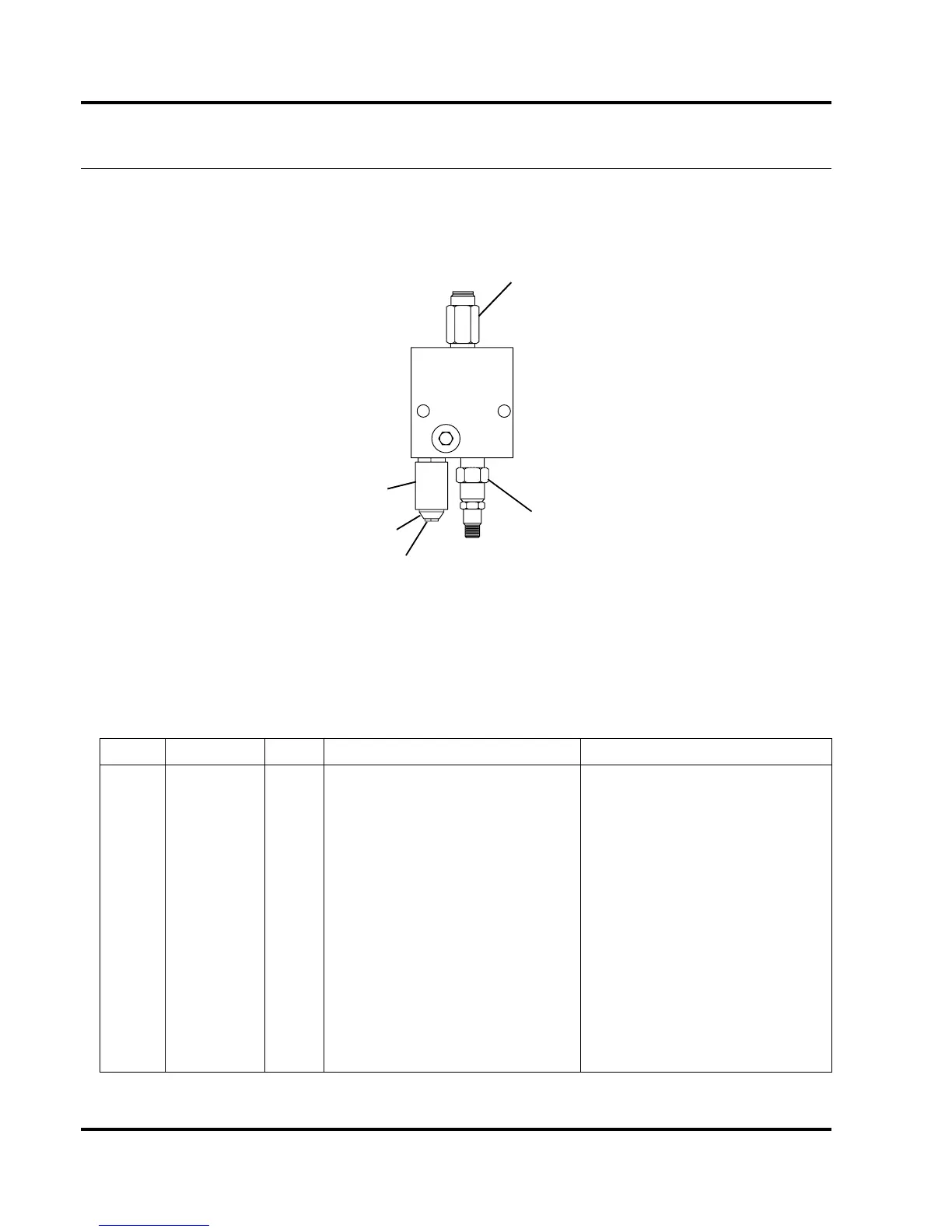

56.1 Deck Valve
Part Number 1002499
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
5002911 1 Relief Valve, 3000 psi
5003579 1 • Seal Kit, Relief Valve
2 5002912 1 Relief Valve, 430 psi
5003554 1 • Seal Kit, Relief Valve
3 5002913 1 Solenoid Valve
5003579 1 • Seal Kit
4 5001354 1 Coil
REFERENCE K10, K11, K12, See
67.1
5 2811269 1 Nut, Coil
1
2
3
4
5
