94
> Change from previous revision
HR-5111

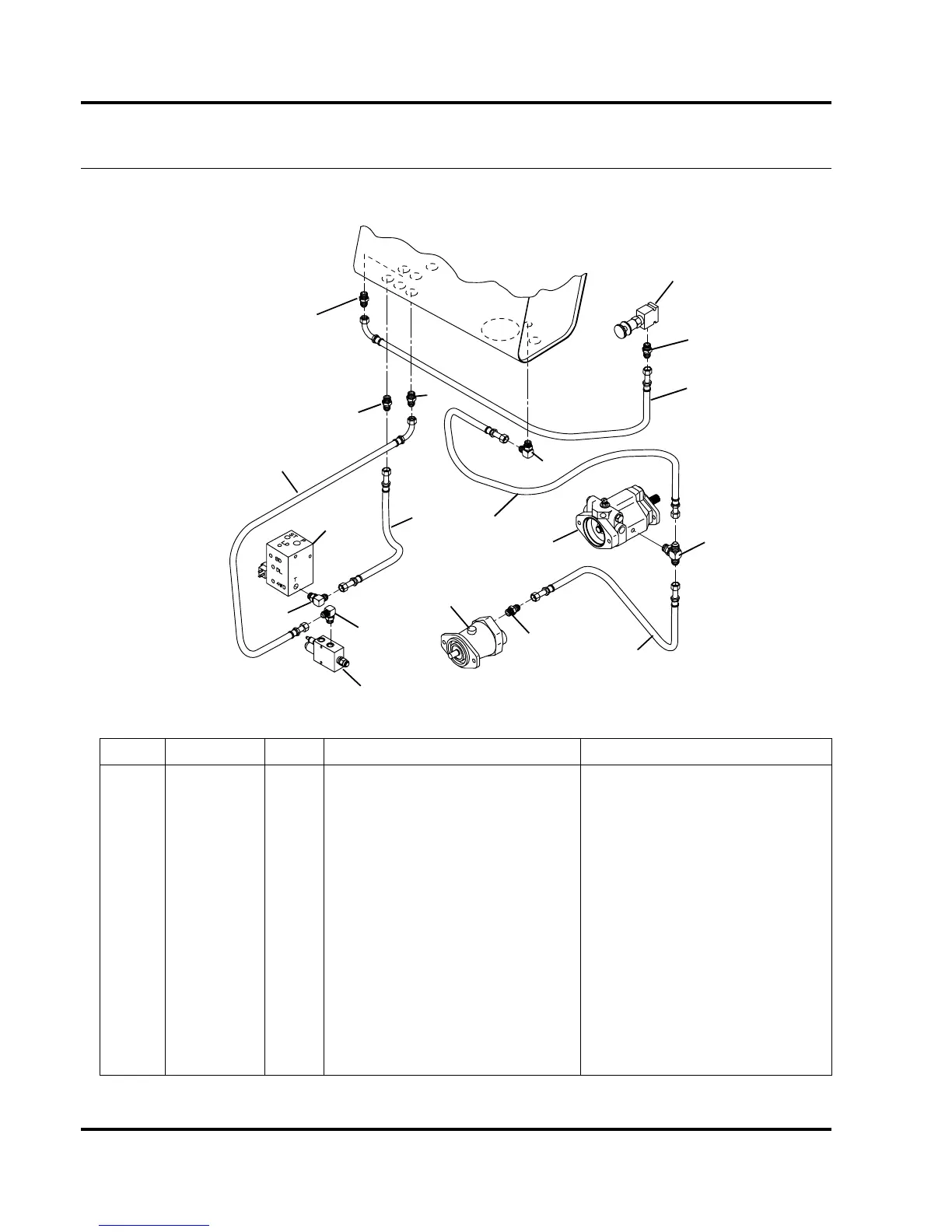

38.1 Return Hydraulics
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
351124 2 Adapter, Straight
2 358949 1 Adapter, 90°
3 357613 1 Adapter, Striaght
4 132866 1 Hose, Backpressure Valve to Tank
5 351108 1 Adapter, Straight
6 132579 1 Hose, Control Valve to Tank
7 340066 1 Adapter, 90°
8 132580 1 Hose, Right Deck Valve to Tank
9 354065 1 Adapter, 90°
10 132528 1 Hose, Traction Pump to Tank
11 362446 1 Adapter, Tee
12 132527 1 Hose, Axle Motor to Traction Pump
13 351109 1 Adapter, Straight
2
3
4
5
6
7
8
9
10
11
12
13
Traction
Pump
Front Axle
Motor
Control
Valve
Right Wing
Deck Valve
Backpressure
Valve
Hydraulic
Tank
1
1
