Jacobsen HR 5111 Parts And Maintenance Manual

89
> Change from previous revision
IN
OUT
B
D
F
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
340066 2 Adapter, 90°
2 123222 1 Tube, Control Valve to Lift Valve Lift Valve Port IN
3 339984 2 Adapter, Straight
4 132571 1 Hose, Lift Valve to Front Cylinders Lift Valve Port D
5 132571 1 Hose, Lift Valve to Left Cylinder Lift Valve Port F
6 132573 1 Hose, Lift Valve to Right Cylinder Lift Valve Port B
7 132867 1 Hose, Lift to Backpressure Valve Lift Valve Port OUT
8 340119 1 Adapter, Tee
9 340003 2 Adapter, Straight
10 132559 1 Hose, Cylinder to Cylinder
11 340078 2 Adapter, 90°
12 339979 3 Adapter, Straight

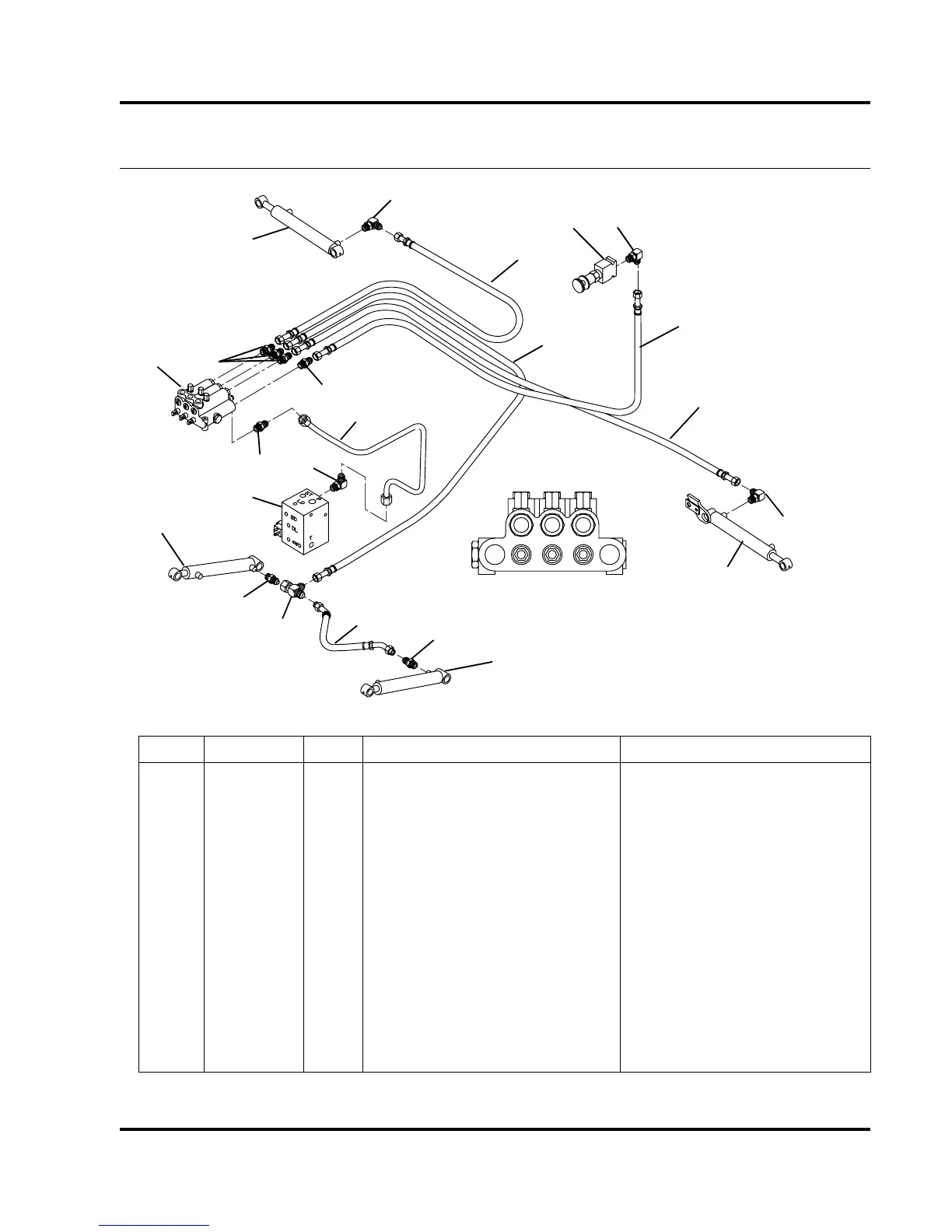

33.1 Lift Hydraulics
Serial No. 69116-5901 and Up
1
2
3
4
5
6
7
8
9
10
11
12
Right Wing
Cylinder
Left Wing
Cylinder
Right Front
Cylinder
Left Front
Cylinder
Lift Valve
Control
Valve
Backpressure
Valve
1
3
9
11
