HR-5111
52.1 Control Valve
Part Number 1004555
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
5003150 1 Relief Valve, 115 psi
555861 1 • Seal Kit, Relief Valve
2 556845 1 Priority Valve, 4.5 GPM
556856 1 • Seal Kit, Priority Valve
3 556847 1 Solenoid Valve, Differential Lock
556858 1 • Seal Kit, Solenoid Valve
4 556847 1 Solenoid Valve, 4WD
556858 1 • Seal Kit, Solenoid Valve
5 556849 1 Coil, Differential Lock
REFERENCE K13, See 67.1
6 556849 1 Coil, 4WD
REFERENCE K14, See 67.1
7 2811253 2 Nut, Coil

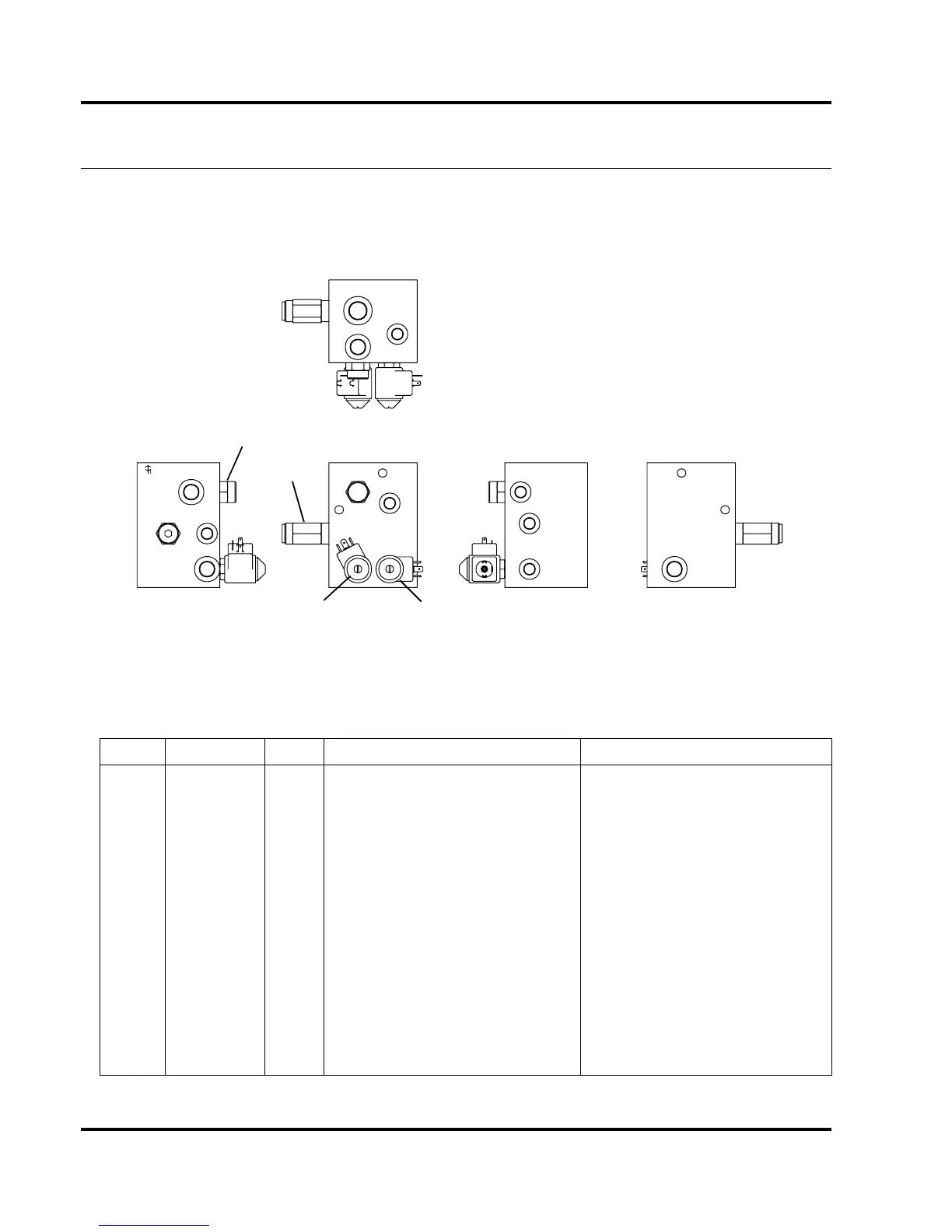

Viewed From Front Viewed From LeftViewed From RightViewed From Rear
Viewed From Top
1
2
3, 5, 7 4, 6, 7
