Jacobsen HR 5111 Parts And Maintenance Manual

93
> Change from previous revision
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
340070 1 Adapter, 90°
2 2692224-07 1 Hose, Front to Left Wing Deck Valve
3 2720559 1 Adapter, Tee
4 132441 1 Hose, Left Valve to Oil Cooler
5 340077 2 Adapter, 90°
6 1003705 1 Hose, Oil Cooler to Return Filter
7 340089 1 Adapter, 90°
8 163917 1 Adapter, Beaded
9 365967 1 Hose, Return Filter to Tank
10 326112 2 Clamp, Hose

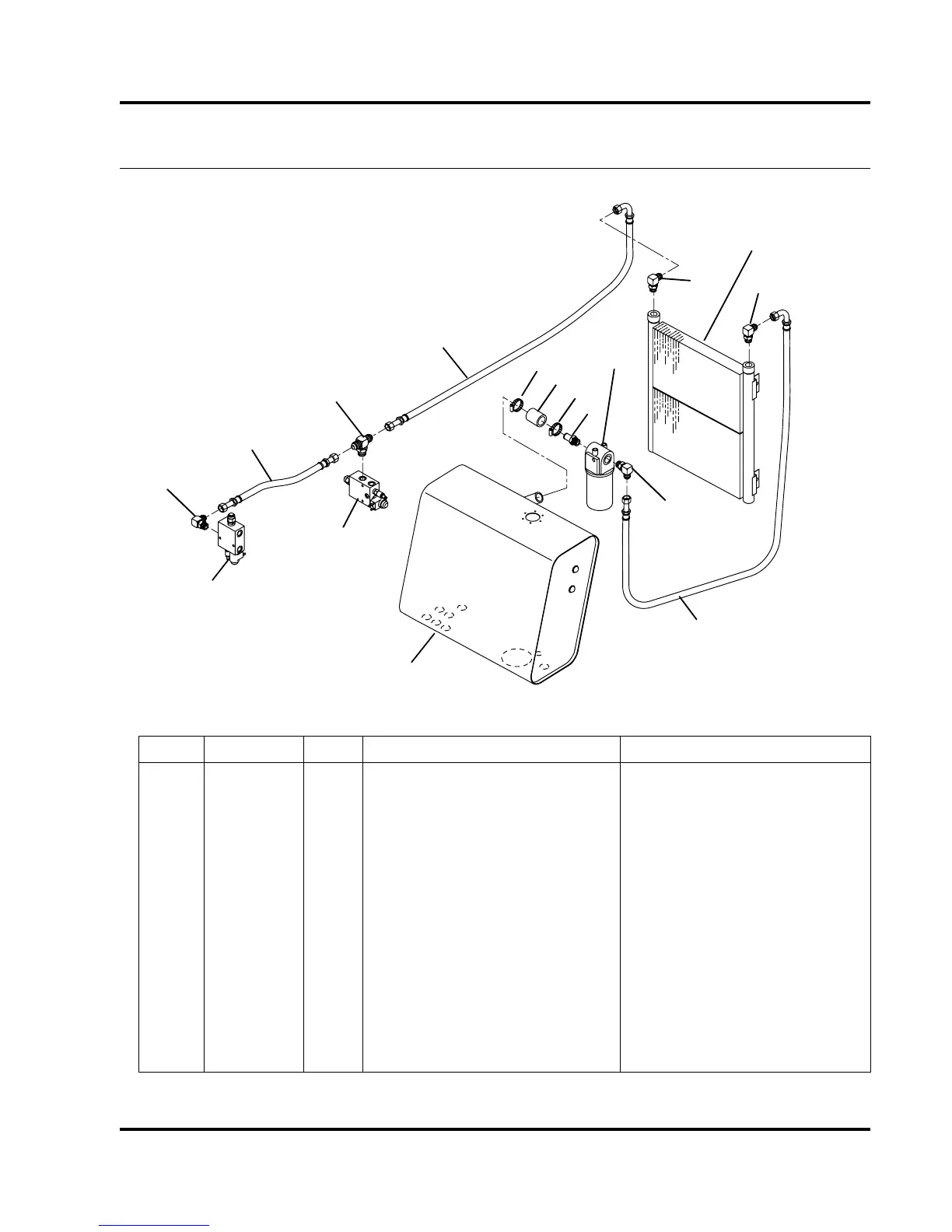

37.1 Oil Cooler Hydraulics
Serial No. 69116-5901 and Up
1
2
3
4
5
6
7
8
9
10
Front
Deck
Valve
Left Wing
Deck
Valve
Hydraulic
Tank
Return
Filter
Oil
Cooler
5
10
