Jacobsen HR 5111 Parts And Maintenance Manual

90
> Change from previous revision
HR-5111

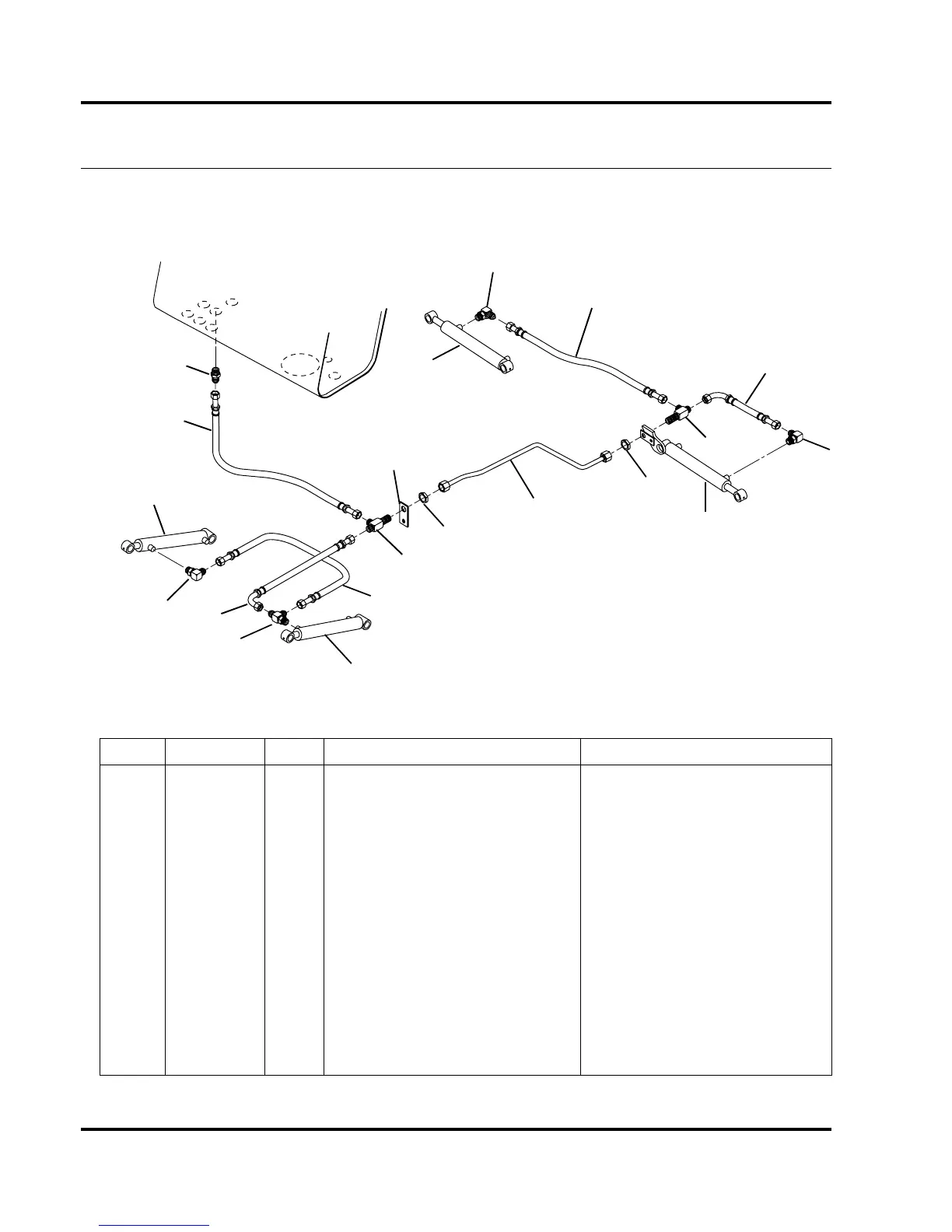

34.1 Lift Return Hydraulics
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
340061 3 Adapter, 90°
2 132573 1 Hose, Cylinder to Cylinder
3 340263 1 Adapter, Tee
4 132570 1 Hose, Front Cylinder to Bulkhead
5 340215 2 Adapter, Bulkhead Tee
6 339961 2 • Nut, Bulkhead
7 2500117 1 Tube, Bulkhead
8 132569 1 Hose, Left Cylinder to Bulkhead
9 132568 1 Hose, Right Cylinder to Bulkhead
10 132583 1 Hose, Tee to Tank
11 351124 1 Adapter, Straight
12 REF 1 Bracket, Bulkhead See 15.1
1
2
3
4
5
6
7
8
9
10
11
12
Front Left
Cylinder
Front Right
Cylinder
Left Wing
Cylinder
Right Wing
Cylinder
Hydraulic
Tank
6
5
1
1
