114
> Change from previous revision
HR-5111

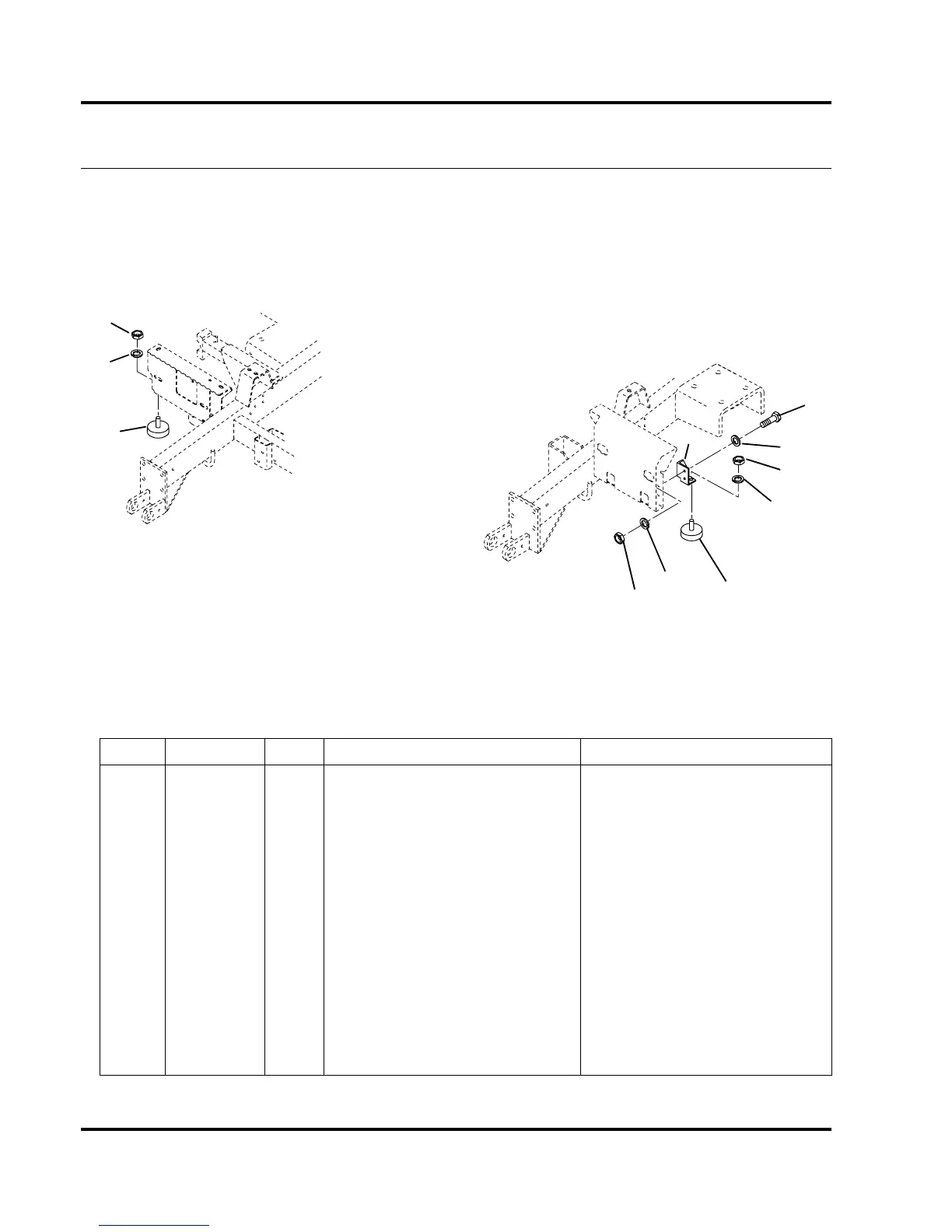

50.1 Deck Bumper
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
3003427 1 Bracket, Deck Bumper
2 400262 2 Screw, 3/8-16 x 1” Hex Head
3 453011 2 Flat Washer, 3/8
4 446142 4 Lockwasher, 3/8 Heavy
5 443110 4 Nut, 3/8-16 Hex
6 361723 2 Stop, Rubber
1
2
3
4
5
6
6
5
5
4
4
