Jacobsen HR 5111 Parts And Maintenance Manual

127
> Change from previous revision
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
557423 1 Backplate Assembly
2 557424 1 Camplate Insert
3 557425 1 Thrust Bearing
4 557426 2 Thrust Race
5 557427 1 Housing
6 557428 1 Drive Shaft
7 557429 1 Rotating Kit
8 554756 1 Key, 1/4 x 1/4 x 31/32”
● 9 N/S 1 Shaft Seal
● 10 N/S 2 Retaining Ring, 1-1/8” External
● 11 N/S 1 Retaining RIng, 2” Internal
12 557430 1 Washer
13 557431 6 Screw, 5/16-18 x 1-1/2” Hex Head
● 14 N/S 1 O-RIng, 3/32 x 4” I.D.
● 557432 1 Seal Kit

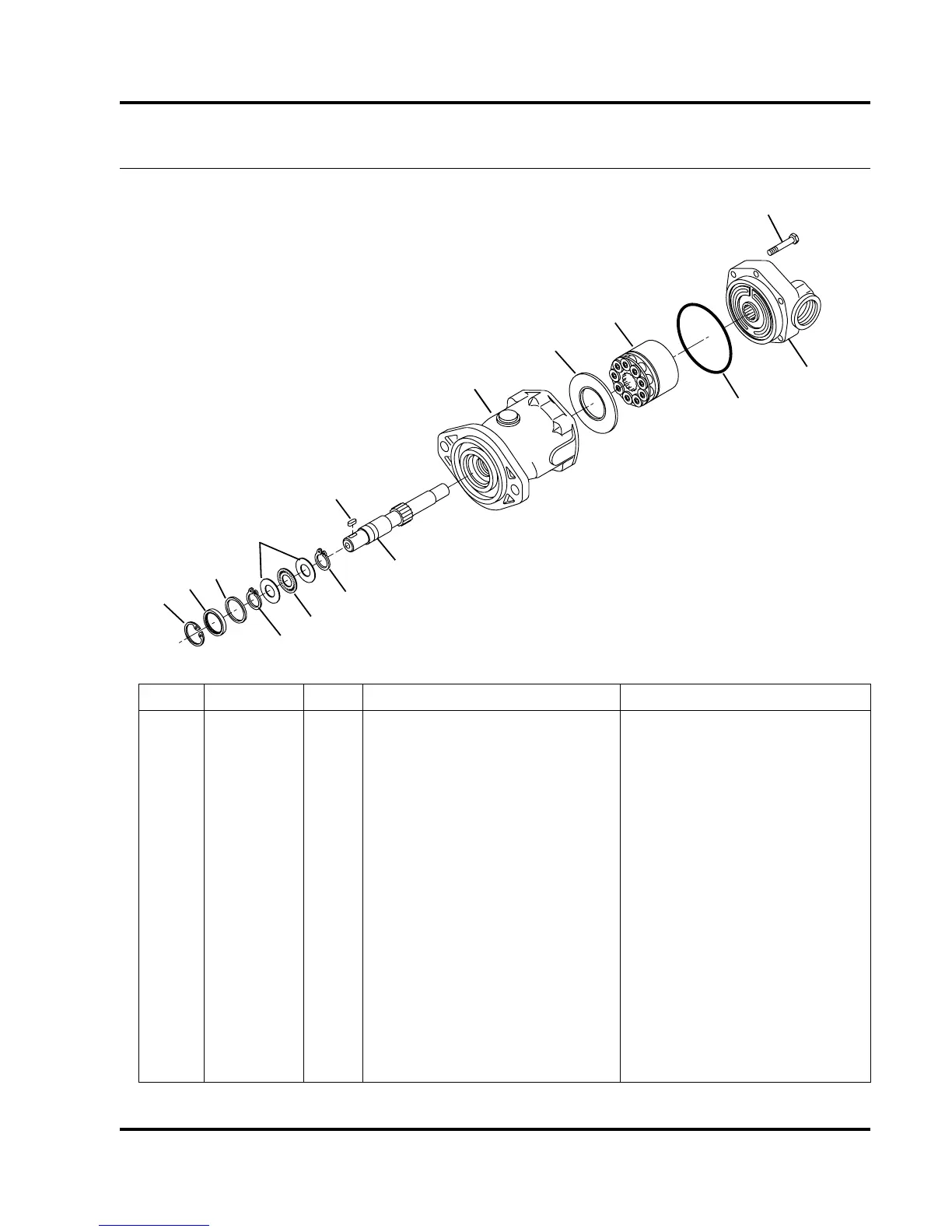

60.1 Front Axle Motor
Part Number 117075
Serial No. 69116-5901 and Up
1
2
3
4
5
6
7
8
9
10
11
12
13
14
10

Jacobsen HR 5111 Specifications

General

Brand	Jacobsen
Model	HR 5111
Category	Lawn Mower
Language	English
