Jacobsen HR 5111 Parts And Maintenance Manual

142
> Change from previous revision
THIS TRACTOR MAY TIP
OVER UNEXPECTEDLY
AND QUICKER THAN AN
OPERATOR IS ABLE TO
JUMP FREE.
1. NEVER OPERATE A TRACTOR WITHOUT
PROPER ROLL PROTECTION (SEE MANUAL)
2. ALWAYS WEAR YOU SEAT BELT WHEN
OPERATING THIS TRACTOR EQUIPPED
WITH ROLL PROTECTION.
3. NEVER HITCH ABOVE OR TO THE REAR
AXLE.
4. DO NOT OPERATE TRACTOR ON STEEP
SLOPES OR NEAR DROP-OFFS.
5. AVOID SHARP HIGH SPEED TURNS.
Serious injury or death
may result because of
tractor upsets.
!
DANGER

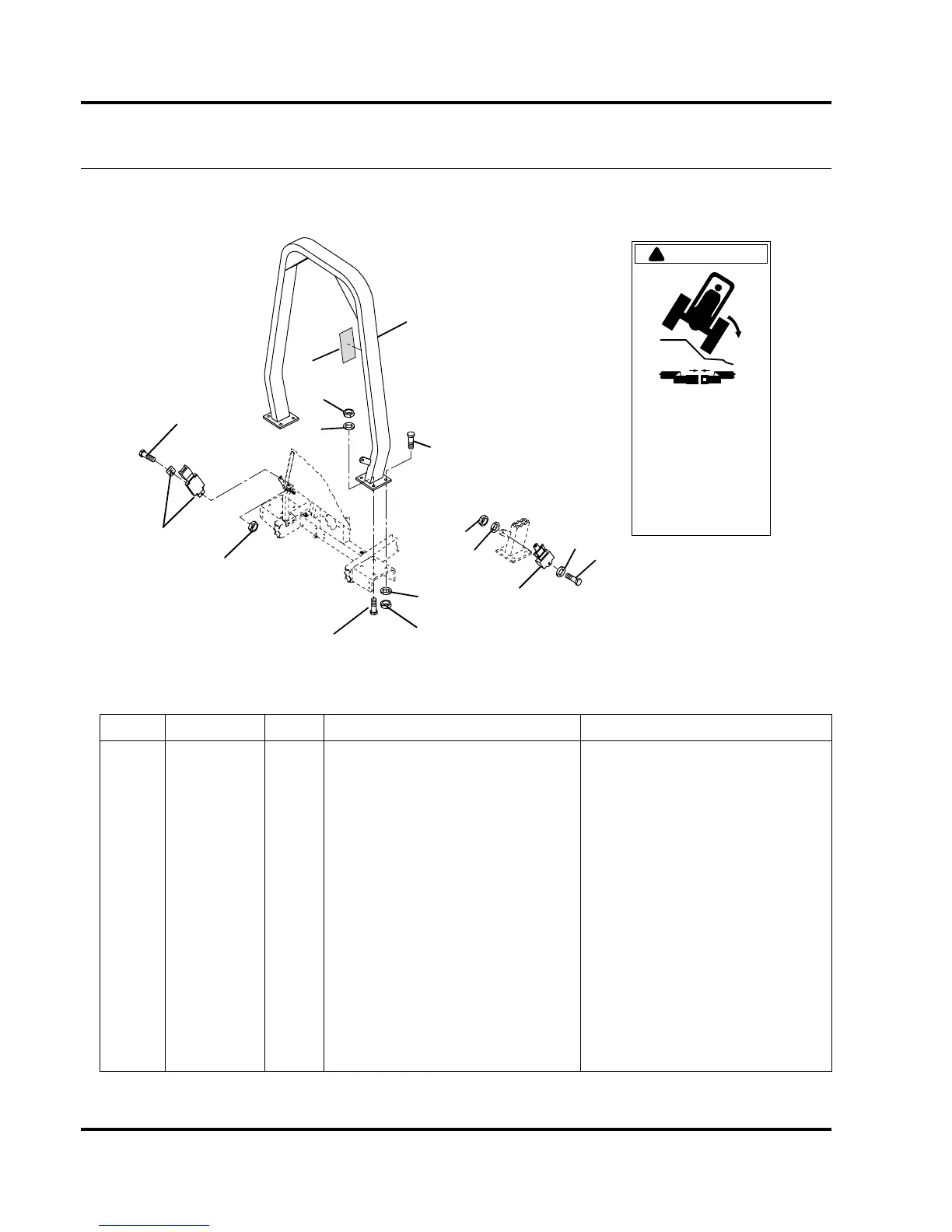

HR-5111
• R.O.P.S
Units Without Cab
Serial No. 69116 All
Item Part No. Qty. Description Serial Numbers/Notes
1
503641 1 R.O.P.S
2 452010 1 • Flat Washer, 7/16
3 444762 1 • Locknut, 3/8-16 Hex
4 555891 1 • Decal, Danger
5 400262 1 • Screw, 3/8-16 x 1” Hex Head
6 443114 1 • Nut, 7/16-14 Hex
7 400336 1 • Screw, 7/16-14 x 1-1/4” Hex Head
8 446148 1 • Lockwasher, 7/16 Heavy
9 555892 1 • Seat Belt
10 443126 8 • Nut, 5/8-11 Hex
11 446166 8 • Lockwasher, 5/8 Heavy
12 400616 8 • Screw, 5/8-11 x 2” Hex Head
1
2
3
4
5
6
7
8
9
10
11
12
4
9
10
11
12
