UniSAB III control
1.2.2 Display

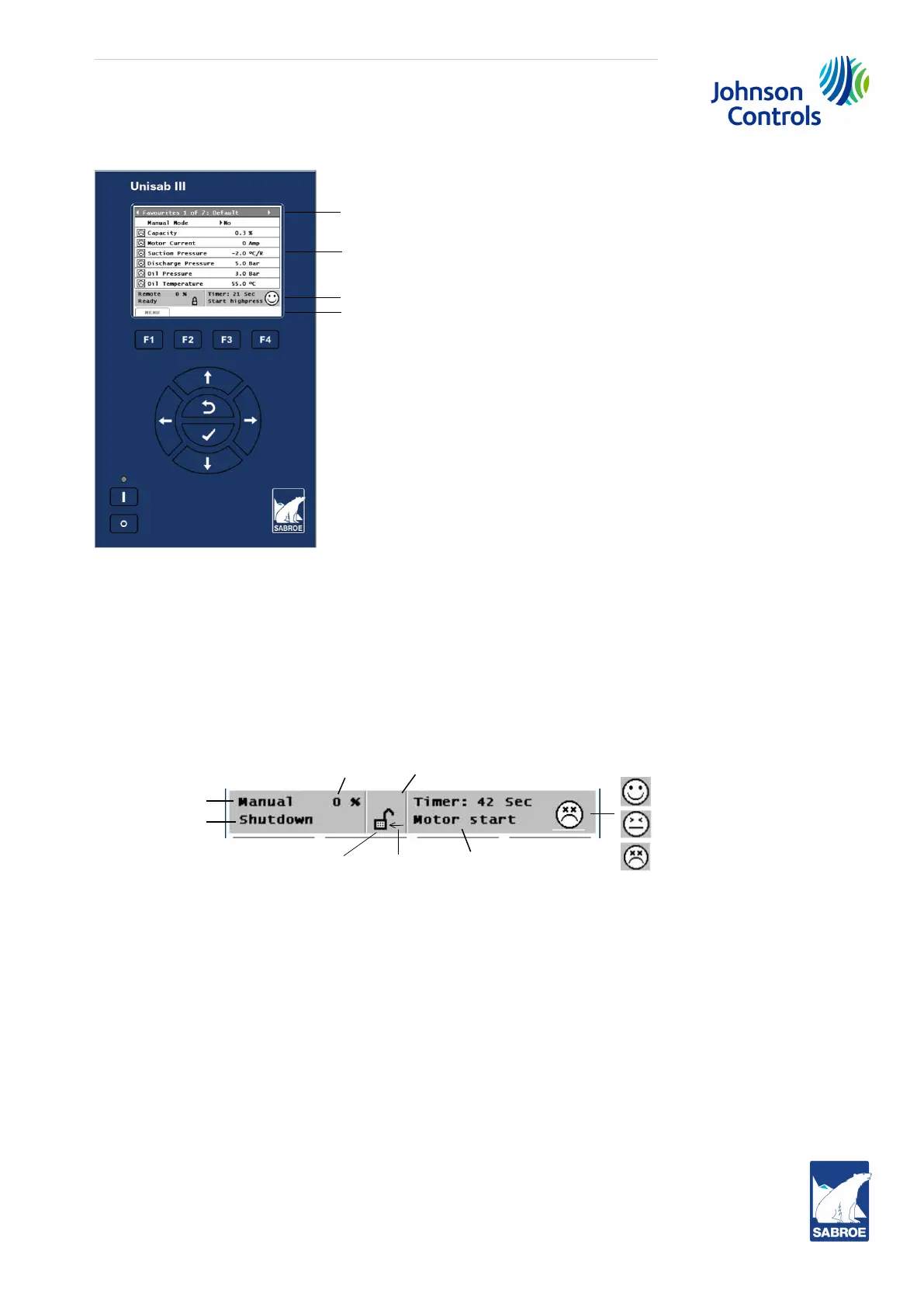

Fig. 3: UniSAB III front
Display
The display has a background illumination with screen saver function. It consists of a top bar with navi-
gation information, a content area with 7-11 lines of information, an info bar with mode and status infor-
mation and an F-key area with information about the active function keys. Pressure levels,
temperatures, set points as well as alarm and shutdown limits can be read in the display. The contrast is
factory set but may be adjusted, if required. See subsection Contrast (display) in the Engineering
manual.
Fig. 4: Info bar in UniSAB III display
Top bar
Content area
Info bar
F-key area
Remote
connection
Compressor mode
Compressor status
Password
security
Information about
active timer
Compressor no.
(if remote connected)
Actual
capacity
1
“Smiley” status:
OK
Alarm
Shutdown
