Alarms and shutdowns
2.1.8 Oil pressure calculations

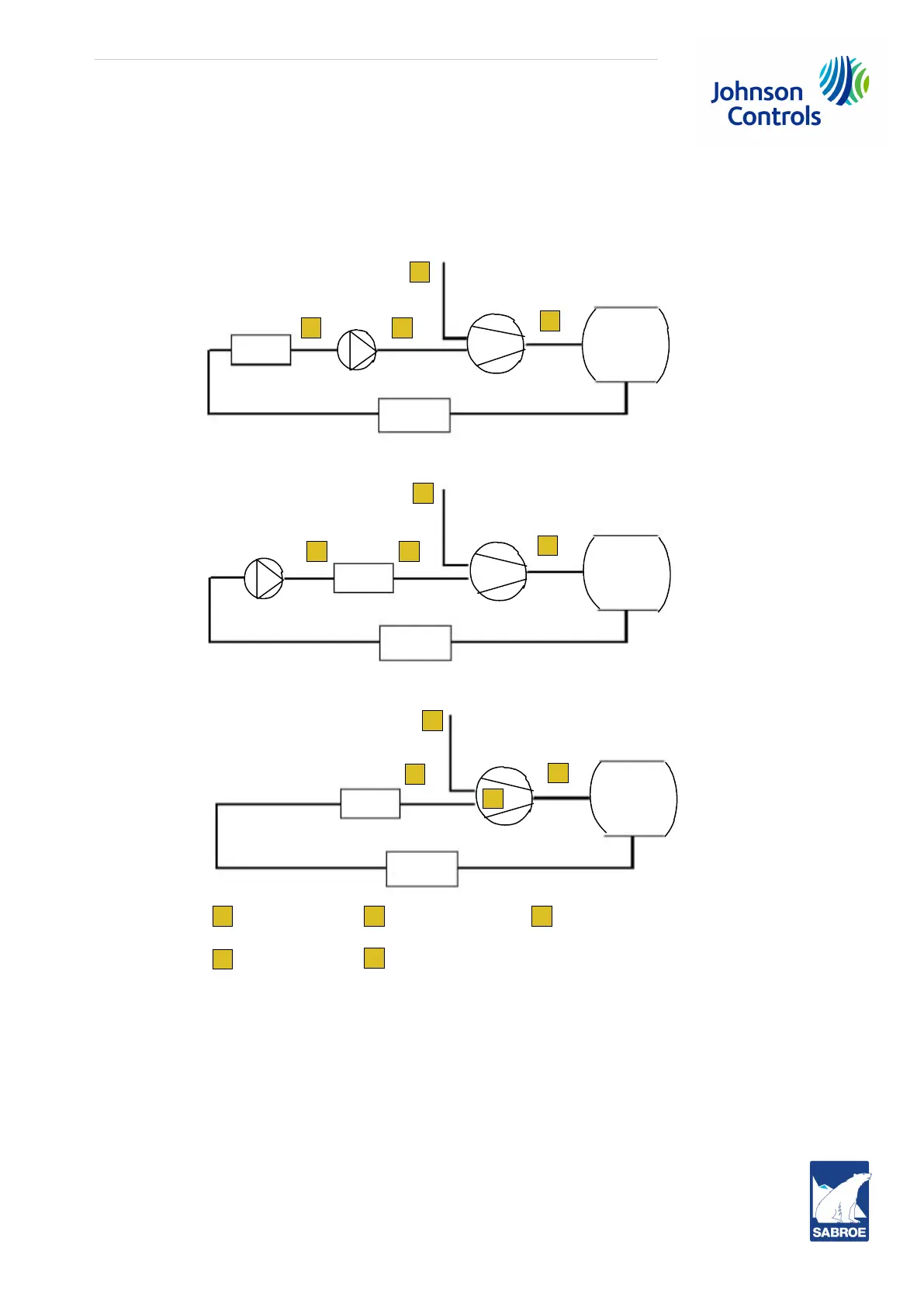

Fig. 6: Oil pressure calculations
Oil filter
Oil cooler
Oil separator
Oil filter
4 3
1
2
Compressor
Oil pump
SAB 80
Others
SABflex and SABCube
Oil pump
Compressor
Oil separator
Oil cooler
Oil filter
Oil cooler
Compressor
Oil separator
4 3
1
2
3
1
2
1a
1
2
Suction pressure
Discharge pressure
1a
3
4
Internal suction pressure
(SABflex and SABCube)
Oil pressure
(before compressor)
Oil pressure
(before oil filter)
(before oil pump - SAB 80)
