Engineering manual - UniSAB III 1.10.8
308/346
001930 en 2021.06
Troubleshooting
9.2 Troubleshooting diagrams
If irregularities occur in connection with compressor operation, the problem can be located by using the
following troubleshooting diagrams:

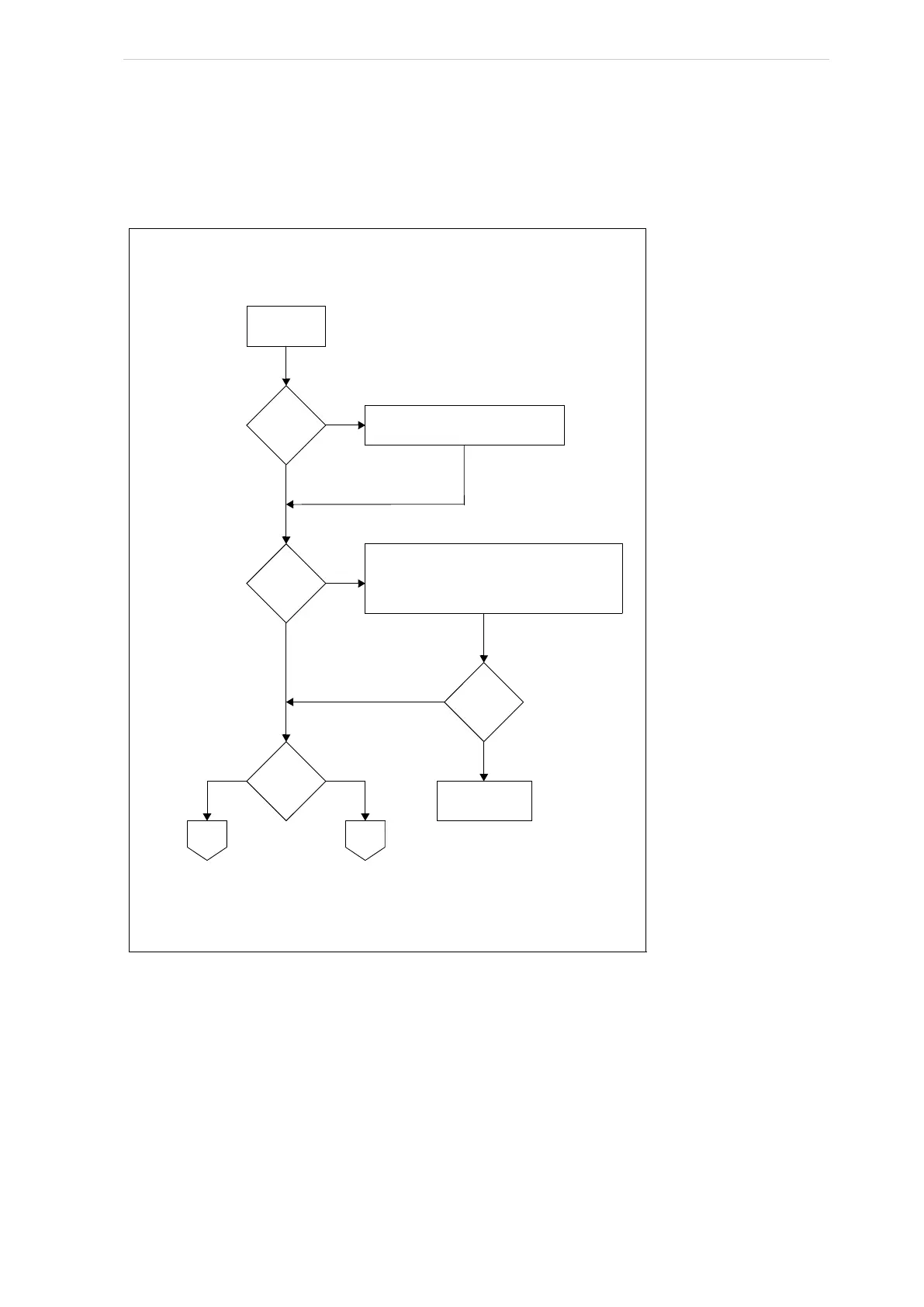

Fig. 53: Error diagram no. 1
Starting reciprocating/screw co mpressor in MANUAL operating mode
Does it say
Manual in the
info bar in
Unisab III
display?
Manual
operation
Select picture Setup/Compr. Ctrl/Mode
and adjust to Manual.
Display
=
Ready
Check that input Ext. start instant stop, terminals
(X3/13-14), is closed. Can also be checked in pic-
ture Service/Diagnosis/Hardware/Digital input/Ext.
start-inst.stop=1 .
Display
=
Ready
Prelubrication
Contact Johnson
Controls Denmark
No
Yes
No
Yes
21
ScrewRecipr./screw
No
No
Yes
Yes
