Service
5.1.5 Trend information
UniSAB III provides the possibility to log Trend data for export by e-mail to the remote monitoring server.

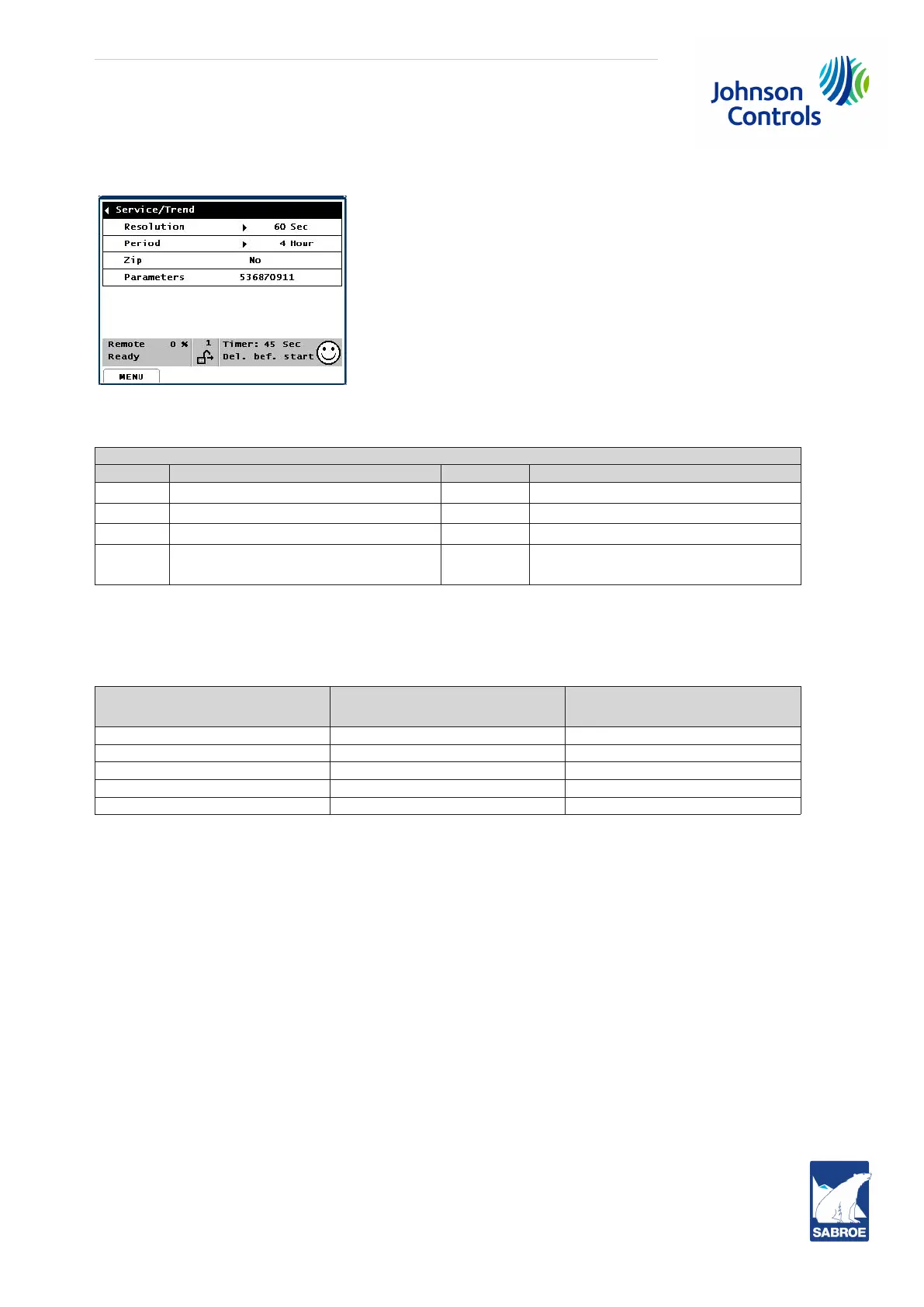

Set-up for Trend files logging and handling is made in this picture.
Service/Trend
No. Function Use
Choices
1 Resolution (trend log resolution) 1/2 180, [30-300]
2 Period (time between trend mails) 1/2 4, [1-24]
3
Zip (zip the trend file attachment) 1/2
No, Yes
4
Parameter list
(bit map for parameter list)
1/2
4.294.967.295
10
(~ FFFF FFFF
hex
~ bit map = 32)
Note: The Zip function is implemented from version 1.0.9.6.
Note that the memory constraint in UniSAB III will set a limit of maximum 500 data log per trend e-mail.
Depending on the set resolution the period setting must be limited as shown in Table 36.
Resolution
[Sec.]
Period [Hours]
Max. allowable setting
Max. data logs
per trend e-mail
30 4 480
60 8 480
90 12 480
180 24 480
300 24 288
Table 36
