Johnson Controls SABROE UniSAB III User Manual

Engineering manual - UniSAB III 1.10.8
001930 en 2021.06
173/346
Service
Last e-mail status
See subsection 5.1.4 Remote monitoring for explanation.
5.2 Diagnosis
In the diagnosis menu you can troubleshoot both hardware and software.
5.2.1 Hardware

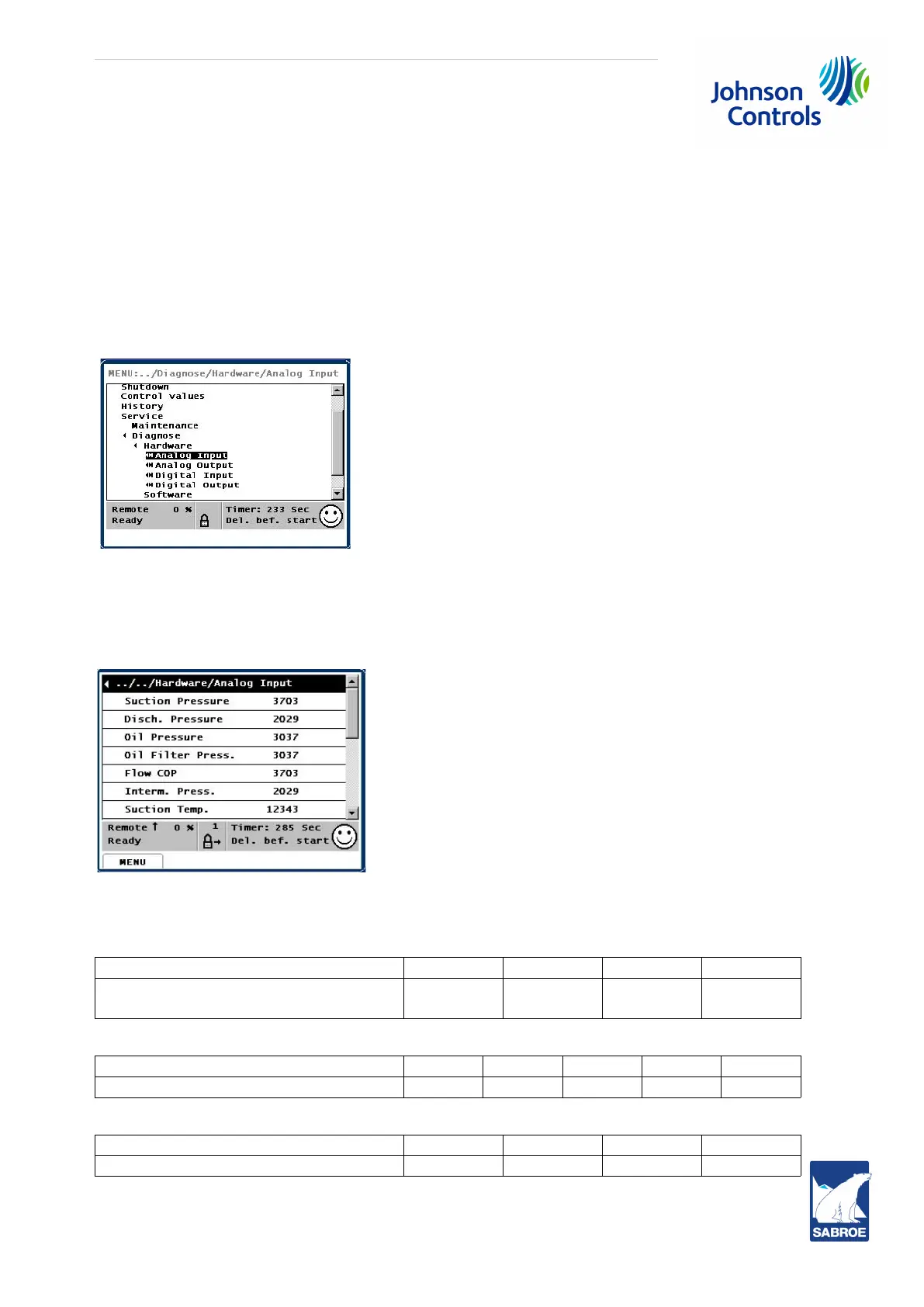

When selecting the menu Diagnosis/Hardware, the following picture appears:
Analogue inputs (Pressures, temperatures, current)
This picture shows the actual state of the analogue inputs both at compressor standstill and during
operation:
It is 10 or 13 bit A/D-converted raw values of the input signal which are displayed. The displayed raw val-
ues are interpreted in the following way:
Reading 0
755
4033 7310
Input from pressure transmitter
(4-20 mA)
0 4 12 20
Table 37: Pressure
Reading 14,760 18,370 21,950 25,550 29,040
Temperture (°C) -50 0 50 100 150
Table 38: Pt100
Reading 0 1633 4910 8183
Input (mA)
0 4 12 20
Table 39: Ext. cap. Vi
