Set-up
6.5 Timers
6.5.1 Introduction

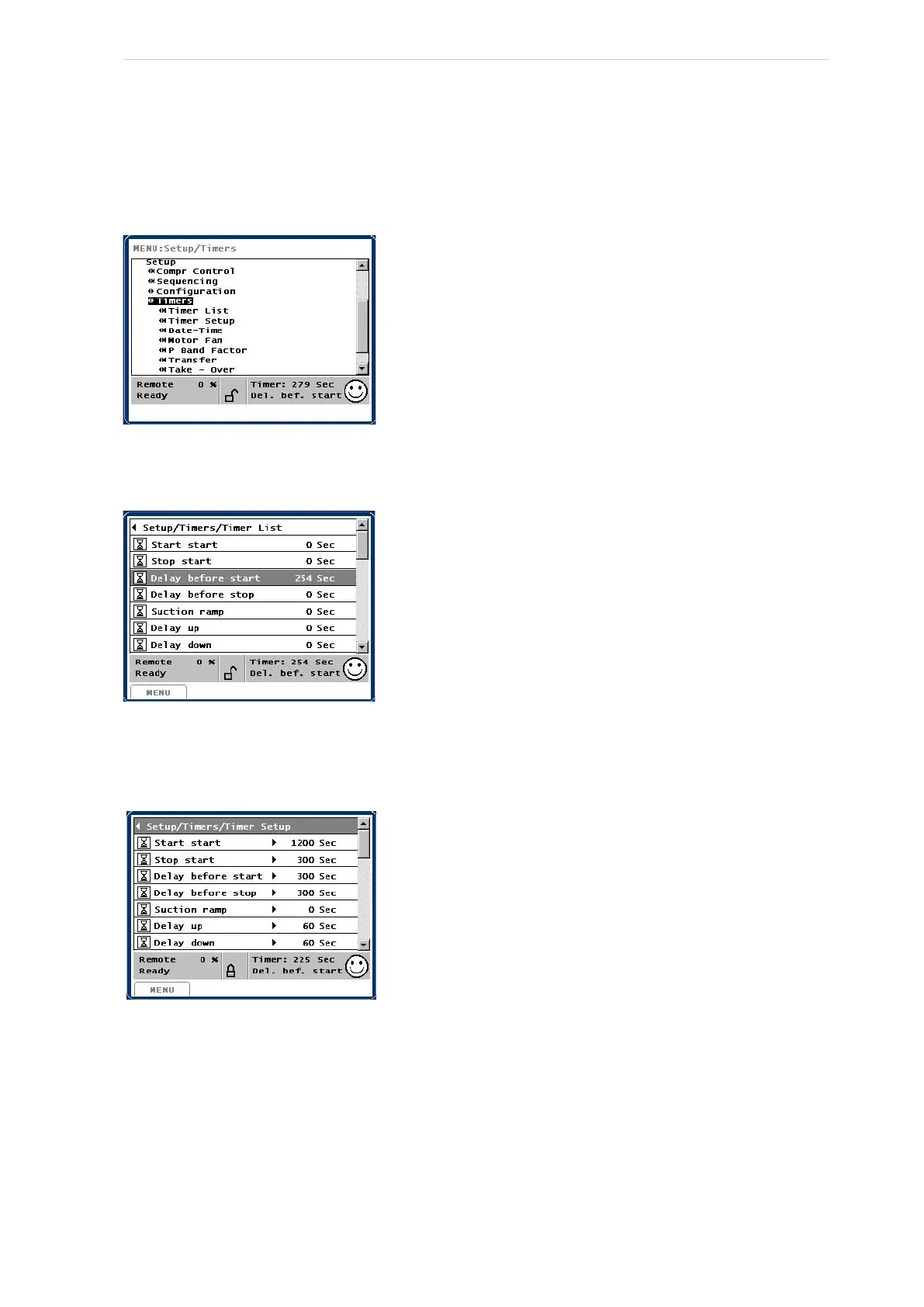

UniSAB III has a number of timer functions in the Setup/timers menu.
6.5.2 Timer list
This picture includes all timers and indicates which ones are active (counting down).
6.5.3 Timer set-up
In this picture the timer values can be changed. All timers and their functions are listed in Table 52: Timer
values - screw compressors and Table 53: Timer values - reciprocating compressors.
Some of these timers can be changed whereas others are fixed. The Timer value tables (Table 52 for
screw compressors and Table 53 for reciprocating compressors) also include the factory set values.
