Engineering manual - UniSAB III 1.10.8
001930 en 2021.06
279/346
UniSAB III (boot) and communication set-up
8.3.2 Uploading configuration
Place one or more of the files Configuration.xml, AnalogInput.xml, PIDSettings.xml and Timers.xml, for
e.g. software version 1.0.6.5, in a library with the following path on the flash card: X:\UniSABIII\updates
\1_0_6_5.
• Configuration.xml - this file contains the UniSAB III configuration and calibration values
• AnalogInput.xml - this file contains shutdown/alarm limits and set points
• PIDSettings.xml - this file contains PID regulator parameters, like Ti, Td and Ts
• Timers.xml - this file contains the UniSAB III timers setting
Insert the flash card in UniSAB III and follow the instruction described in section 8.2 Enter boot loader
and 8.3 Update to upload the new configuration file(s).
You must restart UniSAB III to make the change take effect.
8.3.3 Uploading new/additional language
Place the language files ResourceBundle_xx you want to upload, for e.g. software version 1.0.6.5, in a
library with the following path on the flash card: X:\UniSABIII\updates\1_0_6_5.
There is a number of languages available in UniSAB III. See Languages in subsection 1.2.5 Session for
the list of languages. Eg ResourceBundle_cs is the Czech language.
Insert the flash card in UniSAB III and follow the instruction described in section 8.2 Enter boot loader
and 8.3 Update to upload the new language file(s).
You must restart UniSAB III to make the change take effect.

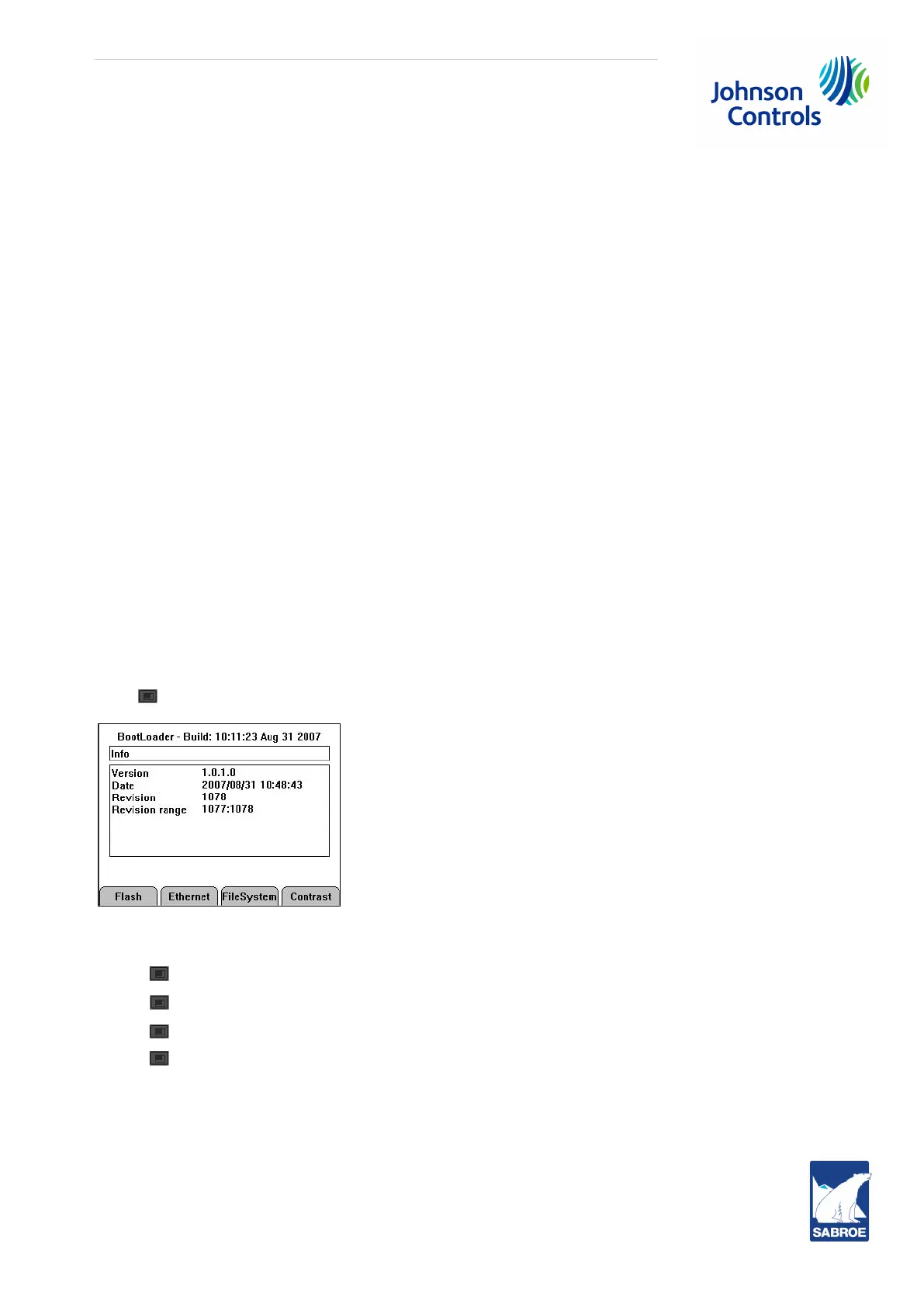

8.4 Info
Press /Info to find information about flash memory, Ethernet setting and contrast setting.
In the Info menu you have four options:
1. /Flash - information about the internal flash use.
2. /Ethernet- information and set-up of the Ethernet port.
3. /File system - information about the SD card and the internal flash memory.
4. /Contrast - information about contrast setting.
F2
F1
F2
F3
F4
