UniSAB III (boot) and communication set-up
Click on Connection/Connect and the SabSim Data simulator should now be connected the UniSAB III
panel. Check if UniSAB III shows the values set on the data simulator.
It is possible to connect both the SabSim data simulator and the SabHMI simulator to the same UniSAB
III panel at the same time.
Operation of SabSim is described in the manual UniSAB III HW simulator and is quite intuitive.
8.7.3 Demo and training package - UniDemo

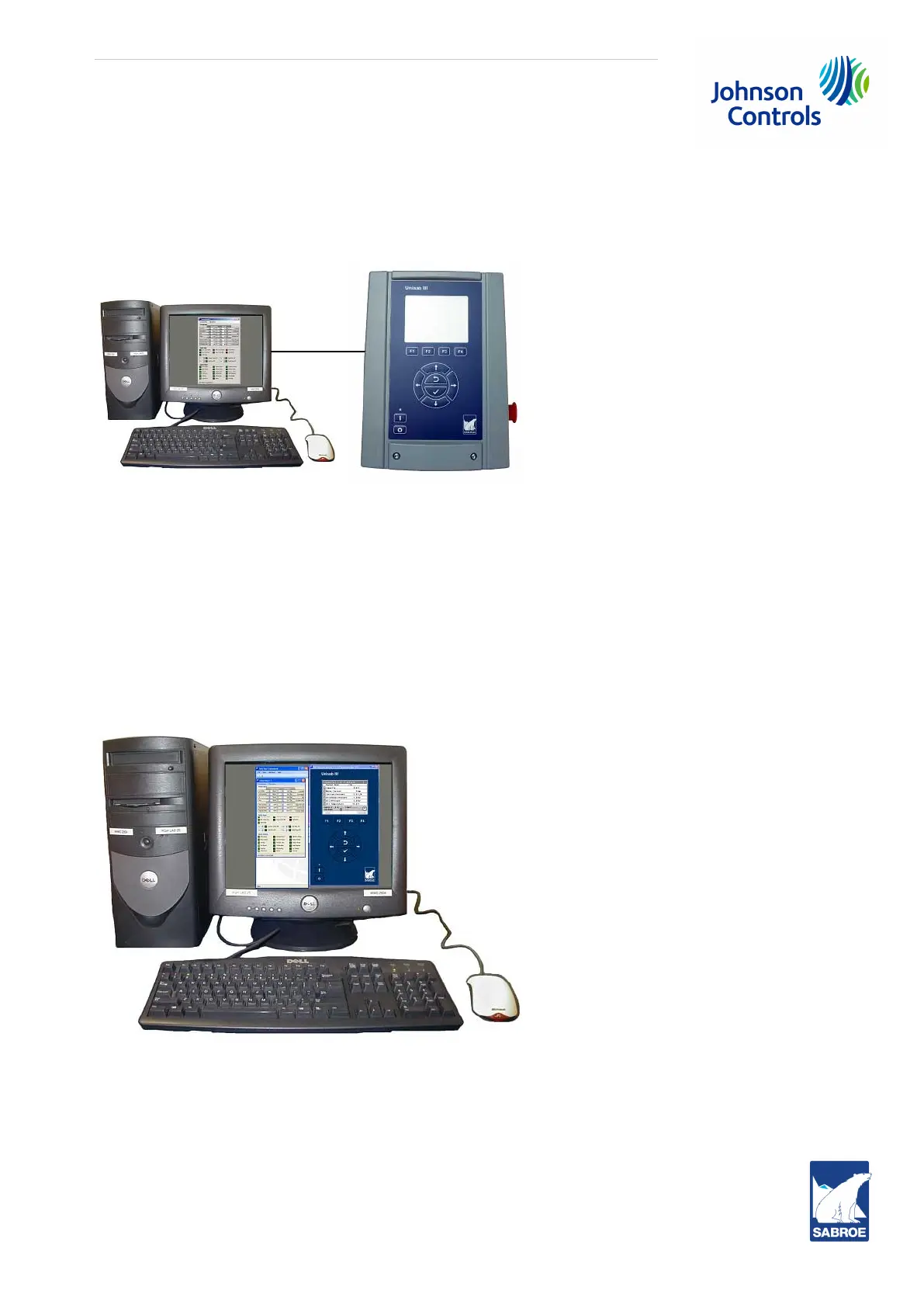

Connecting the SabSim Data simulator to the UniSAB III HMI simulator.
Start the UniSAB III HMI Simulator. In the menu Setup/Session/Remote Connect set Remote Connect
to Local. Start the SabSim Data simulator. Click on File and New in the SabSim Data simulator. Click OK
to the New Module (Compressor Simulator) and the simulator picture will open.
Click on Connection/Configure and insert the IP address of the UniSAB III HMI simulator (the address is
127.0.0.1). Click OK (Port and node number should not be changed).
Click on Connection/Connect and the SabSim Data simulator should now be connected the UniSAB III
HMI simulator. Check if data on the UniSAB III HMI and data simulator are identical.
