FX-1/FX-1R Maintenance Manual

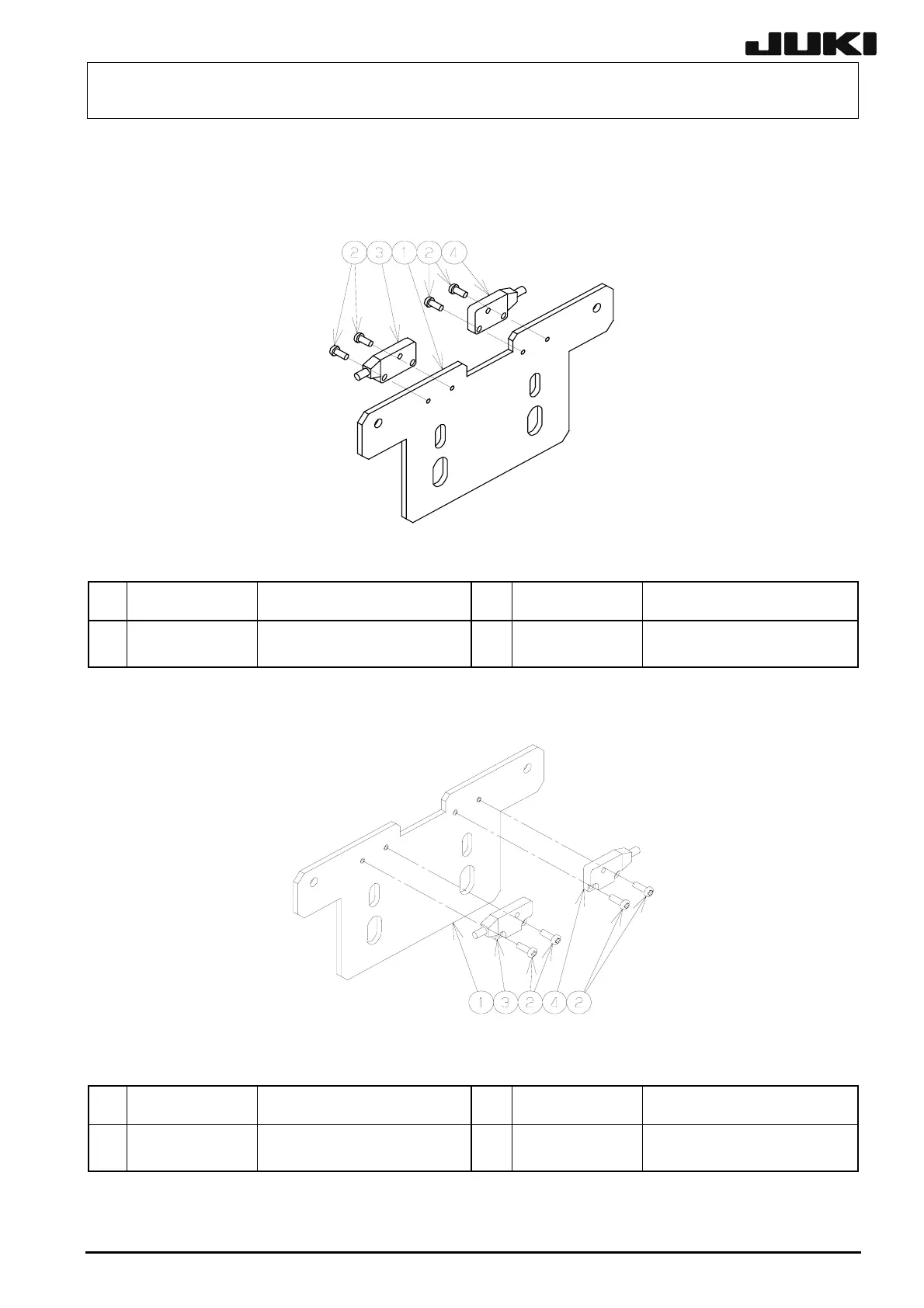

(2) Replace the sensor in the detached bracket assembly with a new one.
c FRR bracket assembly
Figure 11-2
c
L212E121000 FLOAT SENSOR PLATE
d
SM4020501SC
Pan head screw M2 × 5
e
L829E3210A0
FF EMITTER
SENSOR (FR-F) ASM
f
L829E9210A0
FF RECEIVER
SENSOR (FR-R) ASM
d FRL bracket assembly
Figure 11-3
c
L212E121000 FLOAT SENSOR PLATE
d
SM4020501SC
Pan head screw M2 × 5
e
L829E5210A0
FF RECEIVER
SENSOR (FR-F) ASM
f
L829E7210A0
FF EMITTER
SENSOR (FR-R) ASM
11-2
Rev. 2.00
