FX-1/FX-1R Maintenance Manual
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[2] HEAD UNIT
2-1. Replacing and Adjusting the Head
2-1-1. MNLA Head

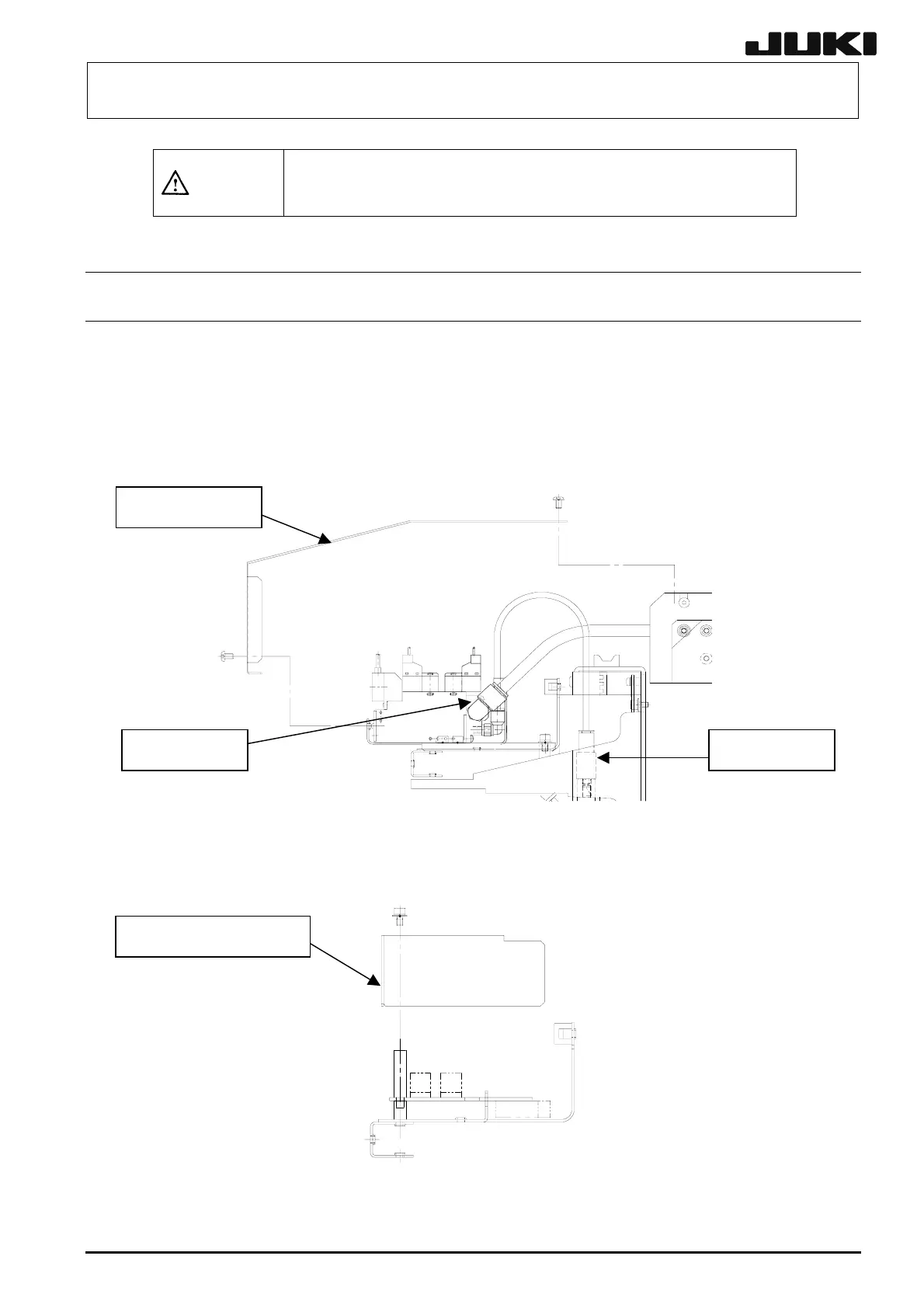

(1) Detach the head top cover c. (4 mounting screws)
(2) Shut down the main air pressure to the machine main unit and disconnect the air tubes from
the half union and elbow union.
Head top cover c
Elbow union Half union
Figure 2-1-1
(3) Remove the head sensor PWB cover and disconnect the cable connector from the head sensor
board. Disconnect the motor connector from the Zθ-servo amplifier board.
Head sensor PWB cover
Figure 2-1-2
2-1
Rev. 2.00
