FX-1/FX-1R Maintenance Manual
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[11] REPLACING AND ADJUSTING THE FEEDER FLOAT SENSOR

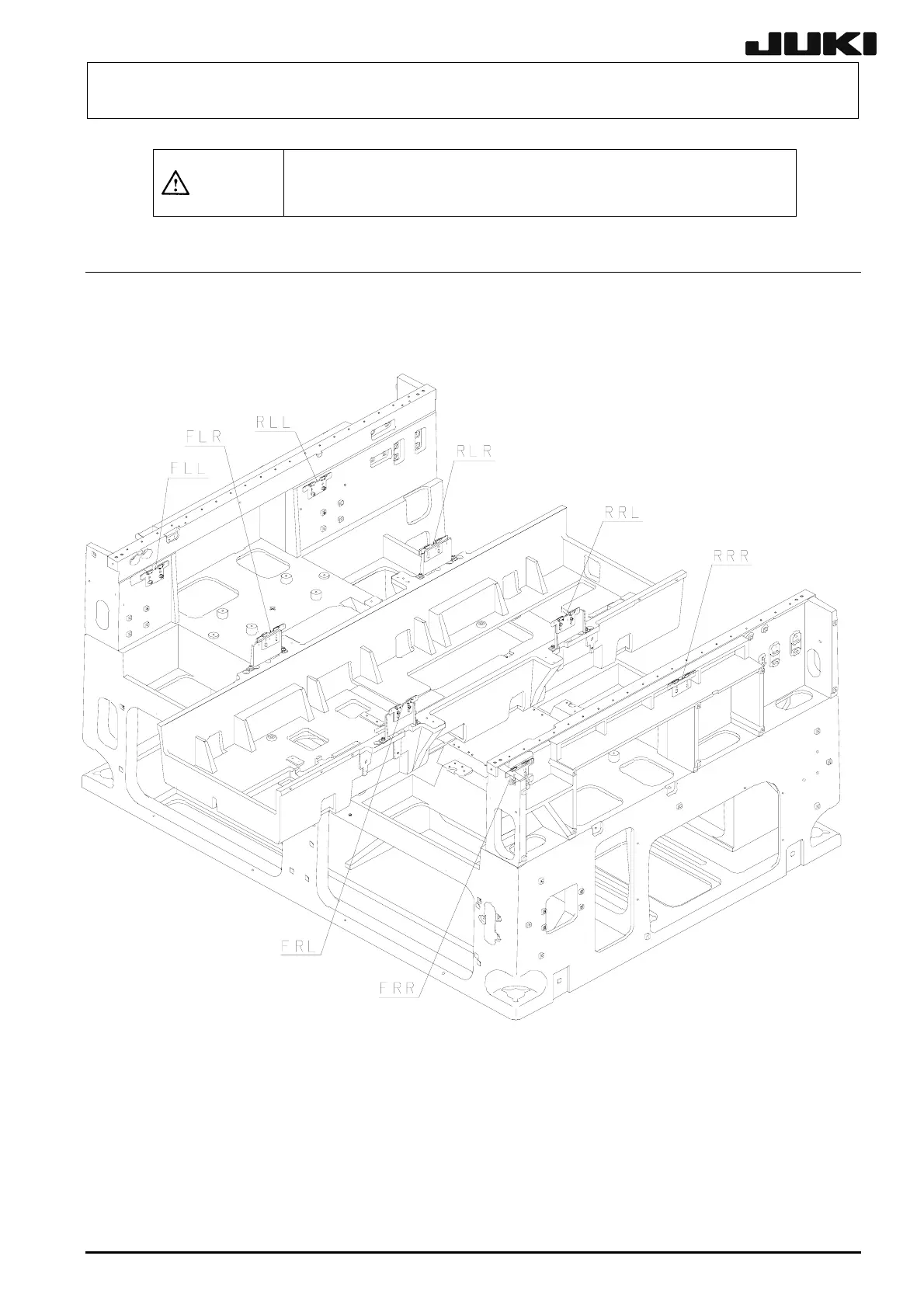

(1) Check the position of a sensor to be replaced in the machine while referring to the figure below,
and detach the sensor together with the bracket.
g
h
i
j
c
e
f
d
Figure 11-1
11-1
Rev. 2.00
