FX-1/FX-1R Maintenance Manual

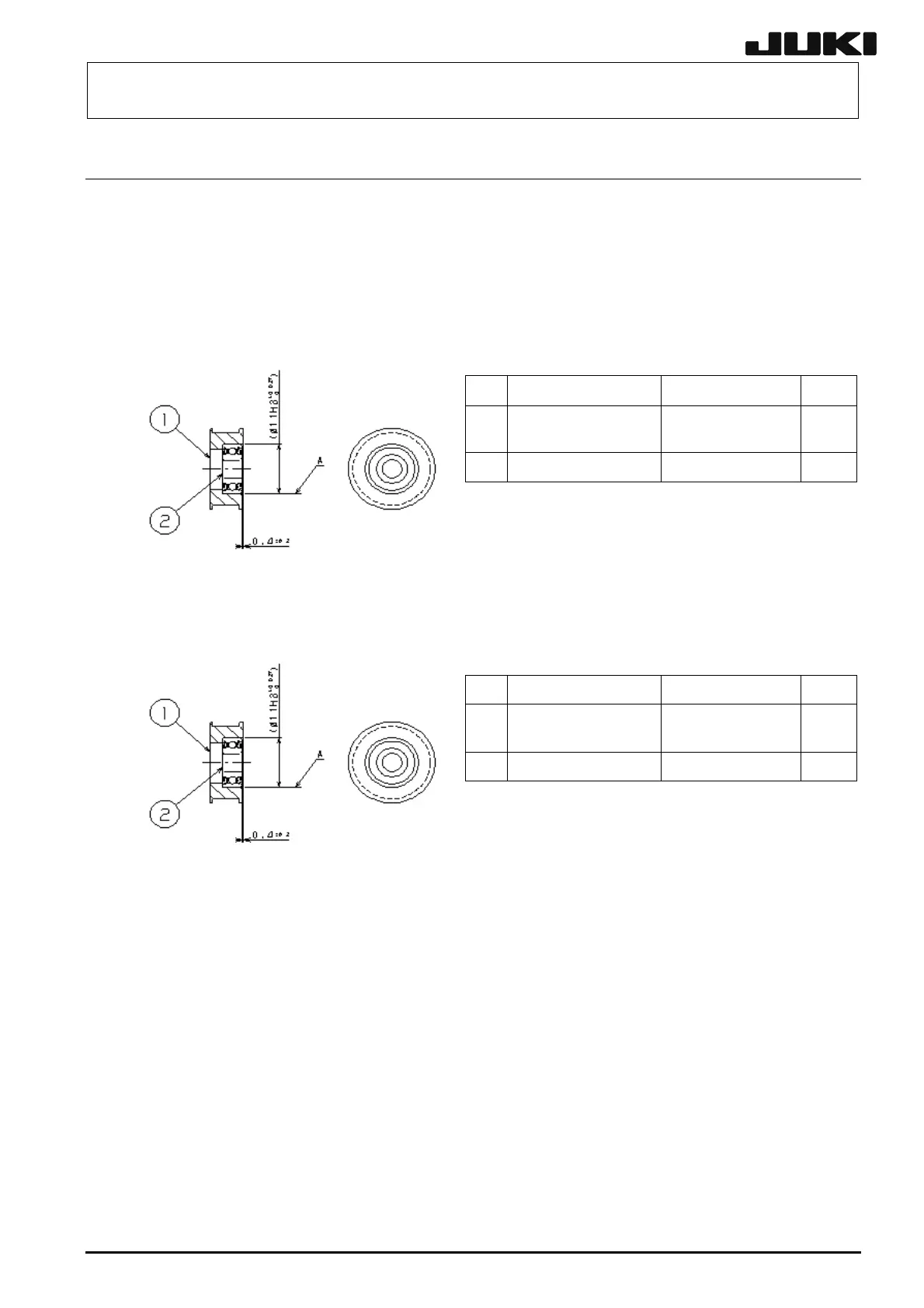

5-2. Replacing the Transport Pulley
Two kinds of transport pulleys are available. If the mounting position is changed or the pulley is
mounted incorrectly, this may cause incorrect pulley rotation or incorrect alignment of the transport
belt, resulting in wear on the belt.
Always refer to relevant mounting procedure when mounting the transport pulley.
5-2-1. CONVEYOR PULLEY A: E21117150A0
No. Part No. Part name Q'ty
1 E21117150A0 CONVEYOR
PULLEY A
1
2 SB104000100 Bearing 1
Figure 5-2-1
5-2-2. CONVEYOR PULLEY B: E20897210A0
No. Part No. Part name Q'ty
1 E20897210000 CONVEYOR
PULLEY B
1
2 SB104000100 Bearing 2
Figure 5-2-2
5-2
Rev. 2.00
