FX-1/FX-1R Maintenance Manual

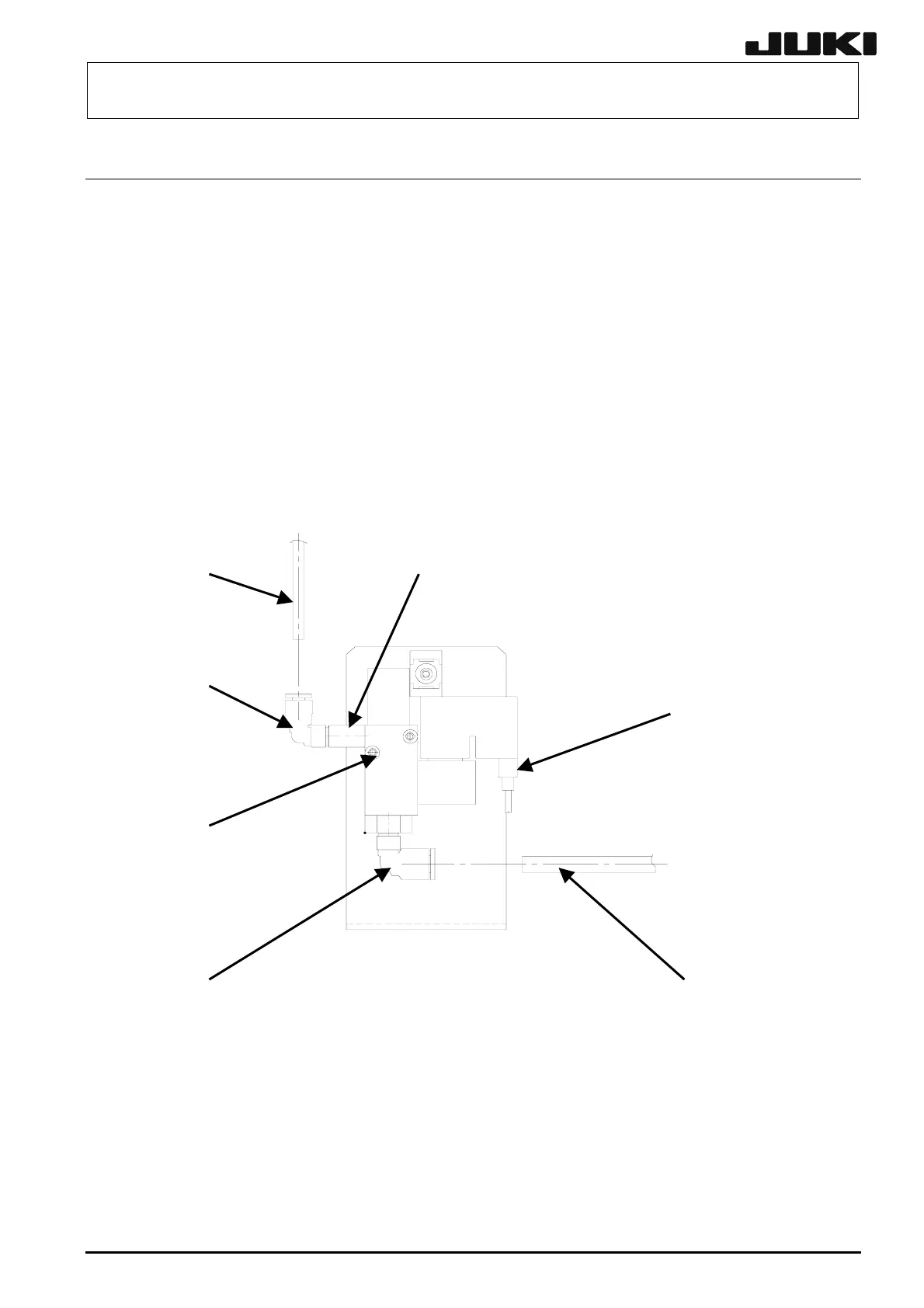

6-2. Replacing the Ejector
(1) Shut down the main air pressure to the machine main unit and disconnect the cable c and air
tubes d and e.
(2) Remove the screw f fixing the ejector to detach the ejector.
(3) Remove the elbow unions g and h from the detached ejector and mount them on a new
ejector.
(4) After the ejector has been replaced, reassemble the components in the reverse order.
The filter i can be replaced without shutting down of the air supply.
Part No. 40000641 Part name Filter
h
i
f
d
g
e
c
6-2
Rev. 2.00
