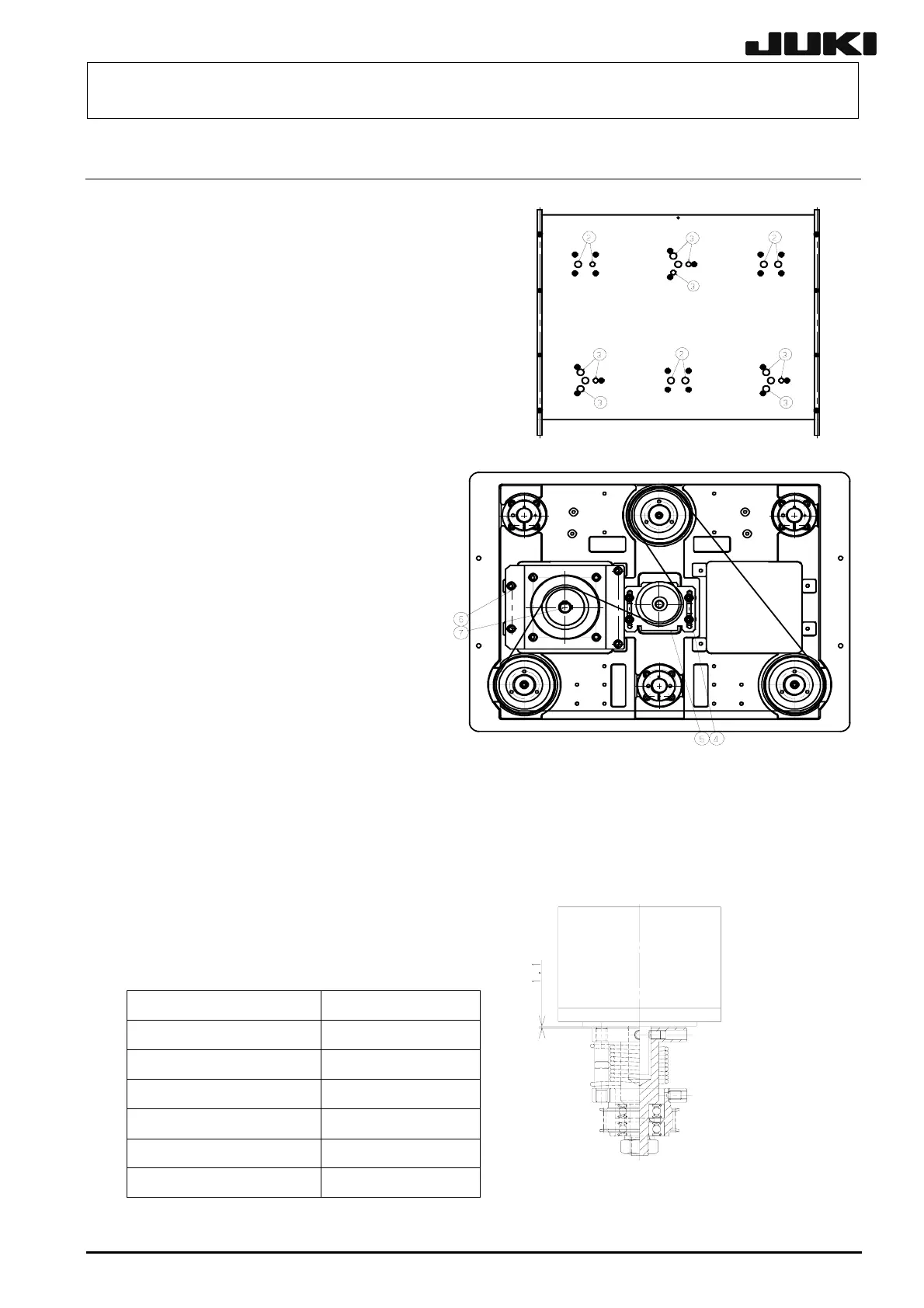

FX-1/FX-1R Maintenance Manual
5-17. Replacing the STBL Motor
(1) Widen the rail width to its maximum level.
(2) Remove the support table fixing screws d and e
(15 screws in total) to detach the support table c.
(3) Remove the encoder unit fixing screws f to
loosen the tension of the timing belt for driving of
the STBL ball screw and detach the timing belt
and encoder unit g.
(4) Remove the bracket fixing screws h to take out
the STBL motor assembly i together with the
torque supporter assembly.
Figure 5-17-1
(5) Loosen the set screw to detach the
torque supporter assembly from the
STBL motor assembly i.
5-20
When installing a new BU motor,
reassemble the components in the order of
steps (5) to (1).
Perform the following when reassembling.
• Adjust the gap between the torque
supporter and STBL motor.
• Adjust the tension of the STBL
driving timing belt.
Figure 5-17-2
• Place the support table surface
horizontally.
• Obtain the support table offset.
5-17-1. Adjusting the Gap between Torque Supporter and STBL Motor
The gap between the torque supporter and STBL
motor must be adjusted to 1.1 mm.
Table 5-17-1-1
Part name Part No.
STBL MOTOR ASM L900E4210A0
TORQUE SUPPORT UNIT L177E6210A0
STBL ENCODER ASM L809E5210A0
BU TIMING BELT L176E321000
STBL BALL SCREW L176E821000
STBL NEAR SENSOR L812E8210A0
Figure 5-17-1-1
Rev. 2.00
