FX-1/FX-1R Maintenance Manual
8-6. Adjusting the Speed Controller of the Bank-Up Cylinder
(Optional Replacement Table)
(1) Adjust the speed controller on the cylinder, which has been replaced in the previous section.
(2) The speed controllers have been set so that the bank-up cylinder completes ascent/descent
operation in two to three seconds. (When assembled)
UP speed : To be adjusted by the upper speed controller.
If the up speed of the cylinder is too fast, turn the speed controller adjustment screw clockwise.
DOWN speed: To be adjusted by the lower speed controller.
If the down speed of the cylinder is too fast, turn the speed controller adjustment screw
clockwise.
(3) If the up and down speeds of the left and right cylinders are the same, lock the adjustment
screws of the speed controllers with the lock screws.
(4) After the adjustment screws have been locked, recheck the up and down speeds.
DOWN speed adjustment
UP speed adjustment
To make the speed slower.

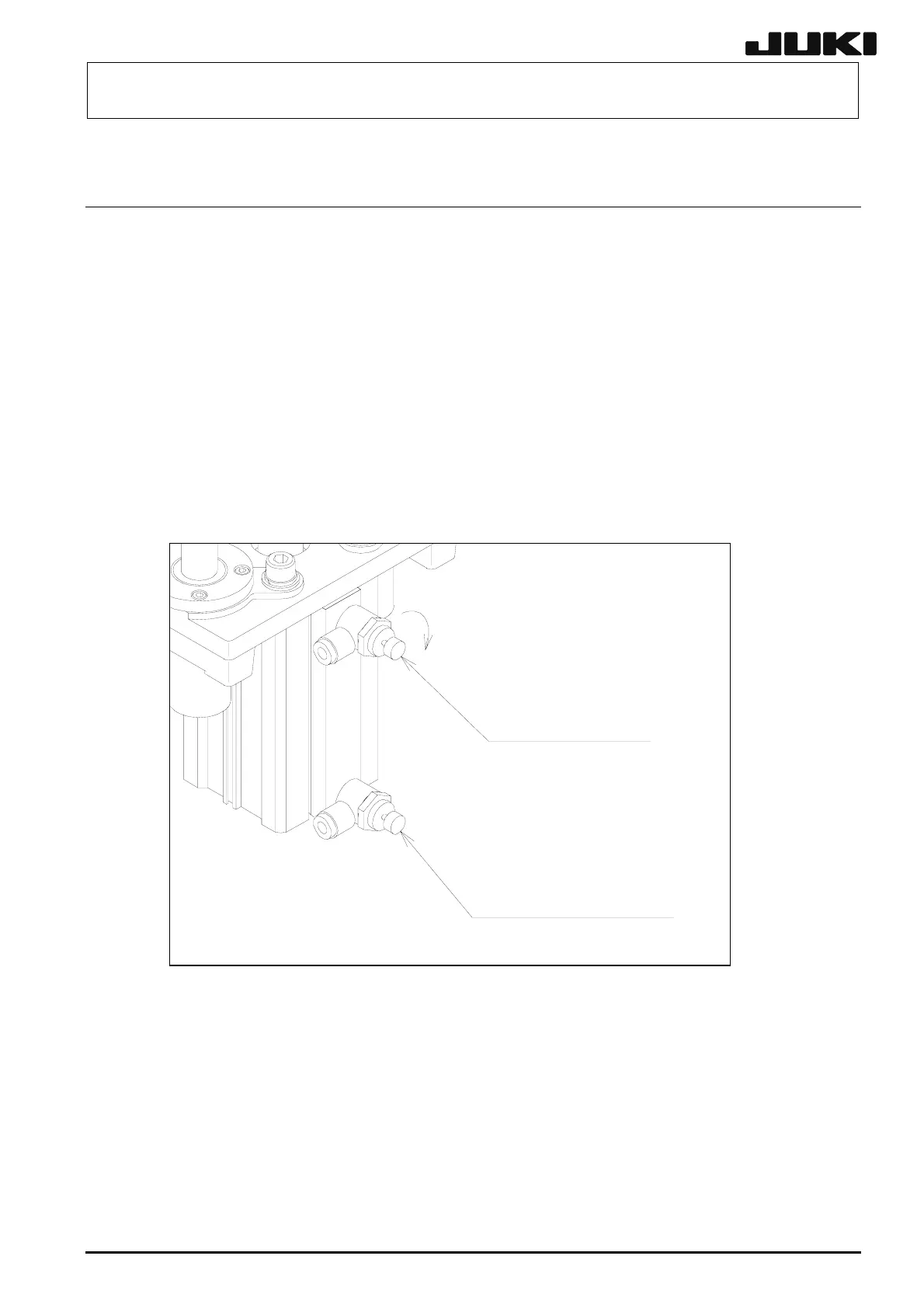

Figure 8-6-1
8-7
Rev. 2.00
