JUKI FX-1 - Running the Bad Mark Sensor Cables

FX-1/FX-1R Maintenance Manual
3-2-6. Running the bad mark sensor cables

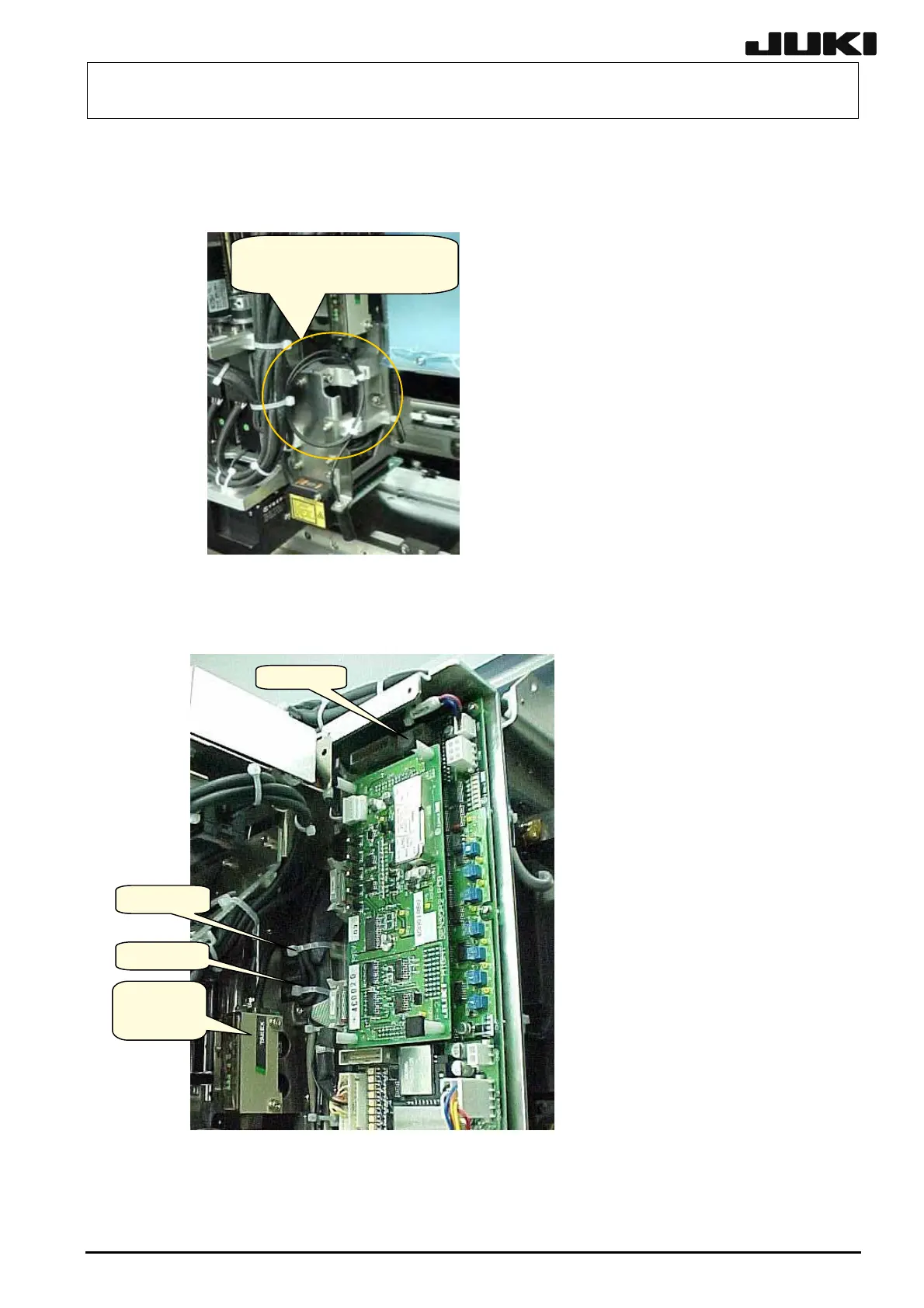

• Bundle the sensor fiber unit cables as shown in the Photo below and fix them with tie-up bands.
Bundle excess cables of the fibe
r
unit like a circle and fix them with
tie-up bands.
• Run the cables coming from the bad mark sensor as shown in the Photo below and connect
them to the portions shown on the board.
Tie-up band
Bad mark
sensor
assembly
Tie-up band
Tie-up band
See Subsection 3-5-3-2 of MS Parameter manual.
