FX-1/FX-1R Maintenance Manual
5-6. Adjusting the Width Adjust Link Belt (IN/OUT)
<Procedures>
(1) Loosen the bracket fixing bolts of the adjuster bracket R c to move the tensioner pulley d and
idler pulley e rightward or leftward
(2) Adjust the tension of the belt considering the interference with other parts.
(3) Measure the tension using a sonic belt tension meter (manufactured by UNITTA) and adjust it
to between 45 ± 5N.
(Weight=002.5, Width=009.0, Span=0260)
(4) After adjustment, tighten the adjuster bracket R c.
Part name: WIDTH ADJUST LINK BELT L
Part No.: L171E521000
Weaker Stronger
c
e
d
c
Measuring position

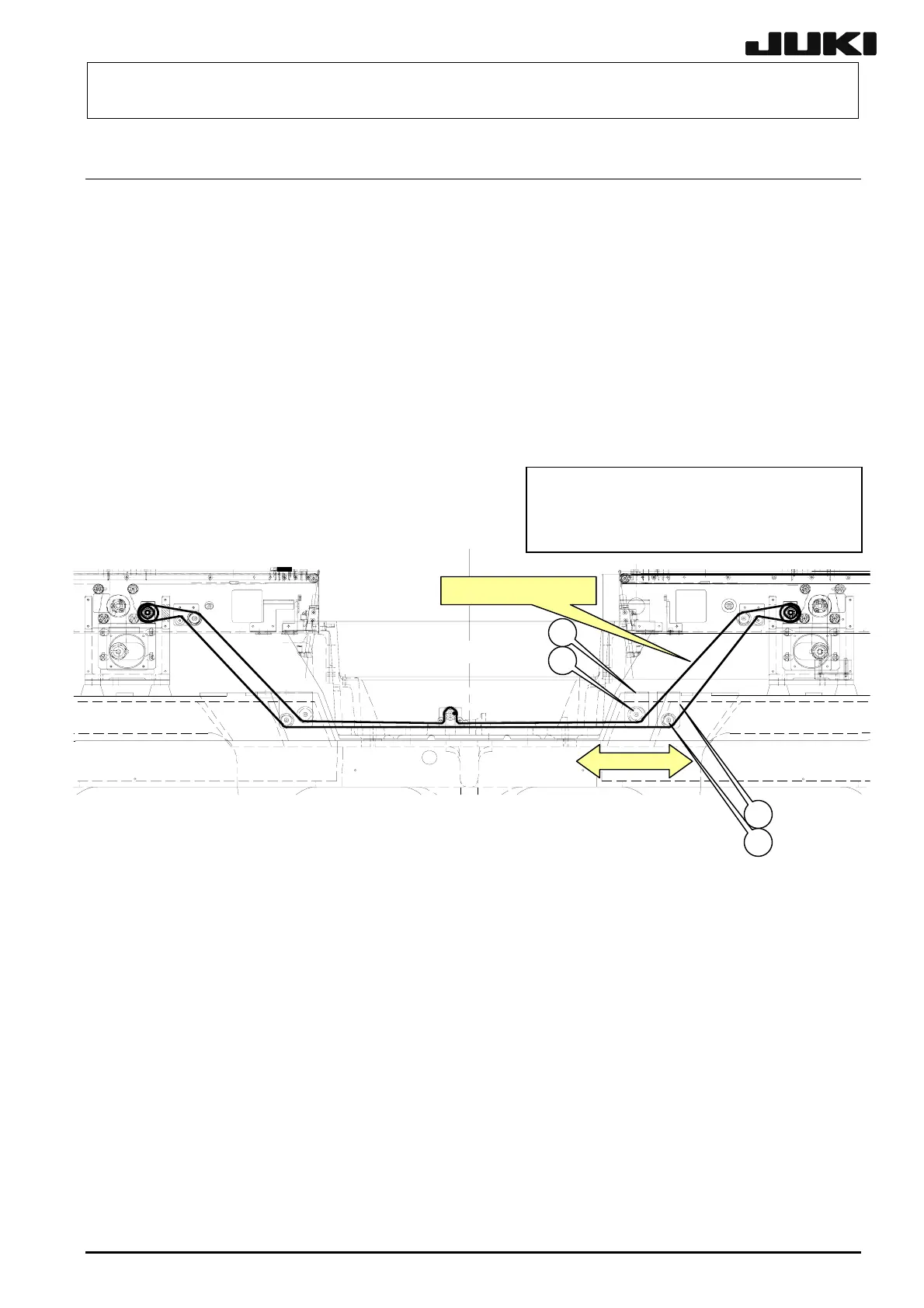

Figure 5-6-1
5-8
Rev. 2.00
