FX-1/FX-1R Maintenance Manual
13-4-4. Bus Bridge Board (40003313)
[Functions]
The bus bridge board connects the Compact PCI bus and VME bus for accessing from CPCI to
VME.

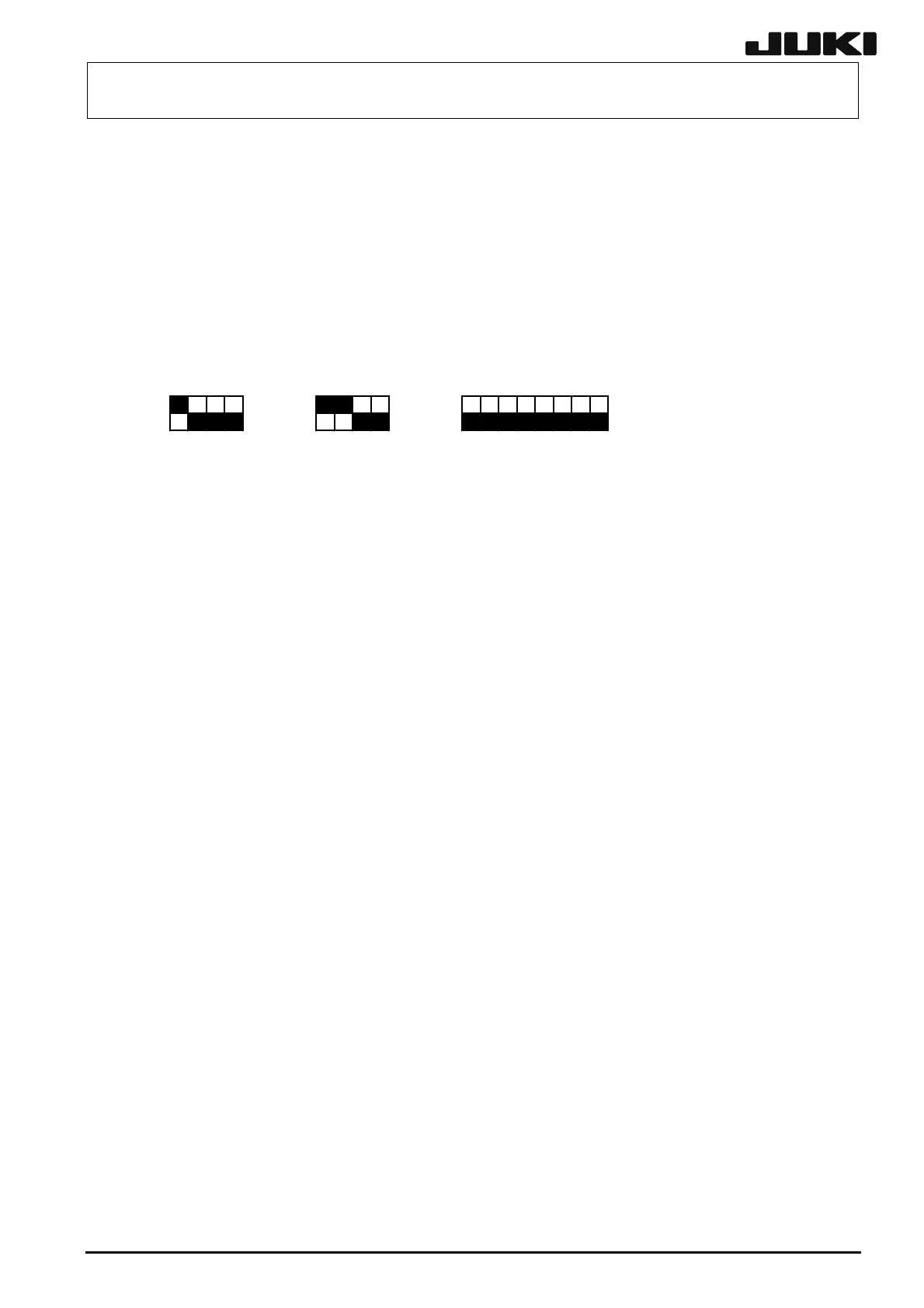

[Dip switch settings]
When setting a board in the control unit, set up the dip switches as shown below:
1234 1234 12345678
OFF OFF OFF
DS1 DS2 DS3
[Meaning of LED]
SCON: Lights up when this board is set as VMEbus controller. Normally, this LED is always lit
while the power is supplied.
[RST switch]
If the RST switch is pressed, the VMEbus controller is reset. Normally, do not operate this
switch.
[Adjustment items after replacement]
There are no particular adjustment items.
13-10
Rev. 2.00
