FX-1/FX-1R Maintenance Manual

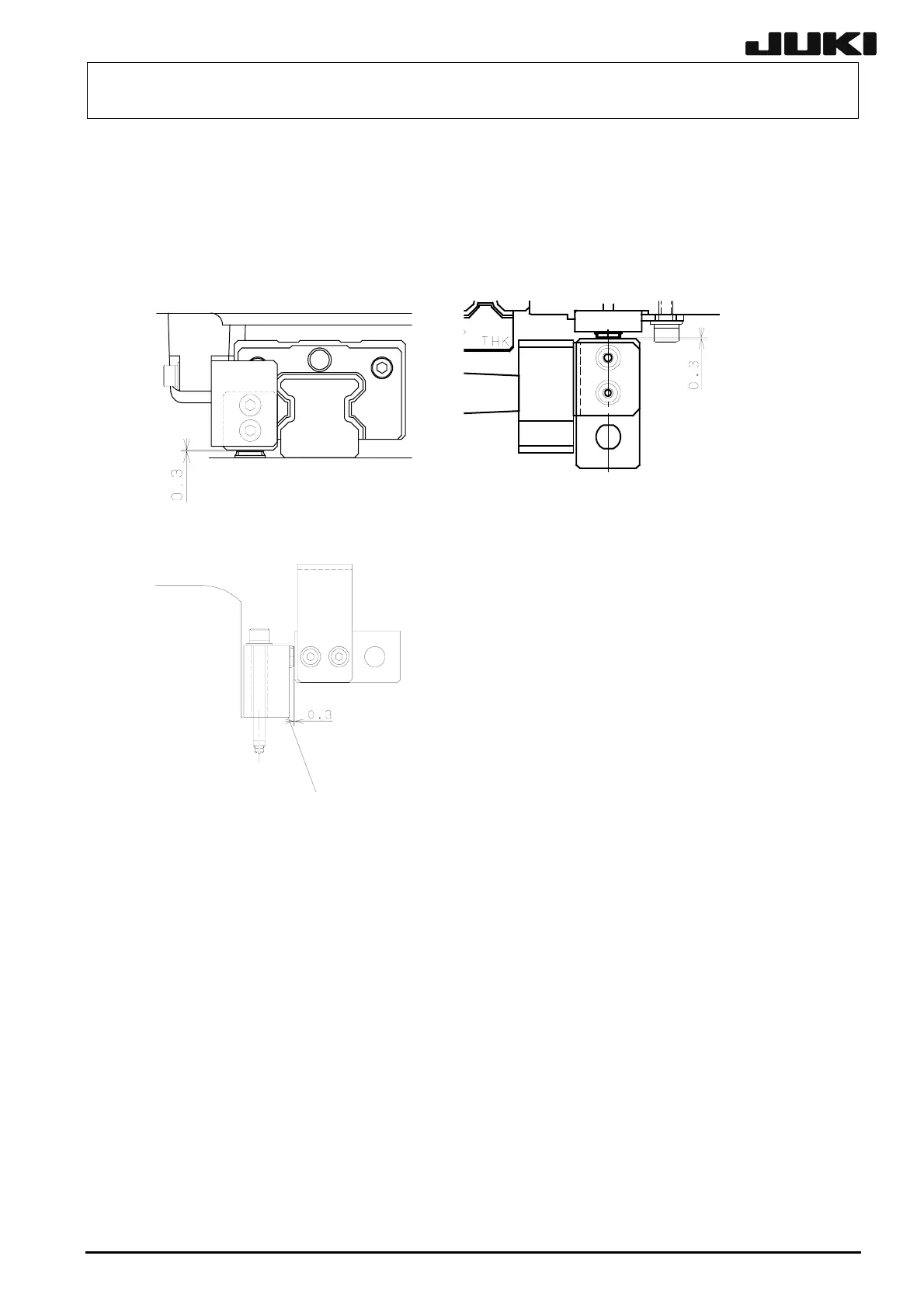

1-8-4. Gap of magnescale (FX-1R)
(1) Loosen the screw fixing the sensor and put the 0.3mm-thick tool in the gap between the
magnescale and sensor head.
(2) Tighten the screw and remove the 0.3mm-thick tool.
1-14
Figure 1-8-4-1 (YB-axis) Figure 1-8-4-2 (X-axis)
Figure 1-8-4-3 (YA-axis)
Rev. 2.00
