FX-1/FX-1R Maintenance Manual
13-5. X-Y Unit
The X-Y unit is composed of AC servo driver that drives the X/Y-axes and a magnescale that detects
the movement position.
Note) The YA-axis described in this section is equivalent to the Y-TBL-axis.
13-5-1. Structure of X-Y Unit
Five single-axis drivers (two AC servo drivers to drive the X-axis, one AC servo driver to drive the
YA-axis, and two AC servo drivers to drive the YB-axis) are mounted on the AC servo driver.
Additionally, four scale I/F units (or five scale I/F units in case of FX-1R) and one magnescale
detector (or one scale PCB in case of FX-1R) are mounted on the right side of the XY-driver.
YBR-axis XL-axis
YA-axis YBL-axis XR-axis

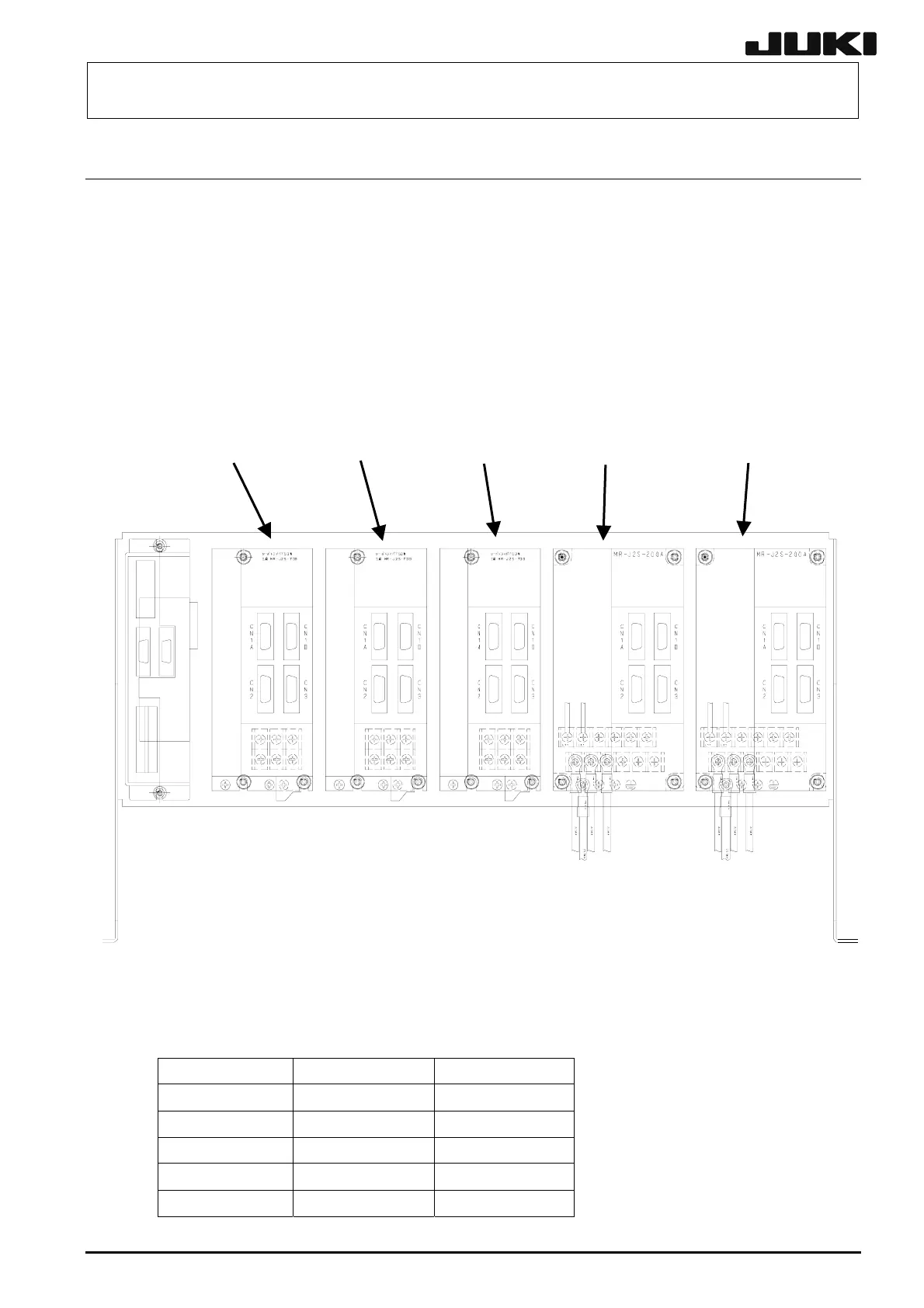

Figure 13-5-1-1 Structure of X-Y Unit
<Driver part No. (with parameter already written)>
FX-1 FX-1R
YA: 750W 40026782 40026788
YBL: 750W 40026784 40026790
YBR: 750W 40026784 40026790
XL: 2kW 40026786 40026792
XR: 2kW 40026786 40026794
13-22
Rev. 2.00
