QFX5240 Fan Module Status LED
Each fan module has one bicolored status LED. See Figure 19 on page 34.

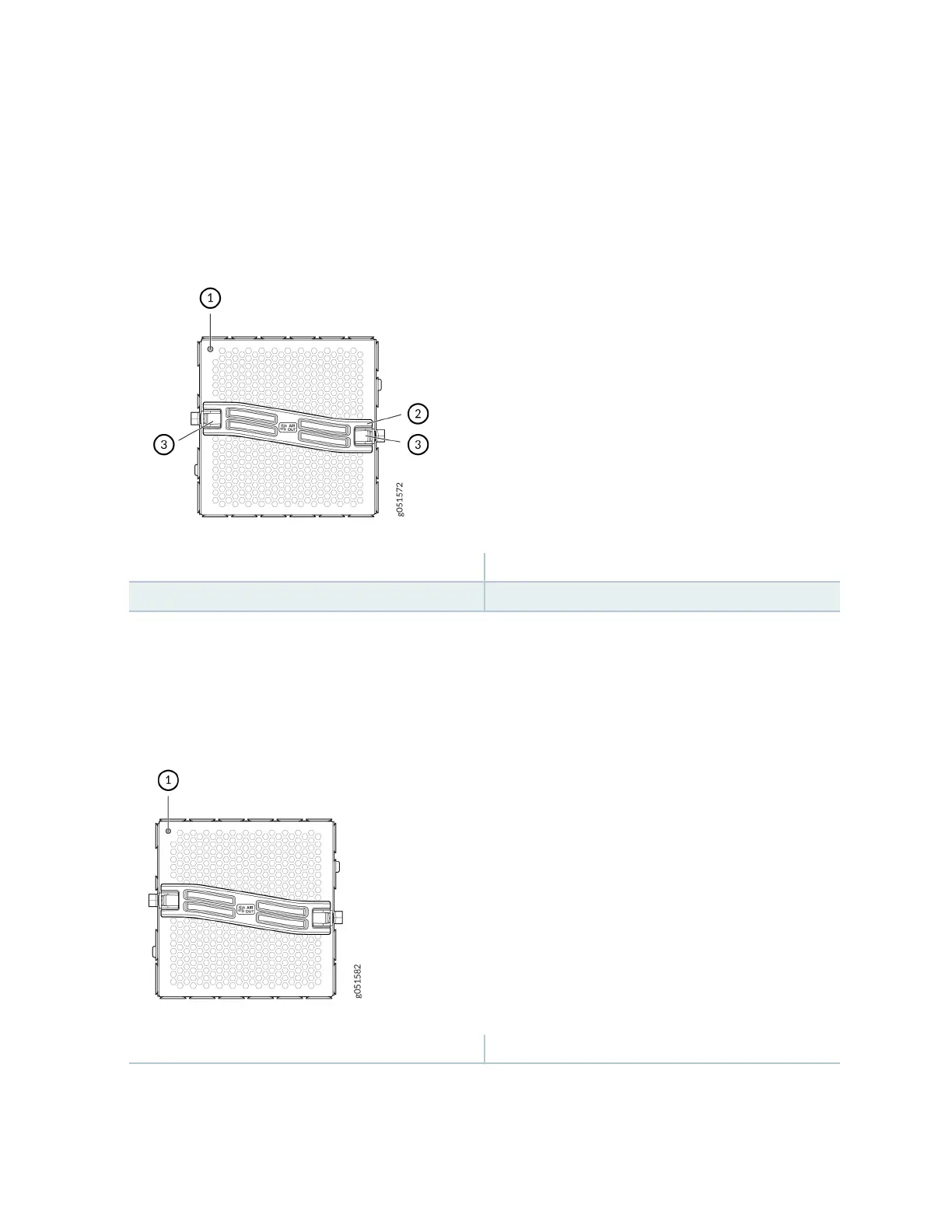

Figure 19: Fan Module Descripon for QFX5240
1—
Fan module LED
3— Lock release handle
2—
Handle
Table 11 on page 35 describes the behavior of the fan module status LED. Figure 20 on page 34
shows the fan module LED for QFX5240-64OD.
Figure 20: Fan Module LED for QFX5240-64OD
1—
Fan module status LED
