KAESER M100 - Optional Anti-Theft Device; Pedestrian Protection Option; Fig. 19 Position of Service Openings in the Sealed Floor Pan; Fig. 20 Drain Points for Oil and Coolant from Engine and Compressor

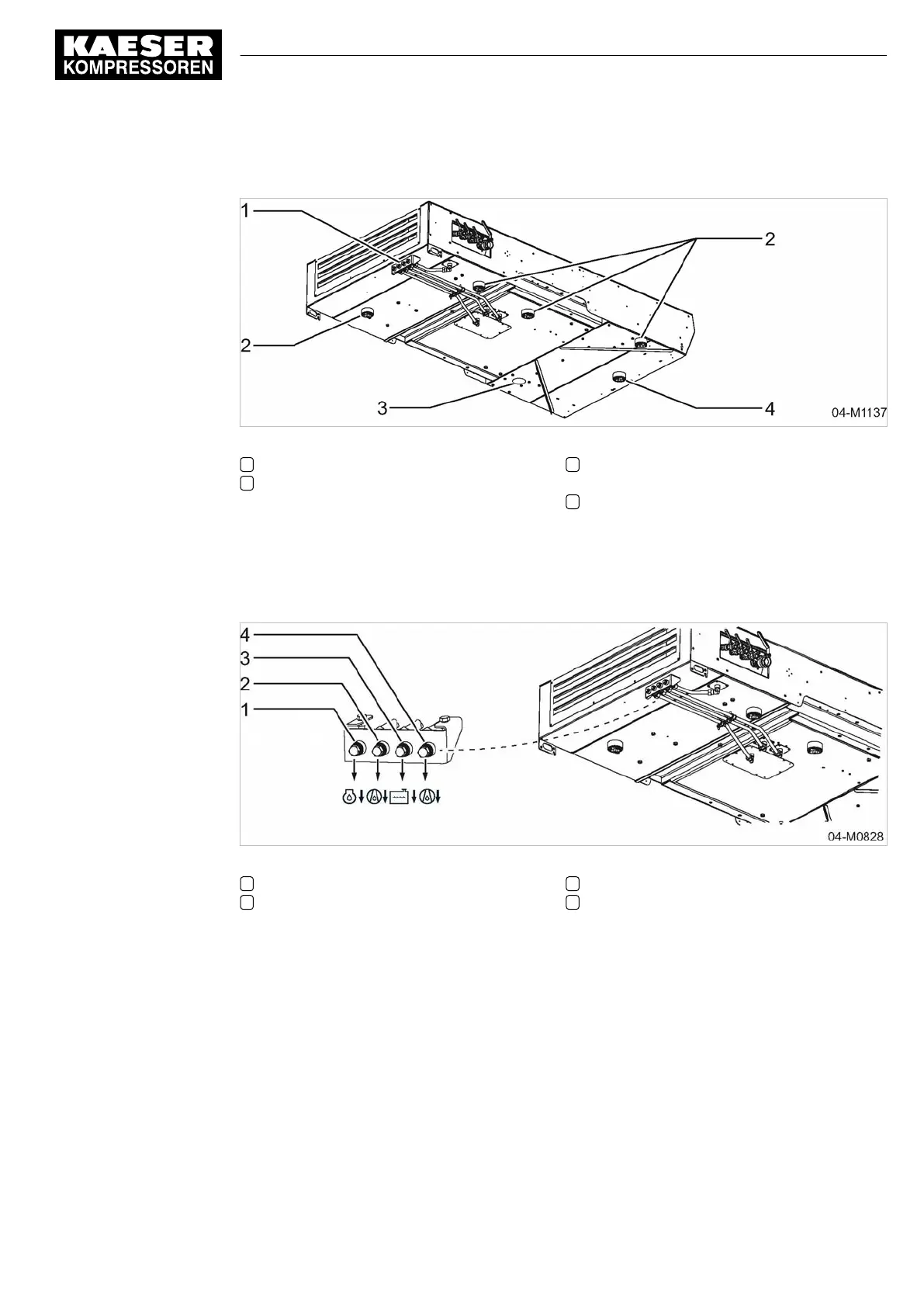

Position of service openings in the sealed floor pan
Fig. 19 Position of service openings in the sealed floor pan
1 Central drain point for oil/coolant
2 Cleaning opening closed with plug
3 Access to the storage box of the anti-theft
chain
4 Spark arrestor in the service opening,
closed with plug
The drain points for compressor cooling oil and engine coolant are led to a central point outside.
Drain points for oil and coolant from engine and compressor
Fig. 20 Drain points for oil and coolant from engine and compressor
1 Engine oil drain
2 Coolant drain - oil cooler, compressor
3 Coolant drain - water cooler, engine
4 Coolant oil drain - oil separator tank, com‐
pressor
4.7.8 Option sf
Optional anti-theft device
The machine is fitted with a security chain as theft protection.
4.7.9 Option sg
Pedestrian protection option
The machine is fitted with a special protective guard that prevents pedestrians from being run over.
