5. Insert the plug in the filler port.
6.
Close the door.
Further information See chapter 2.7.1.1 for suitable oil grade and volume.
10.8.2 Option da, db, dc, dd
Cyclone separator maintenance
Clean the cyclone separator dirt trap if the moisture content in the compressed air is too high.
Material Cleaning cloth
Wrench
Small screwdriver
Dirt trap maintenance kit
Petroleum ether or spirit
Precondition The machine is shut down.
Machine is cooled down.
The machine is fully vented, the pressure gauge reads 0 psig.
All compressed air consumers are disconnected and the air outlet valves are open.
The negative cable to the battery is disconnected.

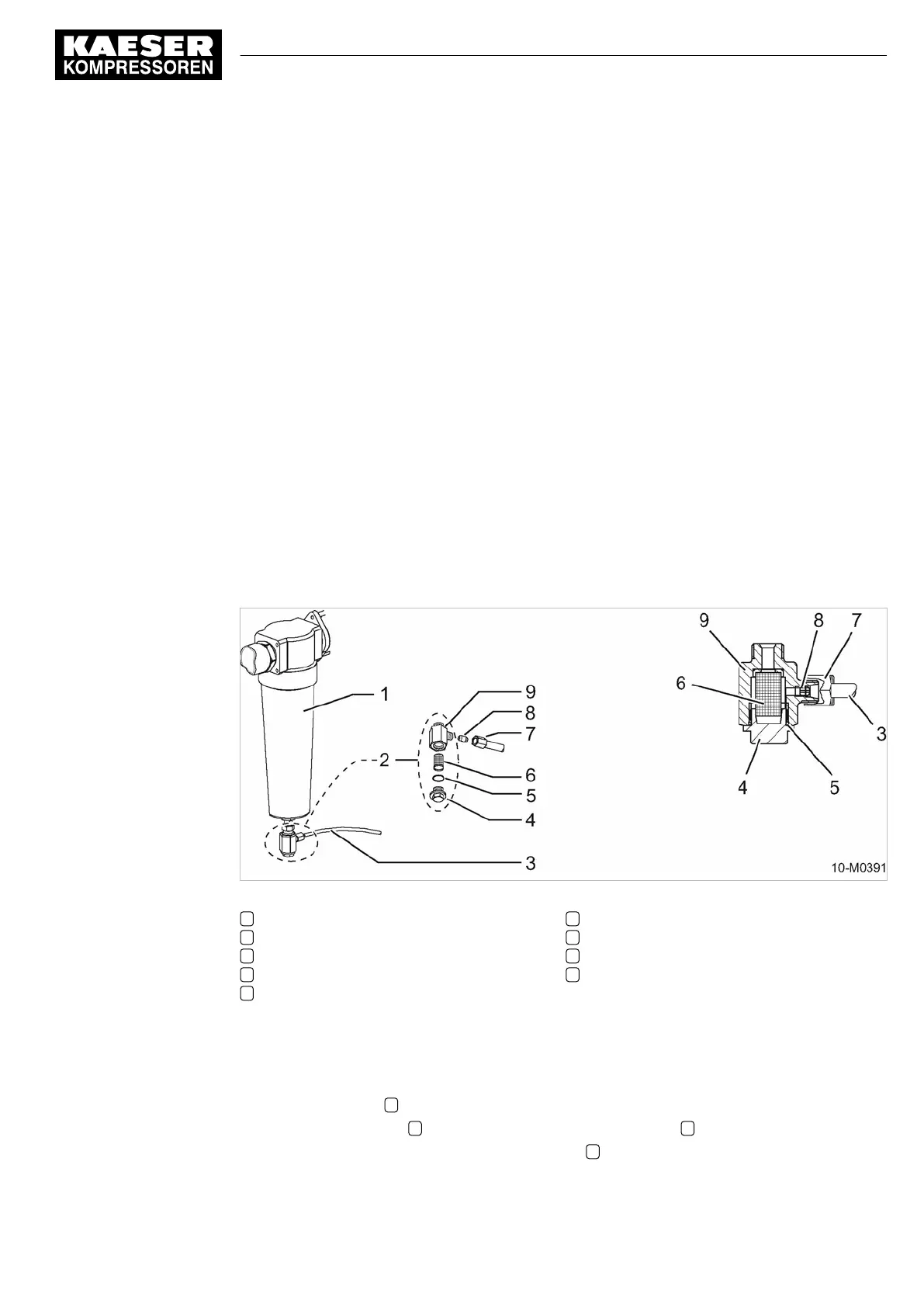

Fig. 83 Cleaning the dirt trap
1 Cyclone separator
2 Dirt trap
3 Condensate drain hose
4 Filler plug
5 O-ring
6 Strainer
7 Condensate drain hose union nut
8 Nozzle
9 Dirt trap housing
➤ Open the left-hand door.
Cleaning the dirt trap:
1.
Unscrew the plug 4
and remove the strainer.
2.
Loosen the union nut 7
and detach the condensate drain hose 3 from the dirt trap.
3.
Use the small screwdriver to unscrew the nozzle 8
from the dirt trap housing.
10 Maintenance
10.8 Maintenance for Optional Items
No.: 9_6999 23 USE
Operator Manual Screw Compressor
M100
157
