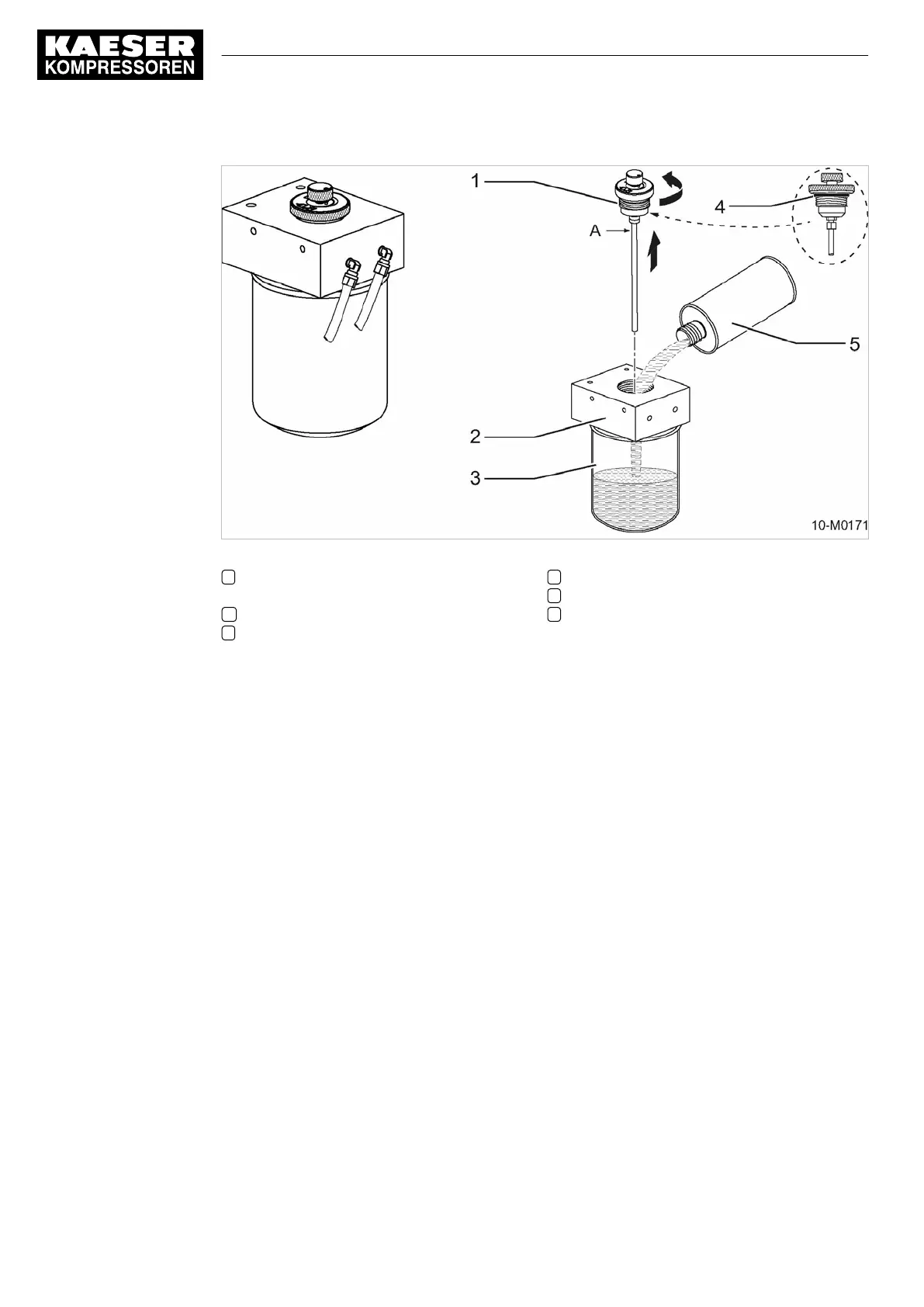

Fig. 82 Tool lubricator maintenance
1 Filler plug with dipstick and integrated riser
tube
A Minimum and recommended oil level
2 Tool lubricator upper part with oil filling
port
3 Oil tank
4 O-ring
5 Tool oil
➤ Open the right-hand access door.
Checking the tool lubricator oil level
Check the oil level daily.
A dip stick is attached to the underside of the oil filler plug with which to measure the oil level.
The oil level should be in the upper third of the dipstick.
1.
Slowly unscrew and withdraw the oil filler plug.
2. Wipe off the dipstick with a lint-free cloth or rag and screw the plug fully in again.
3. Unscrew and withdraw the plug once more and read off the oil level on the dipstick.
Oil level at the upper third of the dip stick: Oil level is correct.
If oil does not reach this level: Immediately replenish tool oil.
4. Close the door.
Filling and topping up with tool lubricator oil
1. Slowly unscrew and withdraw the oil filler plug.
2. Use a funnel to pour in the oil to the maximum level (0.4 – 0.6 inches below the top of the
tank).
3. Check the oil level.
4. Check the filler plug O-ring for external damage.
Skadet O-ring: replace the O-ring.
10 Maintenance
10.8 Maintenance for Optional Items
156
Operator Manual Screw Compressor
M100
No.: 9_6999 23 USE
To Next Page
