11. Insert the splint pin.
12.
Pull up the parking brake (pull the hand brake lever up).
6.3.2 Option rc/ro/rs, rd/ro/rs
Fitting a non-adjustable tow bar

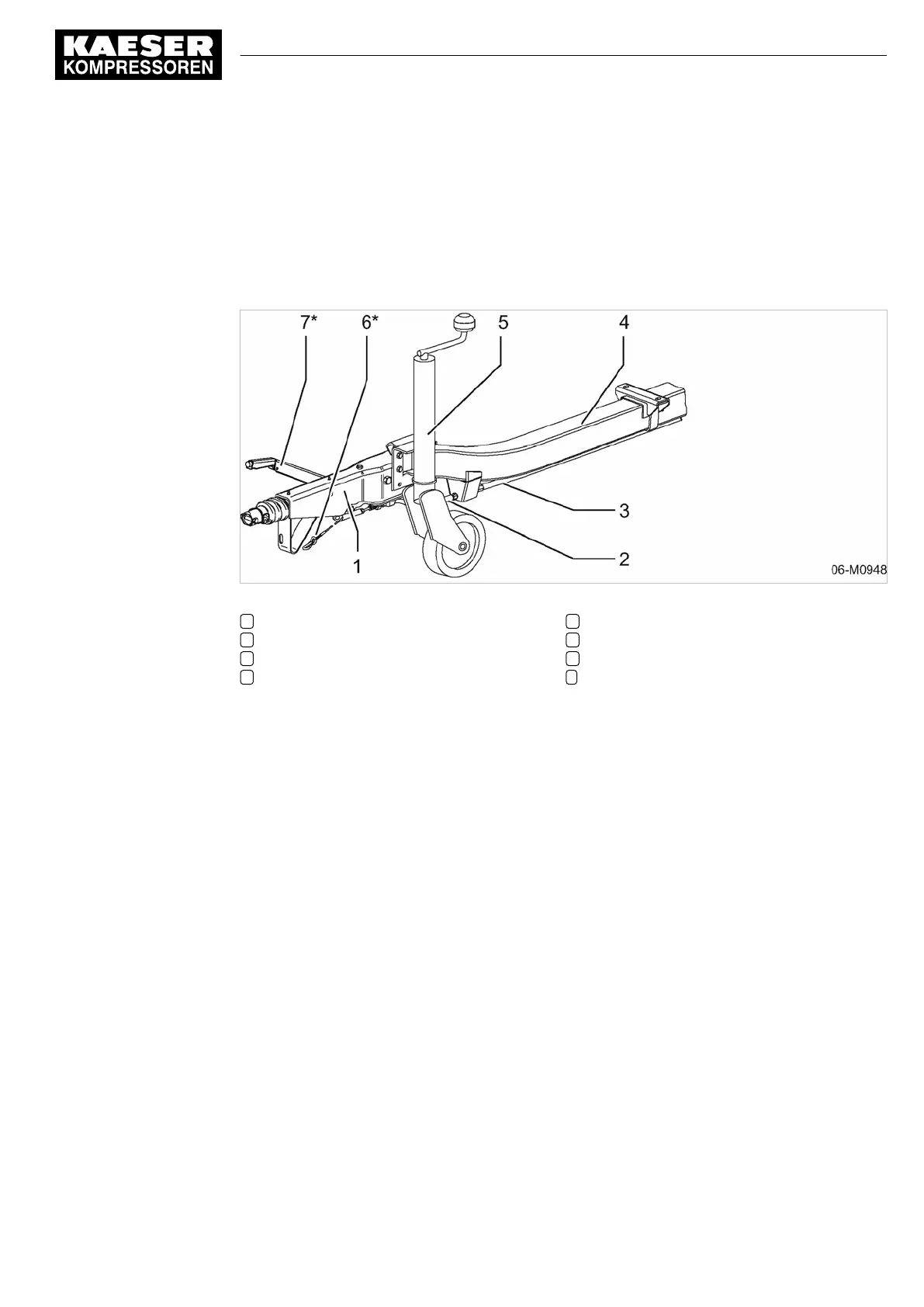

Fig. 24 Non-adjustable tow bar fitted
1 Overrun braking mechanism
2 Brake transfer cable
3 Brake rod
4 Tow bar
5 Jockey wheel
6 Breakaway cable
7 Parking brake
* not for USA type chassis
1. Open the doors.
2.
Remove the bag with the brake transfer cable and fastenings, unpack and lay out ready.
3. Close the doors.
4. Remove all transport securing items (screw fastenings, duct tape, foam pads) from the tow bar
components.
6 Installation
6.3 Fitting the towbar
No.: 9_6999 23 USE
Operator Manual Screw Compressor
M100
65
Option rc/ro/rs, rd/ro/rs
