KAESER M100 User Manual

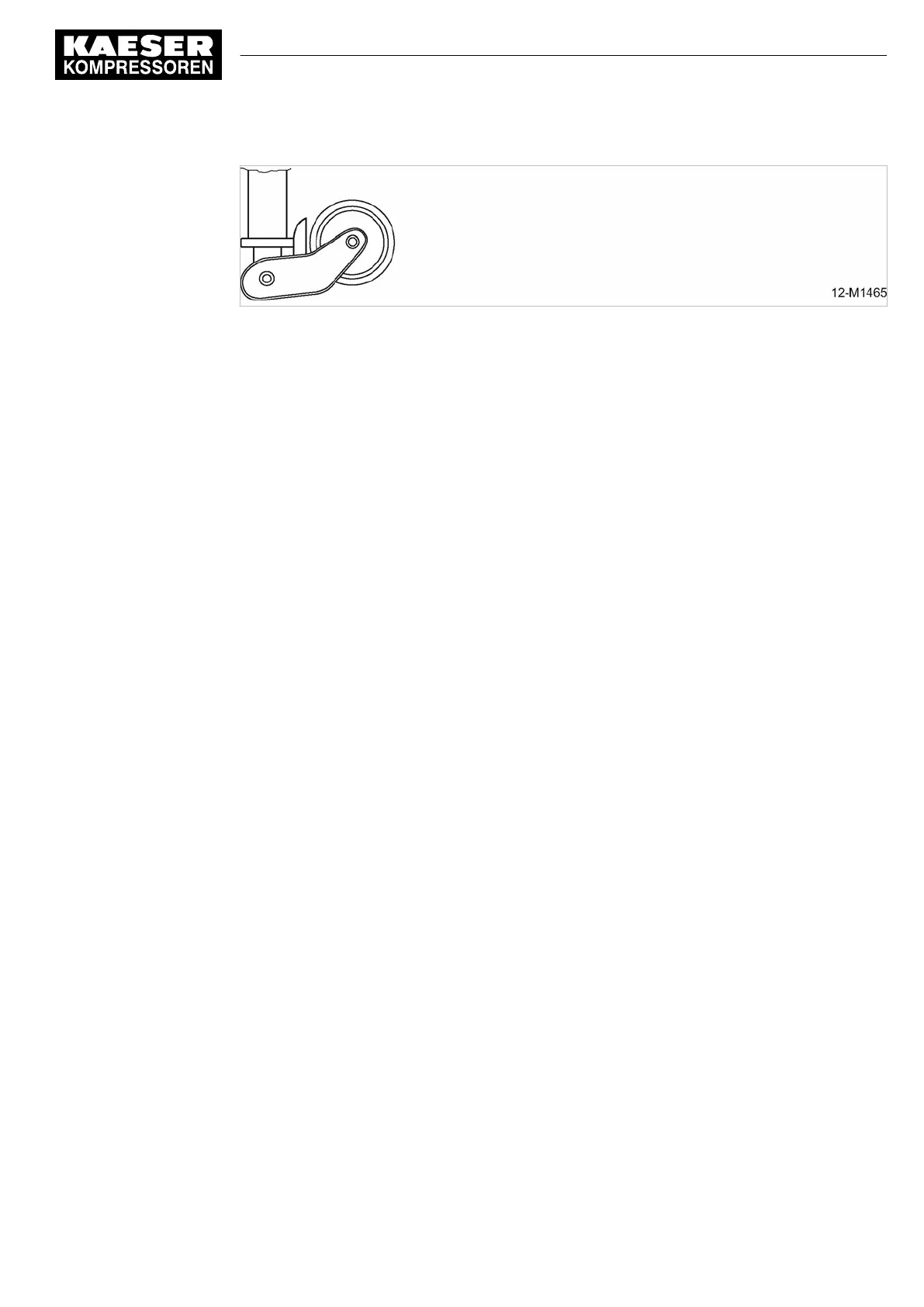

Fig. 98 Automatic jockey wheel in transport position
Preparing the machine for transport (height-adjustable chassis):
1.
Check that the tow bar is adjusted to the correct height. See also chapter 6.4.1.
Check if:
■ The teeth in the tow bar height adjusting joints are fully engaged.
■ The locking levers are tightened
■ The security pin is fully inserted.
2. Wind the jockey wheel to its uppermost position.
The free jockey wheel automatically moves in transport position (see Ill. 98).
3. Check that the wheels are securely fitted and the tires are in good condition.
4. Check the tire pressures.
5. Connect the cable for the lighting and indicator systems and carry out a function check.
6. Release the parking brake:
(see Ill. 97, figure a).
■ Pull the brake lever a little further on and press the release button.
■ Hold the release button in and push the lever down past the dead point zone.
7. Remove the chocks.
Preparing the machine for transport (fixed-height chassis):
1. Wind the jockey wheel to its uppermost position.
The free jockey wheel automatically moves in transport position (see Ill. 98).
2. Check that the wheels are securely fitted and the tires are in good condition.
3. Check the tire pressures.
4. Connect the cable for the lighting and indicator systems and carry out a function check.
5. Release the parking brake:
(see Ill. 97, figure b).
■ Pull the brake lever a little further on and press the release button.
■ Hold in the release button and push the lever fully down.
6. Remove the chocks.
12 Decommissioning, Storage and Transport
12.2 Transport
No.: 9_6999 23 USE
Operator Manual Screw Compressor
M100
235
Option rb/rk/rm/rs,
rb/rl/rm/rs
Option rc/ro/rs

KAESER M100 Specifications

General

Maximum Pressure	10 bar
Sound Power Level	99 dB(A)
Fuel Tank Capacity	150 liters
Working Pressure	7 to 10 bar
Operating Pressure	7 to 10 bar
Engine	Diesel
