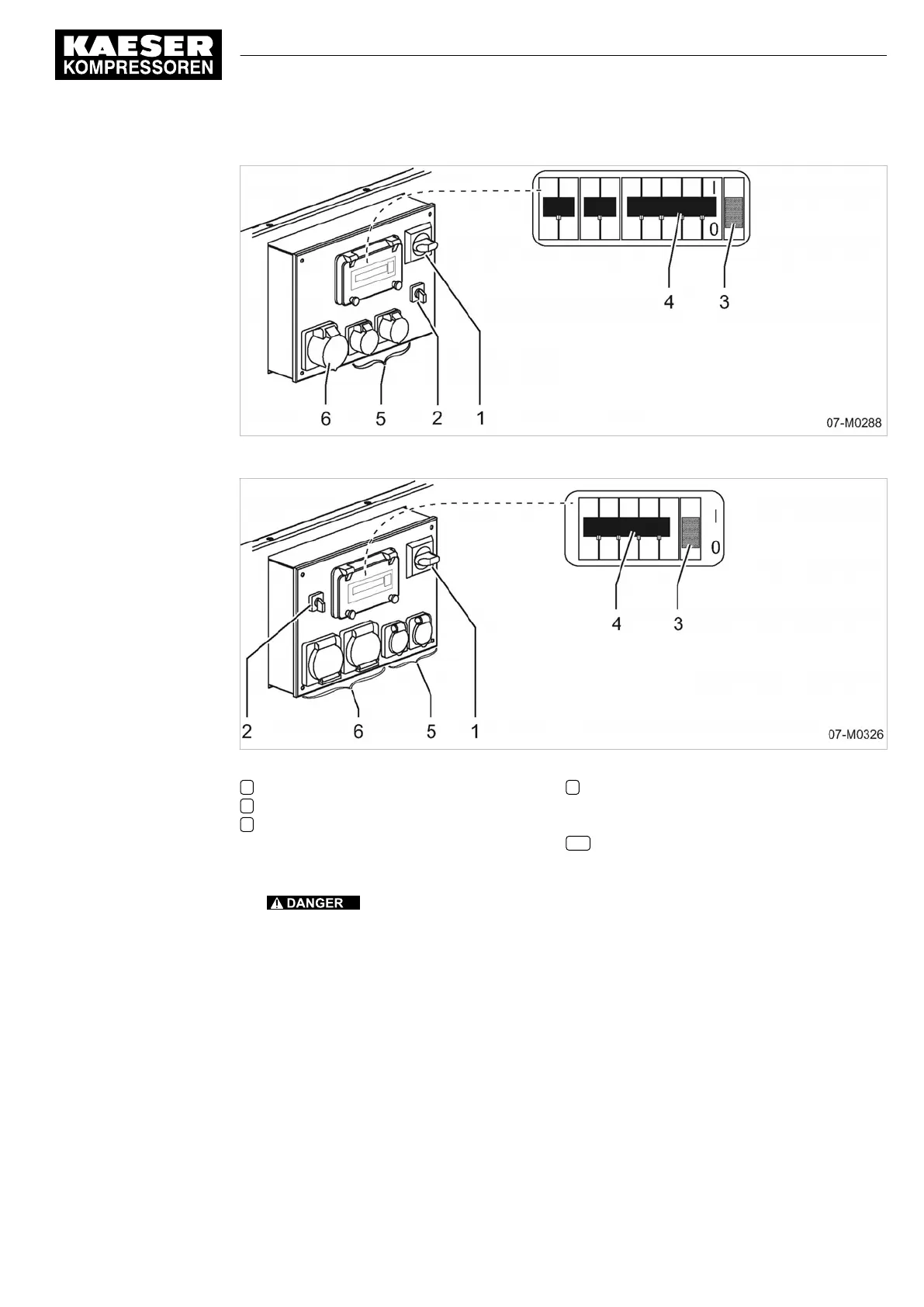

KAESER M100 - Fig. 36 Insulation Monitoring - 115 V, Single-Phase Generator; Fig. 37 Insulation Monitoring - 230 V, Single-Phase Generator

Fig. 36 insulation monitoring - 115 V, single-phase generator
Fig. 37 insulation monitoring - 230 V, single-phase generator
1 «Main switch»
2 «Mode selection switch»
3 Test button «Insulation monitor» with indi‐
cator light for ground short
4 «Main circuit breaker»
(«Circuit breaker» designed as automatic
circuit-breaker with shunt trip)
5/6 AC power sockets
1. Activate the machine.
2.
Danger of fatal injury caused by contact with live components!
➤ The generator may only be used if the «circuit breaker» («main circuit breaker») has trip‐
ped during the test!
7 Initial Start-up
7.5 Activating the generator
No.: 9_6999 23 USE
Operator Manual Screw Compressor
M100
79
