GENERAL ELECTRICAL DATA

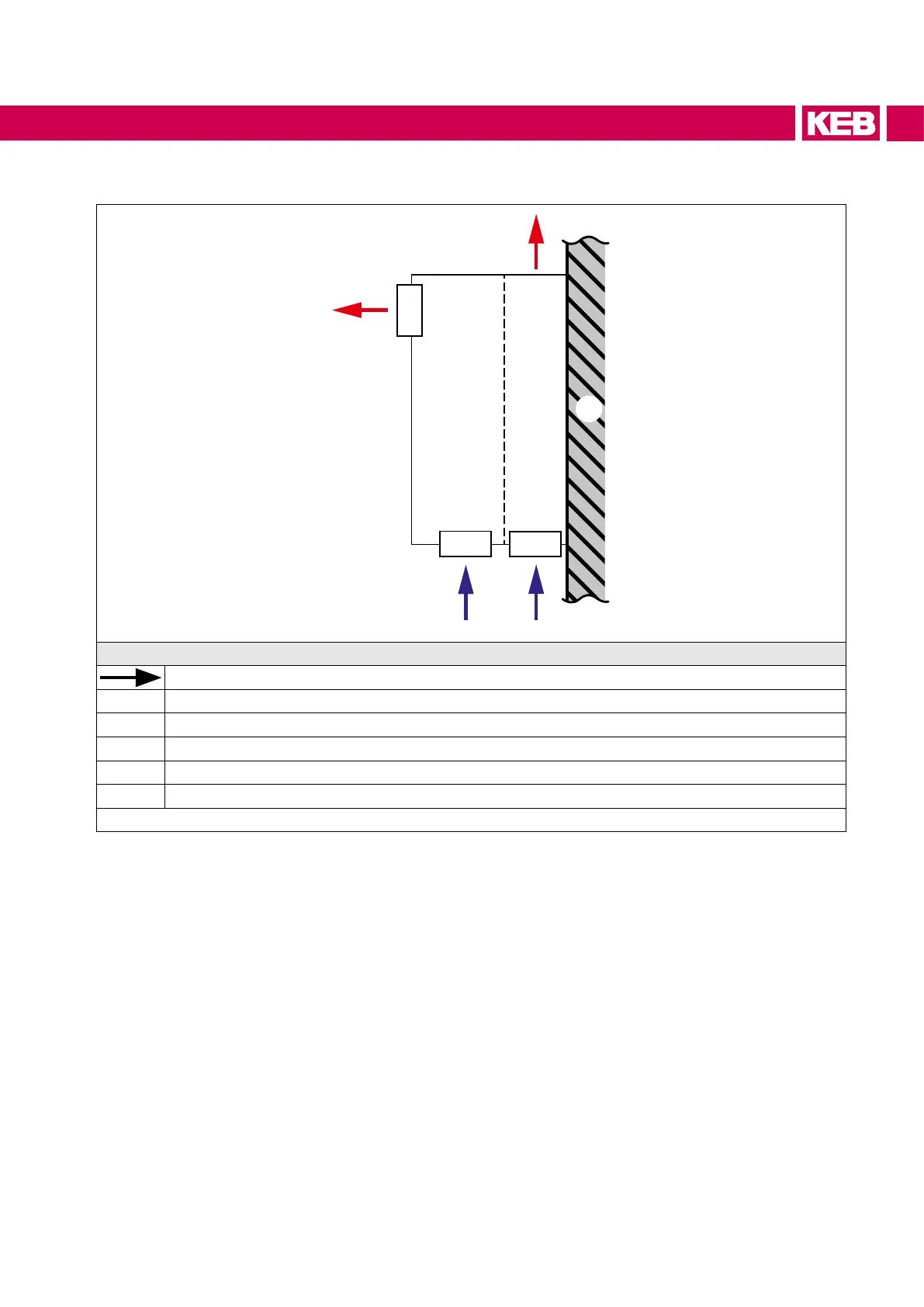

3.3.4.3 Airowofthedriveconverter
③
②
④
①
⑤
⑥
Legend
Airowdirection
①
Interior fan (from housing 4)
②
Drive converter (power unnit and control)
③
Drive converter (heat sink)
④
Interior fan for (housing 2 and 3)
⑤
Heatsink fan
Figure 7: Airow of the drive converter
