5.1.4 Connection of the cooling system
The connection to the cooling system can occur as closed or open cooling circuit. The
connection to a closed cycle cooling circuit is recommended, because the danger of
contamination of coolant is very small. Preferably also a monitoring of the pH value of
the coolant should be installed.
Pay attention to a corresponding conductor cross-section at required equipotential
bonding in order to avoid electro-chemical procedures.
Otherelements in the coolingcircuit suchas pumps,shut-o󰀨valves,ventilation etc.
must be attached according to the cooling system and the local conditions.
①
②
No. Connection Type
①
Forwardow
Open pipe ends for the connection of the cooling system
Pipe diameter outside: 10 mm
②
Returnow

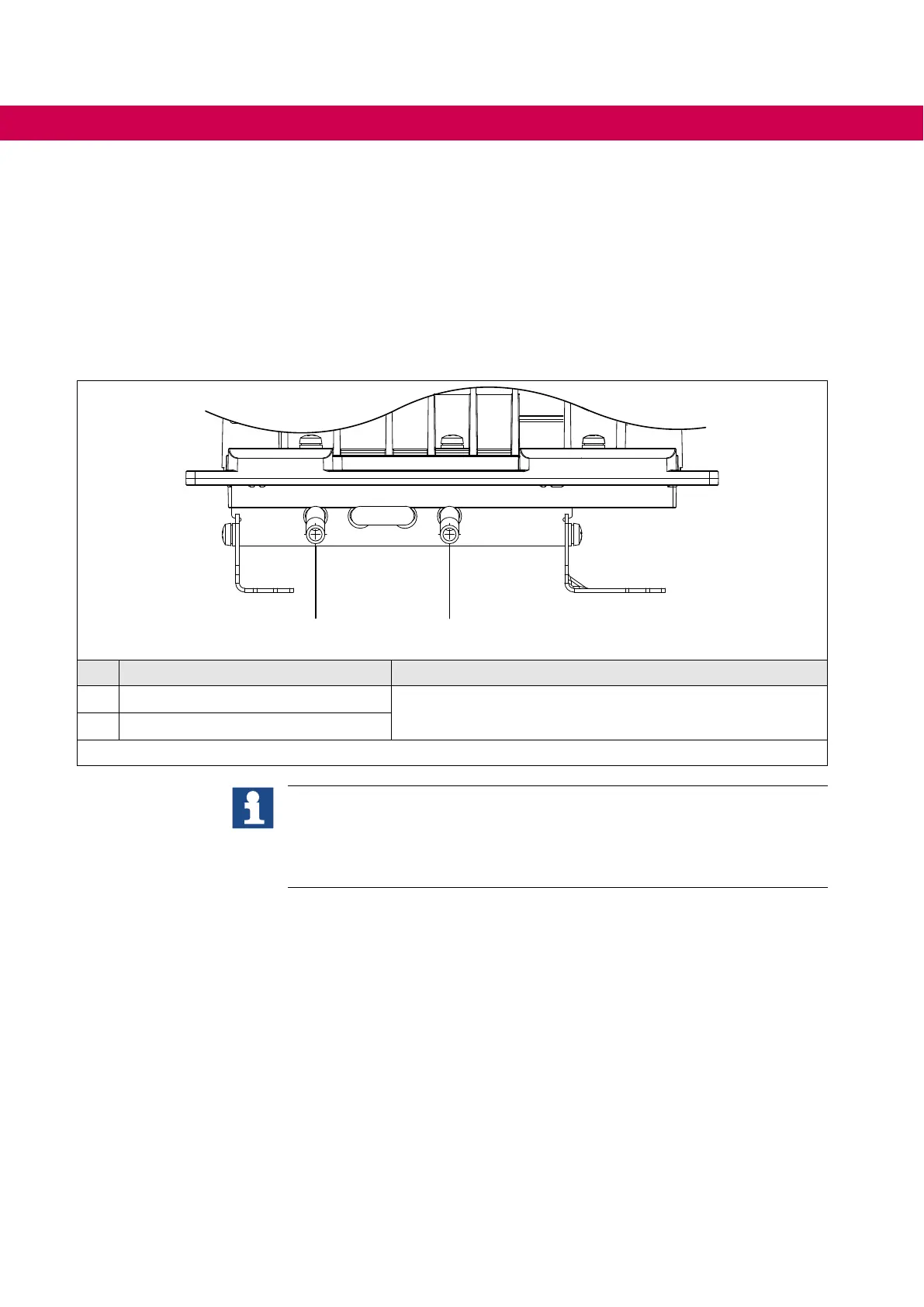

Figure 32: Open pipe ends for the connection of the cooling system for water coolers
For the connection of the cooling system KEB recommends the use of
functional nuts. Suitable functional nuts are listed in the following chapter =>
„4.3.3 Connections to the coolant“.
Inordertomonitorthevolumeowinthecoolingsystem,KEBrecommends
theuseofavolumeowmonitor.
