59
CONNECTION OF THE POWER UNIT
4.2 Connection of the power unit
NOTICE
Destruction of the drive controller!
► Never exchange mains input and motor output !
4.2.1 Connection of the voltage supply
The COMBIVERT F6 housing 6 can be supplied by mains via terminals L1, L2 and L3.
+
-
L1
L2
L3
+

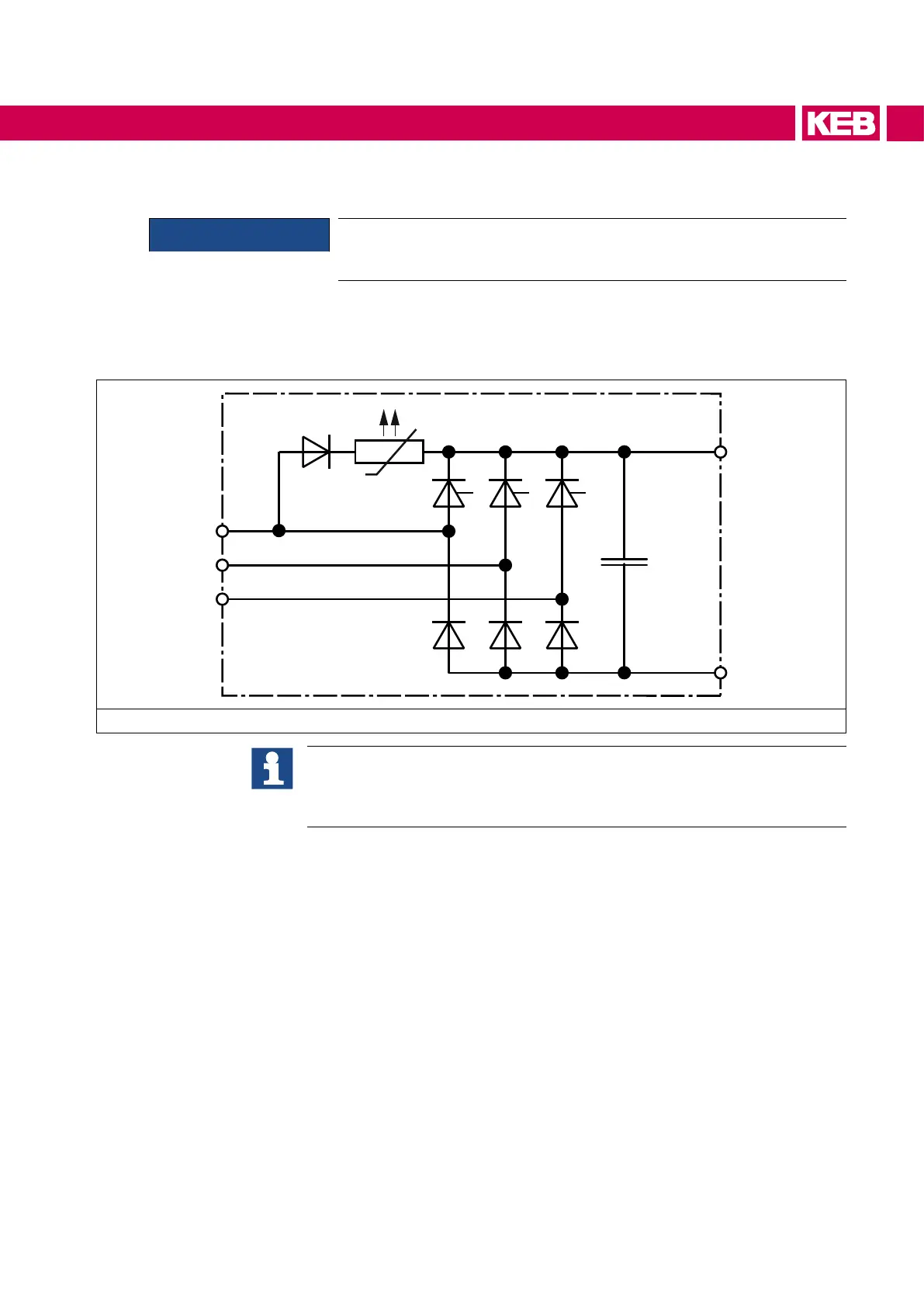

Figure 19: Input circuit
Minimum waiting period between two switch-on procedures 5 minutes!
Cyclicswitchingonandooftheunitleadstotemporaryhighresistanceofthe
resistor (PTC) in the input. After the PTC has cooled down, it can be restarted
without restrictions.
