OIL-COOLED DEVICES
5.2.3 Connection of the oil cooling system
The connection to the oil cooling system can occur as closed or open cooling circuit.
Connection to a closed cooling circuit is recommended, because the risk of oil contam-
ination is very low.
Otherelements in the coolingcircuit suchas pumps,shut-o󰀨valves,ventilation etc.
must be attached according to the cooling system and the local conditions.
①
②
No. Connection Type
①
Forwardow
G 1/2 internal thread
②
Returnow

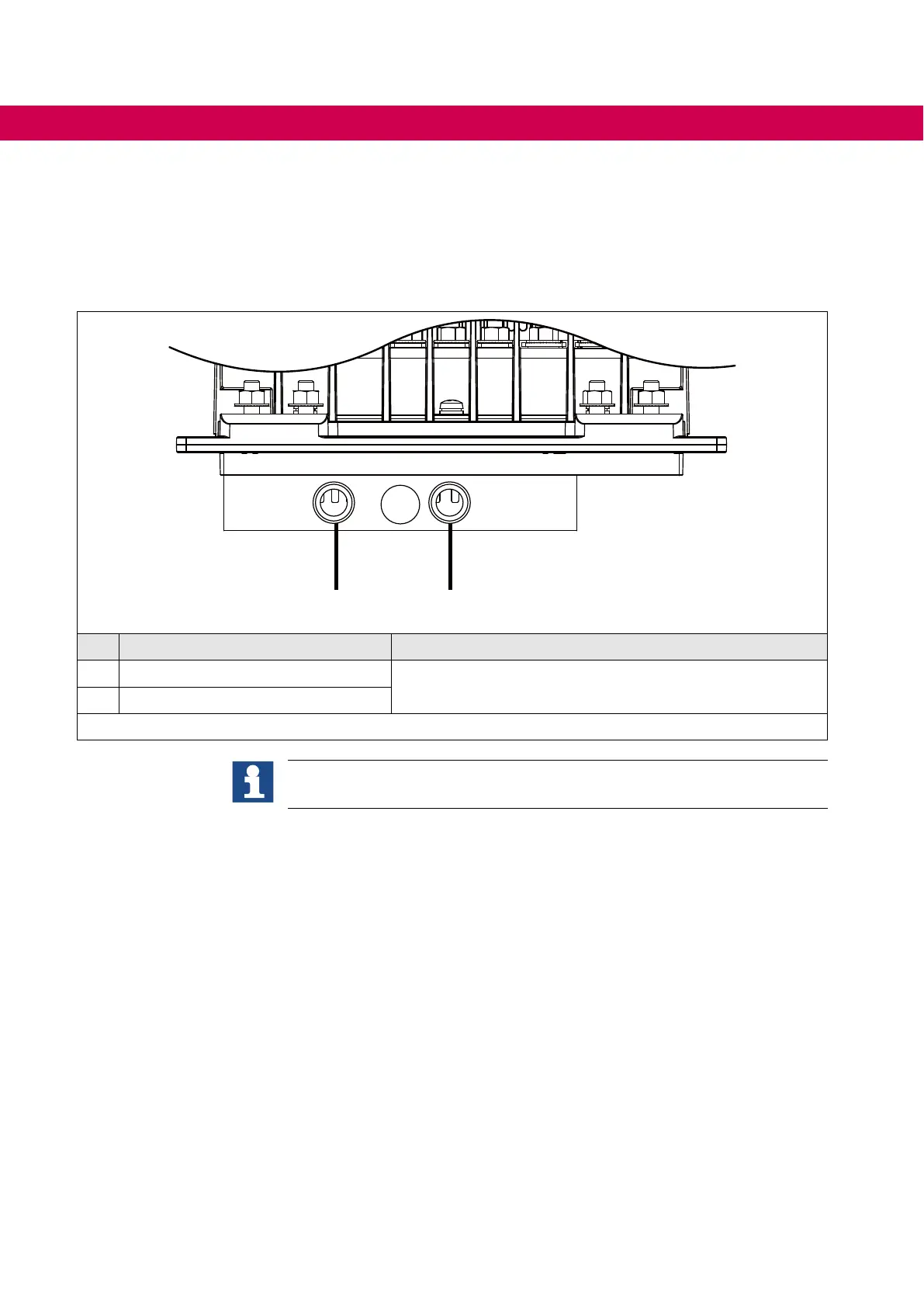

Figure 35: Connection of the oil cooling system
KEBrecommendstheuseofaowswitchinordertomonitortheowinthe
cooling system.
