KEB COMBIVERT F6 Series

49
DIMENSIONS AND WEIGHTS
3.4.2 Built-in version uid cooler (water)
525 500
12,5
(525)
für M8 (4x)
for M8 (4x)
9
(12,5)
13
16
249
236,9
200
(24,5)
Housing 6
Weight
18.1 kg without sub-mounted braking resistors
20 kg without sub-mounted braking resistors
Dimensions All dimensions in mm

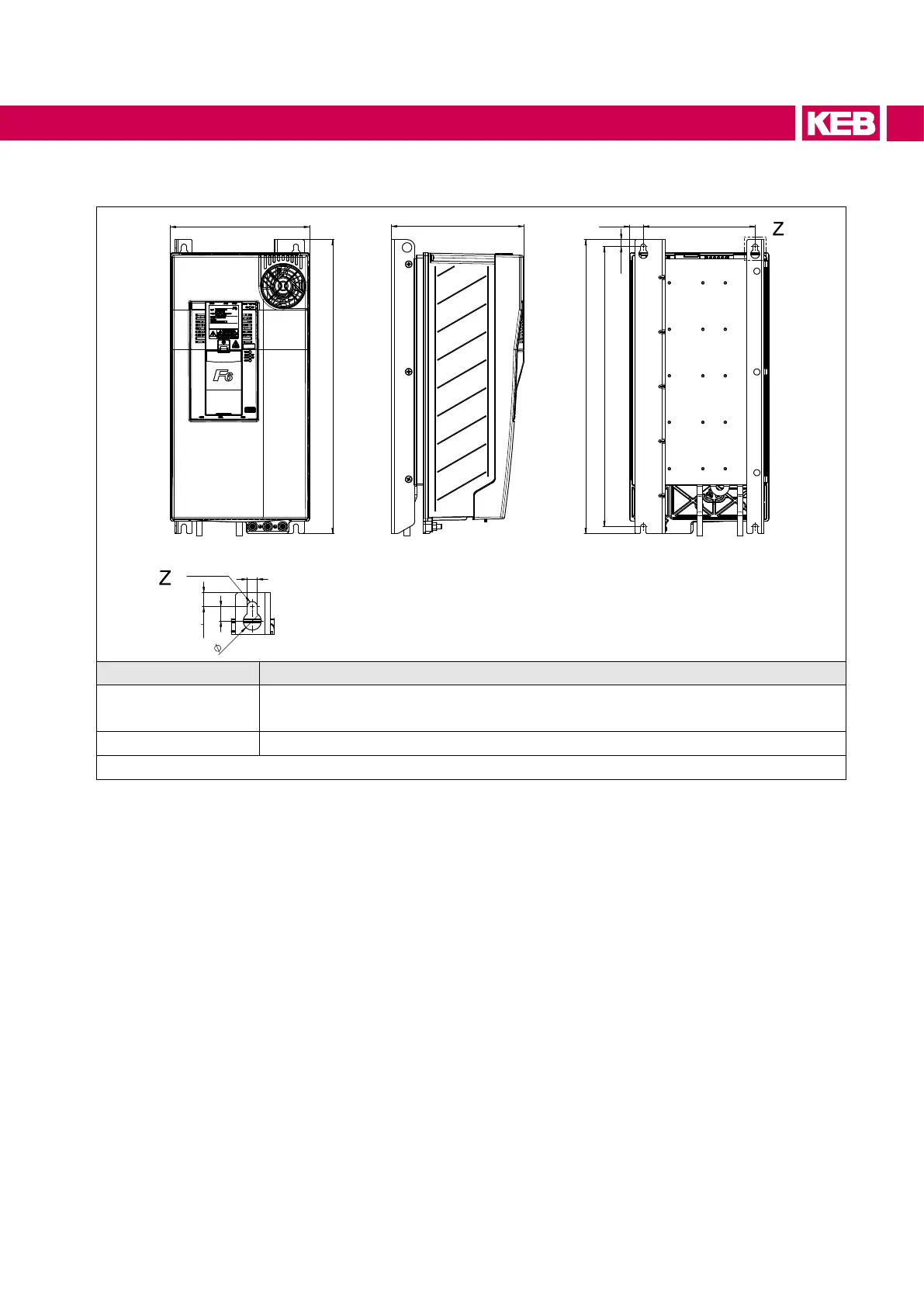

Figure 9: Dimensions built-in version uid cooler (water)
