55
DIMENSIONS AND WEIGHTS
3.4.6.2 Mounting distances
Power dissipation for the control cabinet dimension „3.2.4 Power dissipation at rated oper-
ation“. A lower value can be used here depending on the operating mode/load.
Mounting the drive controller
For reliable operation, the drive controller must be mounted without any dis-
tance on a smooth, closed, metallically bright mounting plate.

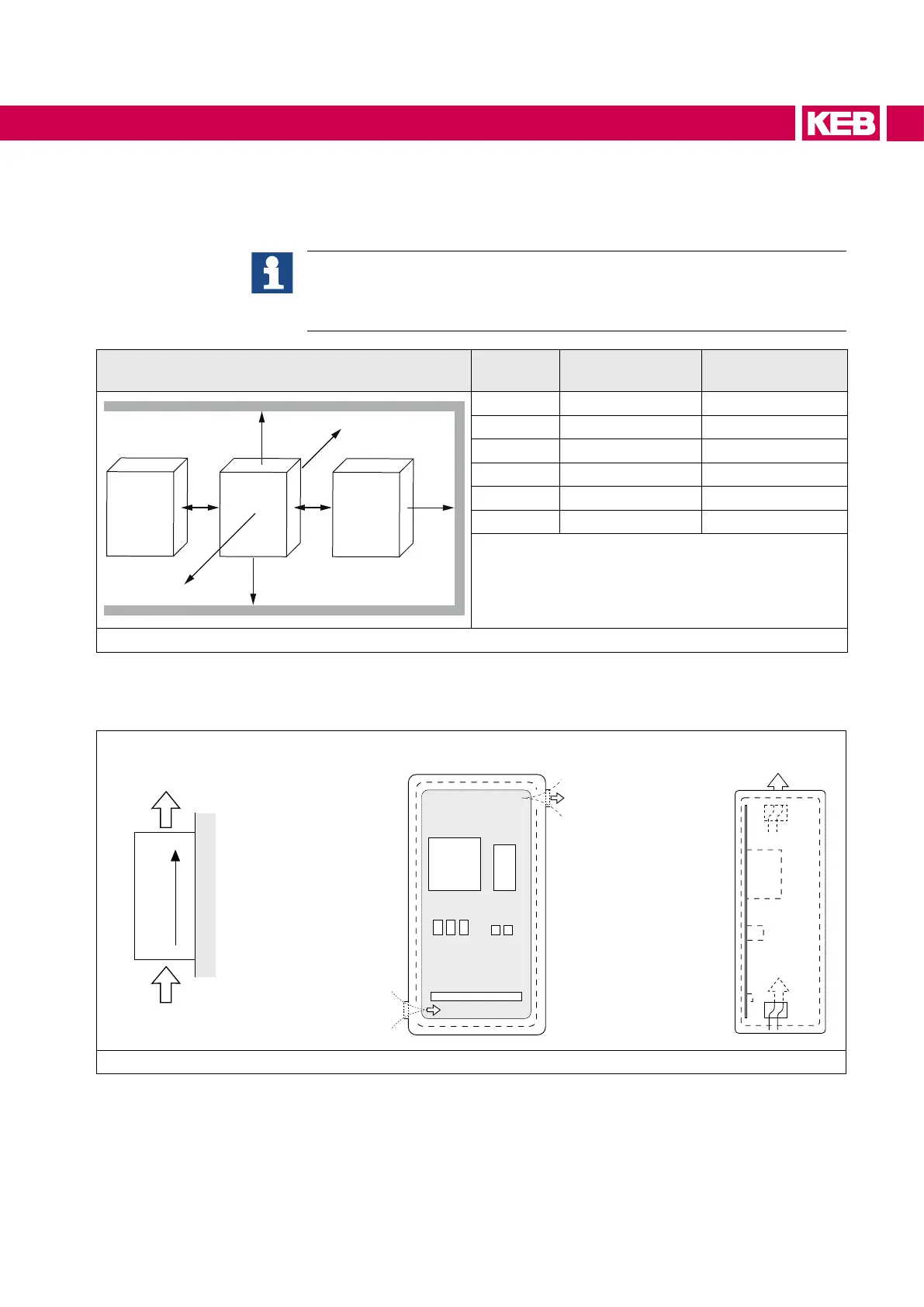

Mounting distances
Dimen-
sion
Distance in mm Distance in inch
A
B
D
E
F
C
D
A 150 6
B 100 4
C 30 1.2
D 0 0
E 0 0
X
1)
50 2
1)
Distance to preceding elements in the control cab-
inet door.
Figure 13: Mounting distances
If construction-conditioned the control cabinet cannot be without indoor ventilation, ap-
propriateltersmustavoidsuctionofforeignobjects.
Direction of the
airow
Front and side view of the coolant inlet
Coolant outlet
Coolant inlet
Figure 14: Control cabinet ventilation
