Keba ServoOne junior - Creating the Transfer Function

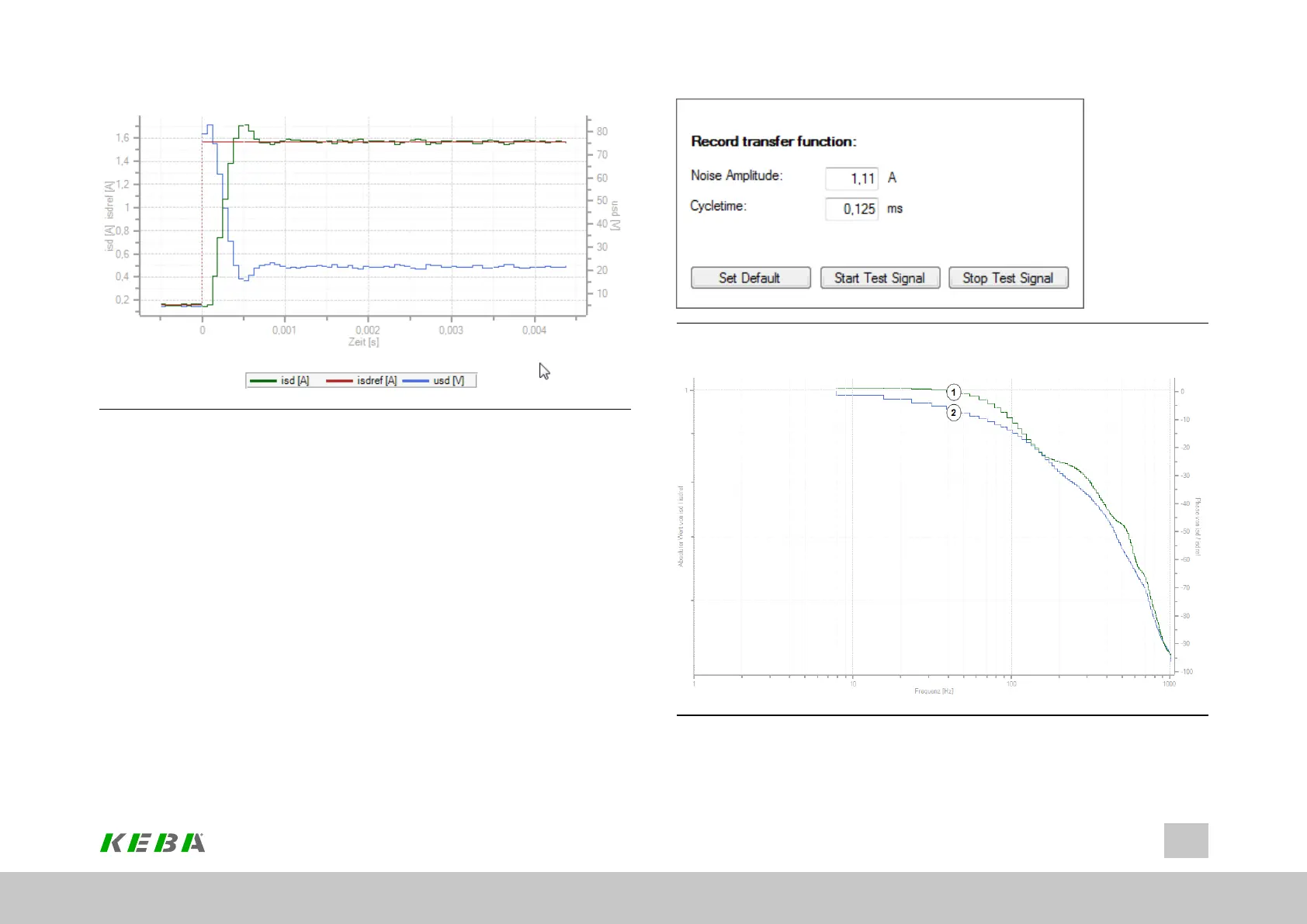

Image 7.6: Current controller optimization
7.3.2Creatingthetransferfunction
The oscilloscope automatically records the amount and phase response of the
controller according to the controller settings. This produces an initial estimate of the
control quality. To determine the transfer function the noise amplitude (motor rated
current) and the sampling time (default 0.125 ms) must be specified. Click the "Start
Test Signal" button.
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
116
7 Control
Image 7.7: “Noise amplitude, sampling time” screen
Image 7.8: Current controller transfer function
