9.2.8Pulsedirection
Pulse direction can be realized using the iPLC or EGEAR (electrical gearing). With
EGEAR, control is carried out in the control mode “Term (1) via terminals” as follows.
Setting the control mode
Setting of the manner in which the control is to be carried out.
Invoke Motion profile -> Basic setting.
Set “Term (1) = set via terminals” under “Control via.” The setting for the reference
under “Reference via” is irrelevant.
Parameter setting for speed/direction
Set parameter P 1400 (MPRO_TP_config) to “PC_PC(4)” (= TP0, pulse counter, TP1,
pulse counter ). The speed, but not the direction, can be changed.
Setting P 1400 (MPRO_TP_config) to “PD_UP(2)” (TP0, TP1 as encoder; pulse (TP0)
/ direction (TP1), count up on direction high) means both the speed and the direction
can be changed. To find out which setting is possible, see the description of the
parameter. Parameter P 1404 (MPRO_TP_Lines) is used to set the resolution
(pulses/revolution).
Setting the digital standard inputs ISD05 and ISD06
ID No.: 0842.26B.5-01Date: 09.2020
ServoOne- Device Help
309
9 Inputs/Outputs settings
The setting can be made in the dialog box I/O configuration -> Dig. inputs.
Set ISD05 and ISD06 to ENC(29) = Encoder (pulse count / pulse direction on ISD05,
ISD06 only).
NOTE
l TheelectricalconnectionismadeviaterminalsX4/20(ISD05)and
X4/21(ISD06).

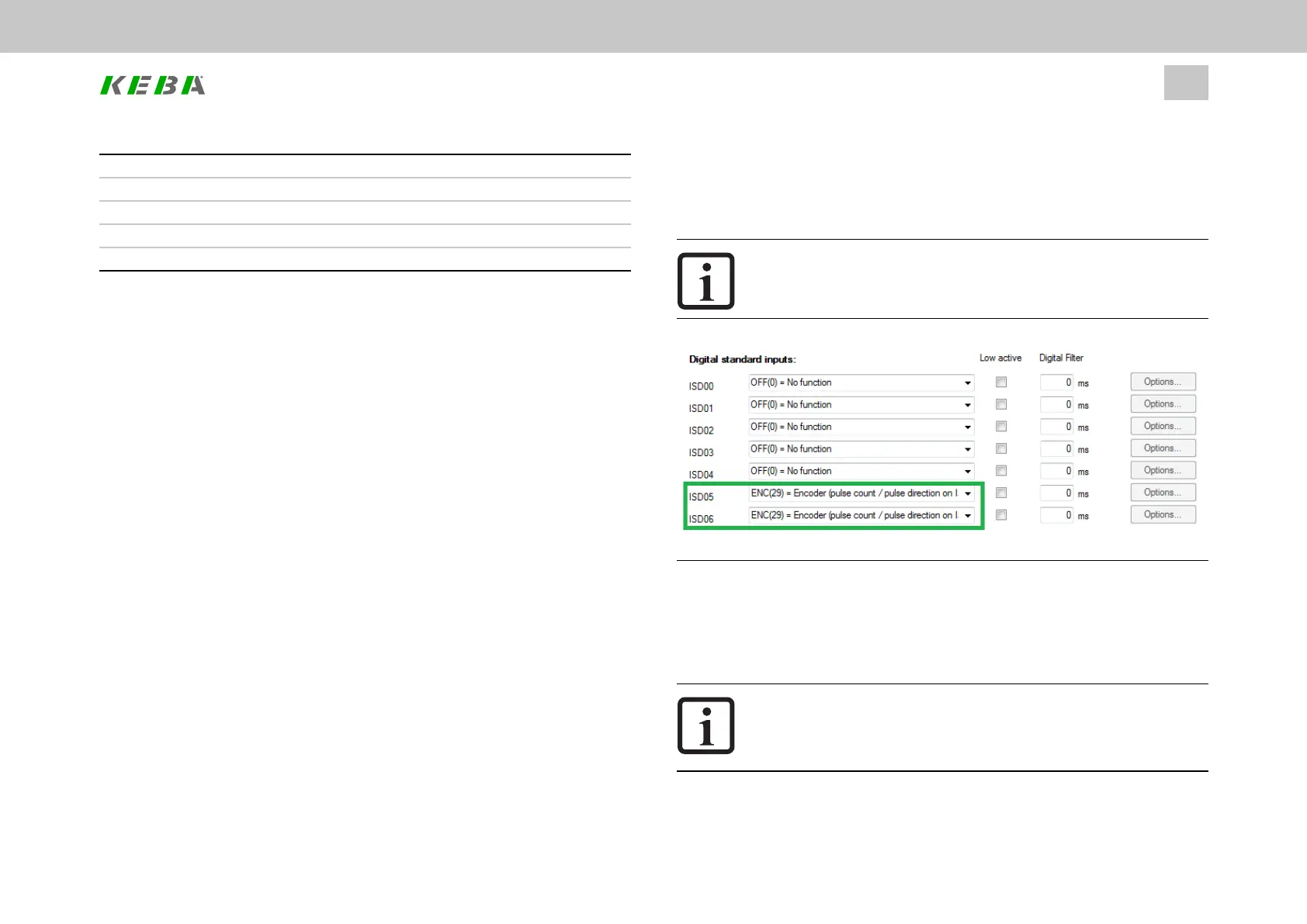

Image 9.5: Digital inputs pulse direction
Setting the electrical gearing (EGEAR)
Invoke Motion profile -> Synchronized motion.
Set the electrical gearing (EGEAR) according to the following figures.
NOTE
l IfP 1404(MPRO_TP_Lines)isnotset[factorysettingis1pulse=
1revolution],thenthegearratioisimportantforthespeedofthe
rotor.
